Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3MPA
Type :
led display connector
Application :
Power
Gender :
Female
Industrial electronics :
accessories
MOQ :
10 pieces
Price :
CN¥20.76/pieces
Description
Products Description
Rj45 Waterproof Connector Shield Rj45 Network Connector 8P Panel Mount Chassis Socket Type Normal and Right Angle
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

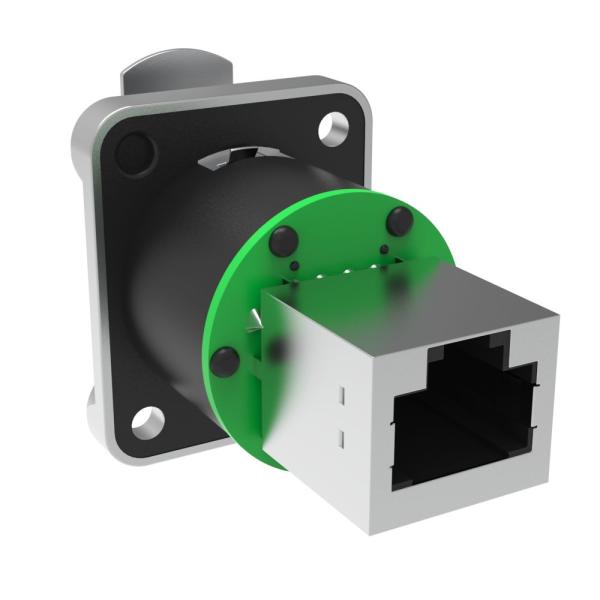

Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector

☑This RJ45 system is suitable for very demanding environments
☑This cable jacket can be matched with most RJ45
☑Cable jacket does not include crystal head
☑Wire diameter range: 5-7mm
☑Rugged die-cast housing and unique line clamp lock card
☑In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
1.Electrical parameters
8Contacts NO.
8
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
>1000MΩ
2.Mechanical parameters
Service life
>1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Application area
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Company Information
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Patent & Certification
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Exhibition activities
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Packaging reference
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
Payment and logistics
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
FAQ
Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
