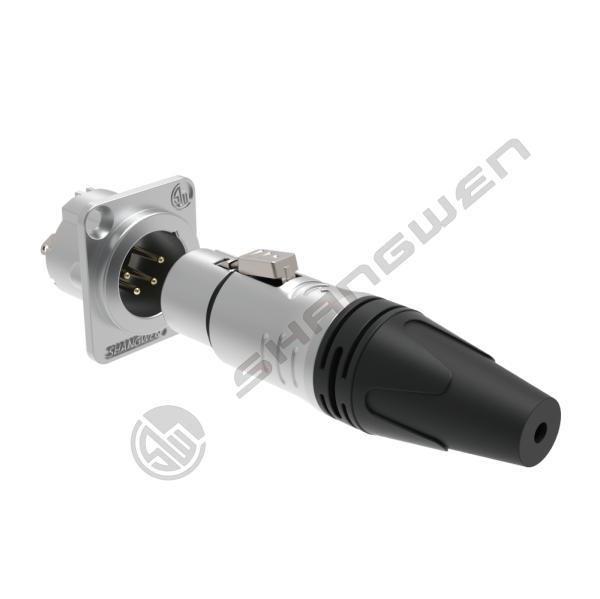

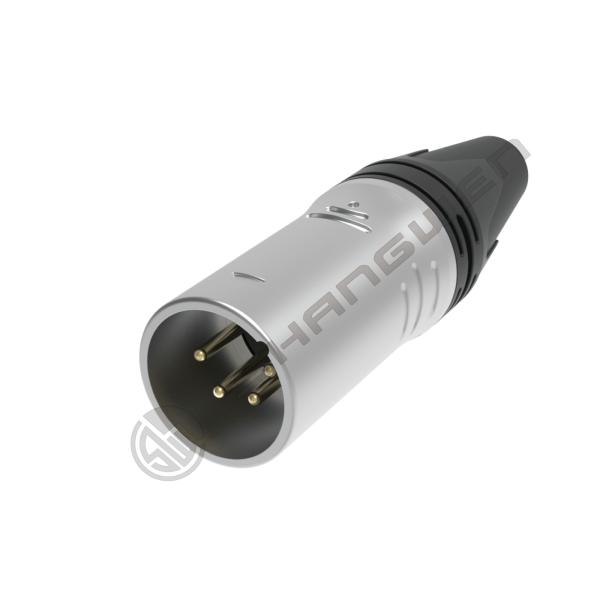

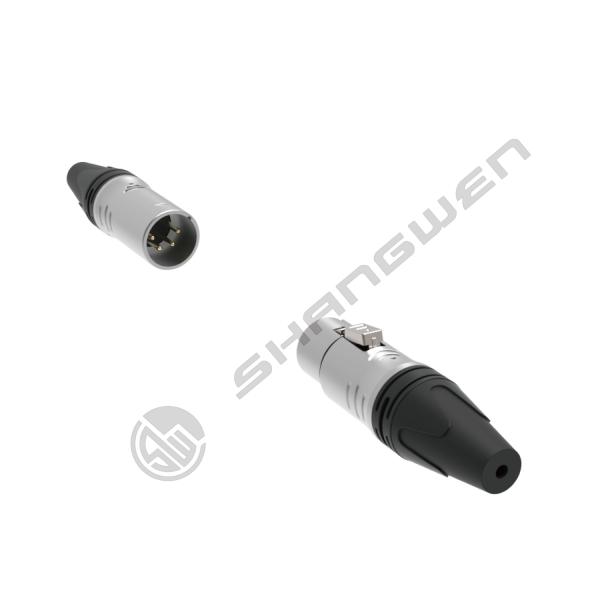

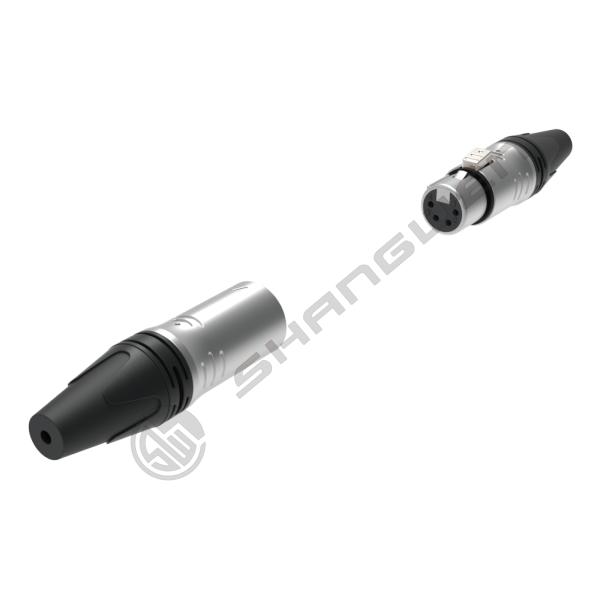

4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Specifications
Place of Origin :
Guangdong, China
IP level :
IP40
Brand Name :
SHANGWEN
Model Number :
SWF4X-3TSN
Type :
XLR connector
Application :
Audio & Video
Gender :
Female
Industrial electronics :
accessories
MOQ :
10 pieces
Price :
CN¥7.62/pieces 10-99 pieces
Description
Products Description
XLR connector-4 pin female plug
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Model：SWF4X-3TBN-KN-B (Black)
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated，the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
＞1000 mating cycles
Wire size
Max. 1.5 mm²
Wire size
Max. 16 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
6.Assembly reference
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Application area
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Company Information
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Patent & Certification
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Exhibition activities
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Packaging reference
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
Payment and logistics
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
FAQ
4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
