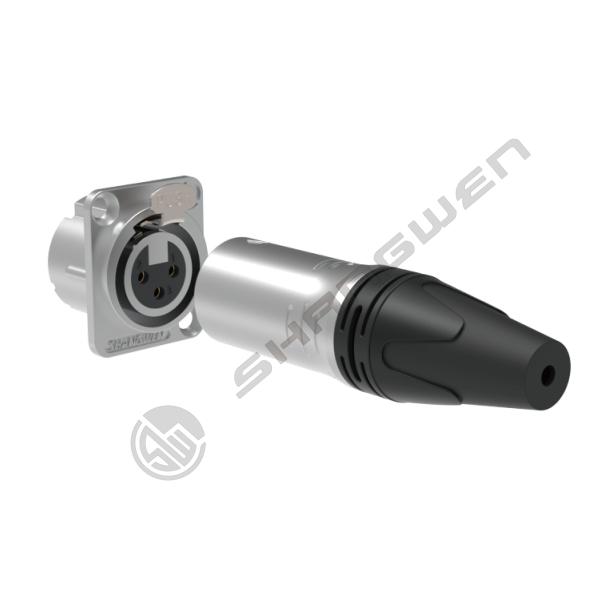

Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Specifications
Rated Current :
10A
Contact Material :
Copper
Place of Origin :
Guangdong, China
IP level :
IP40
Brand Name :
SHANGWEN
Model Number :
SWF3X-3ZSN-KN
Type :
XLR
Application :
Power, Audio & Video
Gender :
Male
Housing Material :
zinc alloy, Copper
Industrial electronics :
accessories
Pins :
3P
Rated voltage :
<50V
Service life :
>1000 mating cycles
MOQ :
10 pieces
Price :
CN¥9.83/pieces 10-99 pieces
Description
Products Description

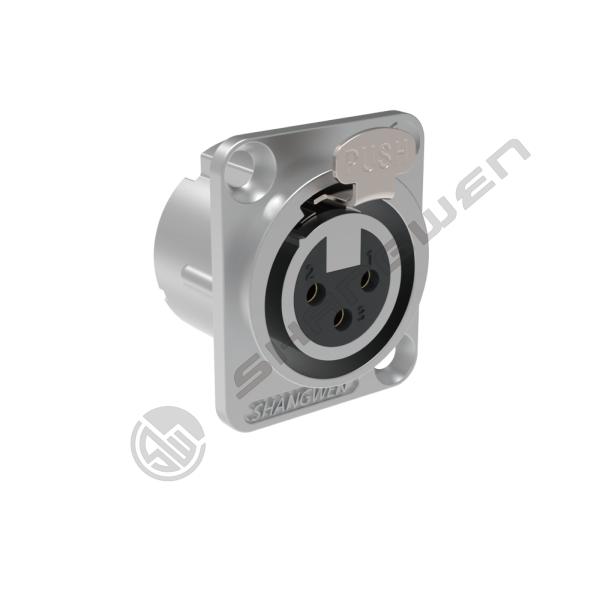

Waterproof XLR connector-3 pin female plug
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Model:
SWF3X-3ZSN-KN (Silver)
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP40
☑Wire diameter range: 5-8mm
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
1.Product parameters
Connection Type
XLR
Gender
female
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
6.Assembly reference
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Application area
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Company Information
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Patent & Certification
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Exhibition activities
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Packaging reference
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
Payment and logistics
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
FAQ
Indoor Waterproof 10A Rated Silver-Plated 3-Pin XLR Female Connector Panel Mount Microphone Adapter Converter for Audio Speaker
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
