Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3FCB-N
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
10
Price :
$1.10 - $2.00/pieces
Type :
led display connector
Name :
Circular Female And Male Connector
Application :
Power
Gender :
Male
Industrial electronics :
accessories
Description

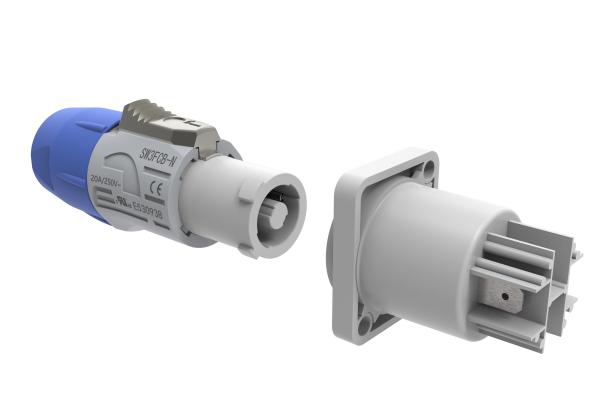

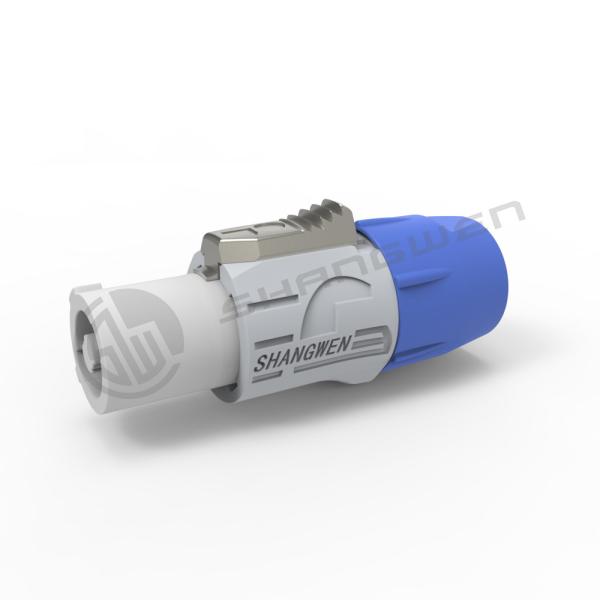

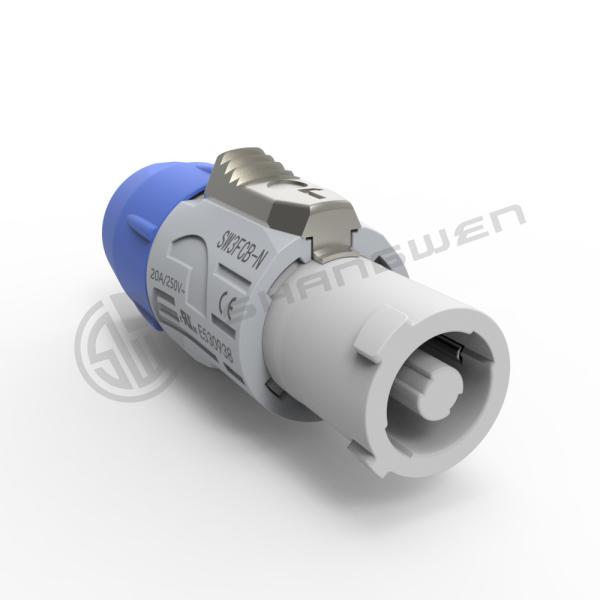

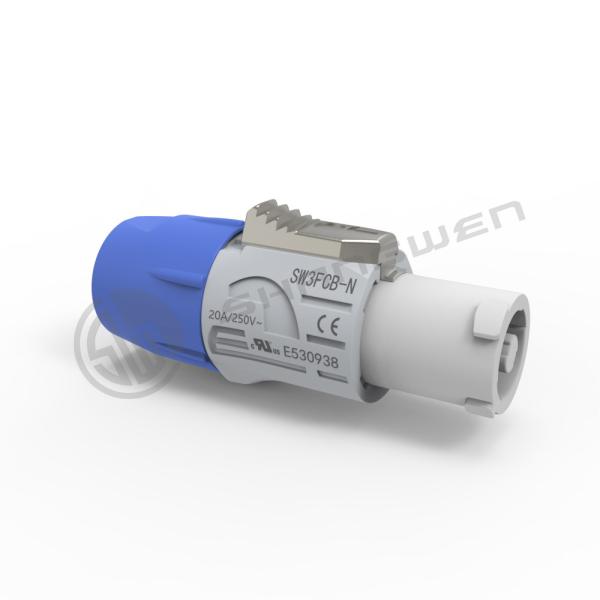

Stable Ip44 Indoor Lockable Triple Core 250V AC Connector Female And Male Connector

Powercon Connector 3 Pin Male Panel Mount Female for Neutrik Power Cable, AC 250V 20A Plug Jack Adapter for Stage Light LED Screen Audio Equipment

Application range:
LED display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.

Products Description

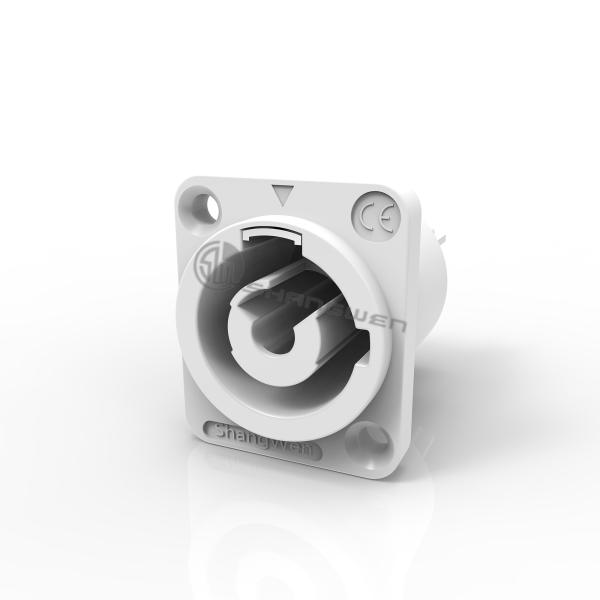

Power connector series-male powercon(output port)
1. Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Stable Circular Female And Male Connector 250V AC Power Connector
5. Installation reference drawing
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Application area
Stable Circular Female And Male Connector 250V AC Power Connector
Company Information
Patent & Certification
Stable Circular Female And Male Connector 250V AC Power Connector
Exhibition activities
Stable Circular Female And Male Connector 250V AC Power Connector
Payment and logistics
Stable Circular Female And Male Connector 250V AC Power Connector
FAQ
Stable Circular Female And Male Connector 250V AC Power Connector
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

3. Do your products come with warranty?
A: Yes,we promise 1-3 year warranty according to different model.
