Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW6AJ-T
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
10
Price :
$1.65 - $2.05/pieces
Name :
IP67 Power Connector Waterproof
Type :
led display connector
Gender :
Male
Industrial electronics :
accessories
Multiple cores :
2,3,4,5,6,9,3+9 pin support
Application :
Power
Features :
Quick, simple self locking system
Description

Outdoor Dustproof Waterproof 7 Pin Power Connector For Audio And Video Connection

Products Description
Power connector series-7 core male powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
Model : SW6AJ-T ( outdoor use )

☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Multi-style inner core design to meet the needs of various industries

☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof PowerconOutdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon

1. Electrical parameters
Contacts NO.
Φ1.0* 6 pin
Rated current
10A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Dielectric strength
1500V AC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
0.5mm²
Wire stripping length
5-7mm
Type of teminals
Soldering
3. Material and environmental parameters
Shell&insulated parts
PBT
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-25°C to +85°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65

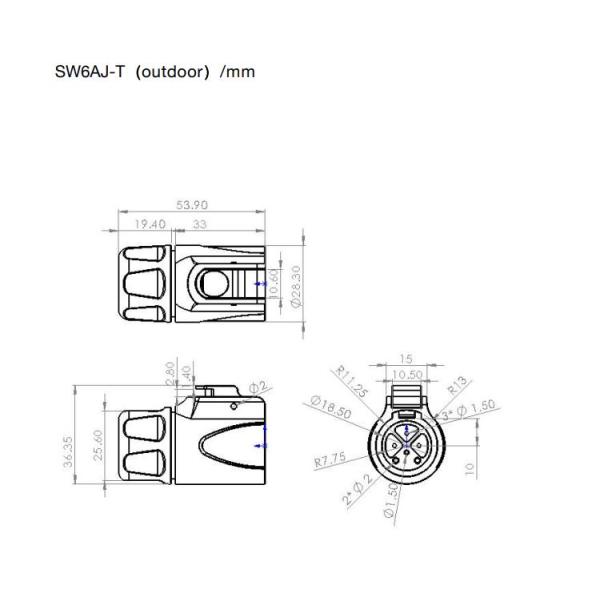

4. Size reference (unit /mm)
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
5. Installation reference drawing
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Application area
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Company Information
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Patent & Certification
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Exhibition activities
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Packaging reference
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
Payment and logistics
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
FAQ
Outdoor 7 Pin IP67 Power Connector Dustproof Waterproof Powercon
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
