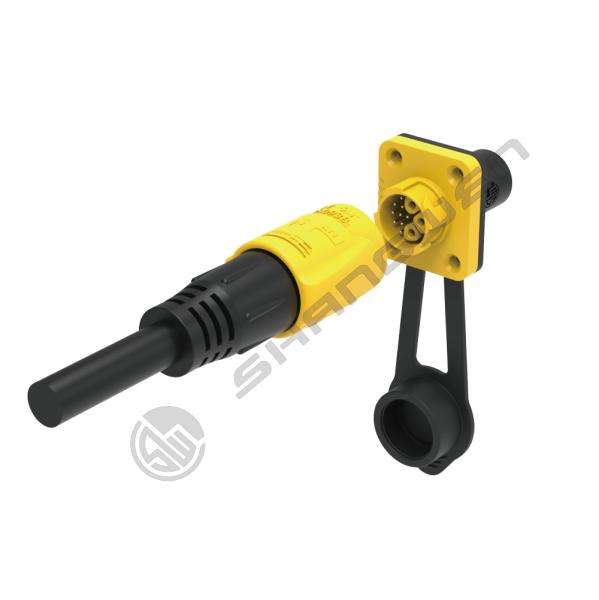

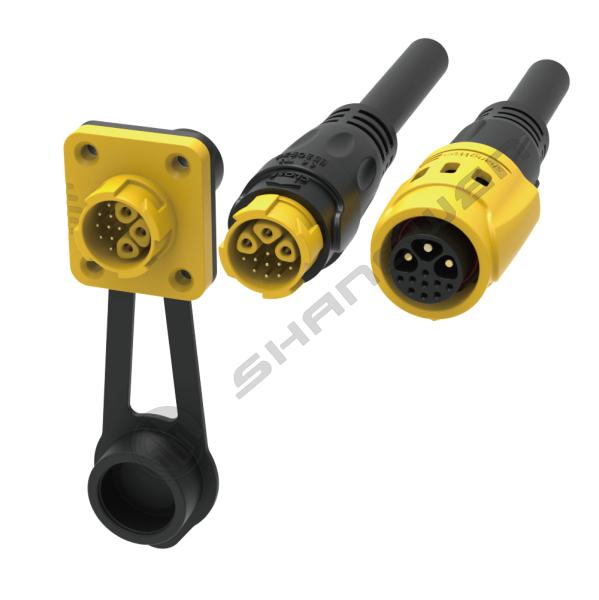

M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW19-12KSFT
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
10
Price :
$2.20/pieces 2-99 pieces
Name :
Waterproof M19 Connector
Type :
SW19 Self-locking series
Gender :
Female
Industrial electronics :
accessories
Features :
Push-pull Self-locking Connection
Application :
Industrial
Multiple Cores :
2,3,4,5,6,9,3+9 pin support
Description

Outdoor Quick Simple Self Locking System 3 Core 9 Pin Industrial Female Connector

M19 Push Locking IP67 Waterproof Connector , Male Female 12 Pin Circular Connector

M19 Waterproof Connector 3+9 Pin Male-Female Bayonet Screw Lock Wire Rear Lock Led Power Connector

Model: SW19-12KSFT (3+9 pin female plug)

☑Small size of product

☑ Contact pin: Screw cable,soldering cup and crimp available

☑ Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

☑ Black,blue,white and yellow color supported

☑ Different cable length could be customized
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

☑Quick, simple self locking system
☑Connect reliably

☑ Advanced structure: Self-locking

Products Description
SW19 Self-locking series-3+9 Pin connector

1. Electrical parameters

Contacts NO.
3+9 pin
Rated current
5A
Rated voltage
60V AC
Withstand voltage
125V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3. Material and environmental parameters
Shell&insulated parts
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ1.0mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃
4. Size reference (unit /mm)
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
5. Operating reference
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Application area
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Company Information
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Patent & Certification
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Exhibition activities
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Packaging reference
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
Payment and logistics
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
FAQ
M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
