Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW8XLB-D
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.70 - $4.10/pieces
Type :
RJ45 socket
Application :
Ethernet
Gender :
Female
Industrial electronics :
accessories
Name :
Ethernet Chassis Connector
Feature :
Waterproof
Description

Single Row Type Panel Mount Socket Outdoor Ethernet 1kv Dc Insulation Strength Ip68 Waterproof RJ45 Connector

Model:SW8XLB-D(outdoor use)
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
☑Can be equipped with SW8MC-03 or any standard RJ45 connector, one-hand operation, one key plug and unplug
☑All-metal housing with waterproof rear end
☑The back-end can be flexibly modified according to actual requirements
☑D style with uniform metal flange, standard D mounting size
☑D style, can be mounted from front or rear panel
*The rear end is single row type, IP65*
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions

Product specifcations:

1: Material comply with RoHs,UL, CE,

2. RJ45 ethernet connector waterproof

3, Waterproof Rating :IP68

4: convenient to use, OEM provided

Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃

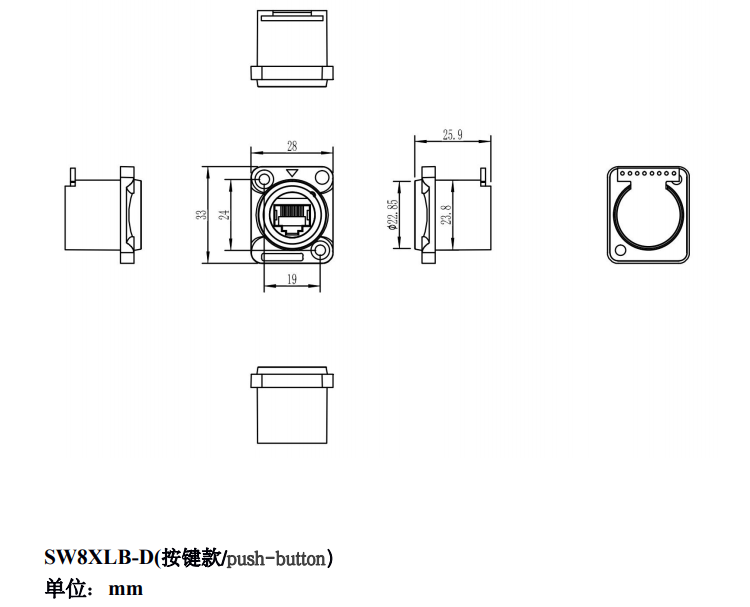

4.Size reference (unit /mm)
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector

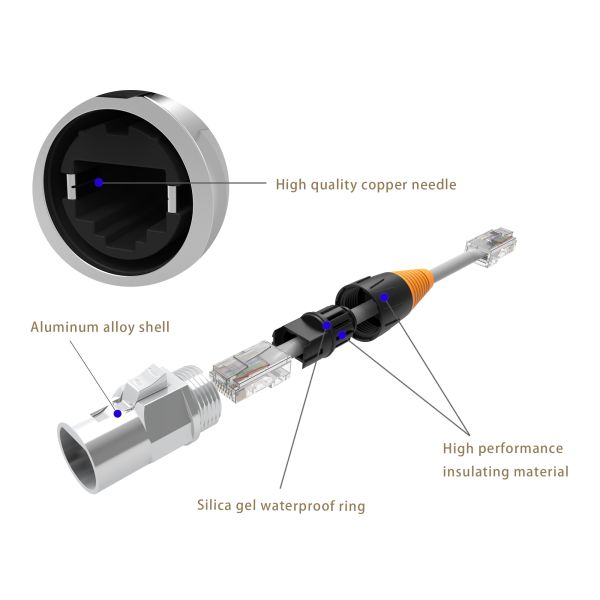

5.Internal structure reference
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector

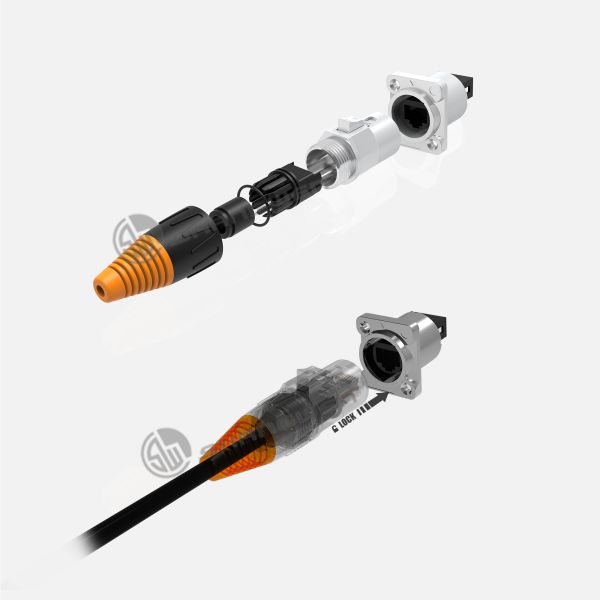

6. Installation instructions with SW8MC-03 plugs
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Application area
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Company Information
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
Patent & Certification
Single Row Panel Mount Ethernet Socket Waterproof IP68 RJ45 Connector
