Waterproof Integrated Solar LED Street Light Energy High Luminance Effect
Waterproof Integrated Solar LED Street Light Energy High Luminance Effect
Specifications
Brand Name :
CLASSIC
Model Number :
JD-S001F
Certification :
EMC TUV ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/A
Supply Ability :
6000pcs/Month
Delivery Time :
15days
Packaging Details :
5 layer cartons
Ip rating :
IP66
Working temperature(℃) :
-55-65
Cri (ra>) :
80
Input voltage(v) :
12V / 24V
Application :
garden
Lamp luminous efficiency(lm/w) :
5800
Working lifetime(hour) :
50017
Item type :
solar Street Lights
Description

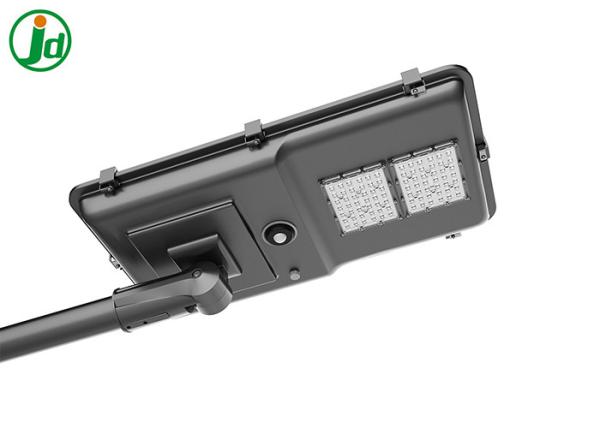

New Design IP66 outdoor waterproof Aluminum 15 30 60 watt Garden Solar led street light


The integrated led street light, which can also be called the all in one solar garden light, combines the high efficient solar panel, Li-battery can be used for 8 years, high brightness leds, intelligent controller, and anti-burglary installation support together. It uses several practical and good control technology, such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free, and the performance of water-proofing and heat dissipation are also perfect.

Features :

Technical Features:

1. Use American brand 3030 led chips and high quality power supply are used, realizing long-term reliable and stable working without failure and maintenance.

2. High luminance effect, realizing energy saving by 70% comparing with traditional light source.

3. Power factor over 95%, harmonic distortion rate less than 15%;

4. Amazingly long lifetime over 50,000 hours, one-time investment, long-time payback;

5. Adopt digital constant-power technology, realizing control of LED power;

6. made by 1070 pure aluminum stamping process, high performance heat dissipation and low cost.

7. Stable LED working point, low temperature rise, low brightness decline.

AFTER SALES SERVICES:
♥ Terrific after-sales service: 24 hours around the clock & 3years warranty

♥ Life-long maintenance service for the product

♥ For problematic items, We are ready to exchange them or replace them with an equivalent upon our receipt of previous.

♥ For all your inquiries, please contact us immediately, We will reply you as soon as possible.


Certificate :
CE EMC LVD IK08

IEC 60598-2-3: Luminaires – Particular requirements - Luminaires for road and street lighting.
IEC 60529 :Degrees of protection provided by enclosures (IP 66) .
IEC 62262 :Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK08) .

Solar Light Can Widely Application :
Courtyard/Garden/ Park/Street/Roadway/pathway/Parking Lot/Private road/Sidewalk/Public square/ plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/ Wildlife area/Remote Area/Military Base


Specification :

Model JD-SL001A 10W JD-SL001B 15W JD-SL001C 20W JD-SL001D 25W JD-SL001E 30W JD-SL001F 40W JD-SL001G 50W JD-SL001H 60W
Wattage 10W 15W 20W 25W 30W 40W 50W 60W
Beam Angle 150*50/120*120
Luminous Flux 3900lm 4800lm 6500lm 7800lm 9100lm 13000 15600lm 19500lm
Color Temperature 2700K~6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
LED Chip 3030
CRI Ra>80
PF >0.92
Surge Voltage 10V/20KV
IP Rating IP66
Dimension 573*245*120MM 717*320*130MM 867*392*159MM

Product Details :
Waterproof Integrated Solar LED Street Light Energy High Luminance Effect
Product dimension:
Waterproof Integrated Solar LED Street Light Energy High Luminance Effect





Waterproof Integrated Solar LED Street Light Energy High Luminance Effect
​
