EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing
EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing
Specifications
Brand Name :
JD
Model Number :
JD-1043A
Certification :
CE.CB.EMC.LVD
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000pcs/Month
Delivery Time :
15-30days
Packaging Details :
5 layer cartons
Material :
ADC12 aluminum
Color :
grey/dark grey/black
Ip rating :
IP66
Working temperature(℃) :
-45-50
Cri (ra>) :
75
Input voltage(v) :
100-277VAC
Application :
Roadway,outdoor,garden
Lamp luminous efficiency(lm/w) :
110
Warranty(year) :
5
Working lifetime(hour) :
50006
Description

EMC LVD 30W high lumen led street lights Aluminum die casting​

Specification :
1 . Wide power range: 30W.60W.100W

2 . Special circuit design, single LED's damage won't affect others' normal work

3 . Modular design for easy installation, replacement and maintenance.

4 . High Lumen output up to 110lm/w with high quality LED chips

5 . Pass the 1000 hour salt spray test

6 . Vertical installation both available, adjustable by ±15°in both directions.

7 . Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

8 . Designed to last at least 100,000 hours at L70

9 . Multiple lighting distributions available

10 . CB/ CE/ IK08 /IP66 /LM79

11 . 5 years limited warranty available.

Features :

* Suitable to diameter 76mm pole
* High brightness LED chips 100lm/w
* Dusk to dawn Photocell function available
* 0-10V Dimmable/DALI/PMMA available
* CE/ROHS/LM79/LM80 for quality assurance and safety operation
* IES files are available
* 5 years warranty

* IP66 waterproof rating
* Different type lens for choice
* Working environment in -40℃to 55℃

Specification :

Model JD-1043A 30W JD-1043B 60W JD-1043C 100W
Wattage 30W 60W 100W
Beam Angle 150*90
Luminous Flux 3000lm 6000lm 10000lm
Color Temperature 2700K~6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
LED Chip led/CREE CTE
CRI Ra>80
PF >0.92
Surge Voltage 10V/20KV
IP Rating IP66
Dimension 743*516*122MM

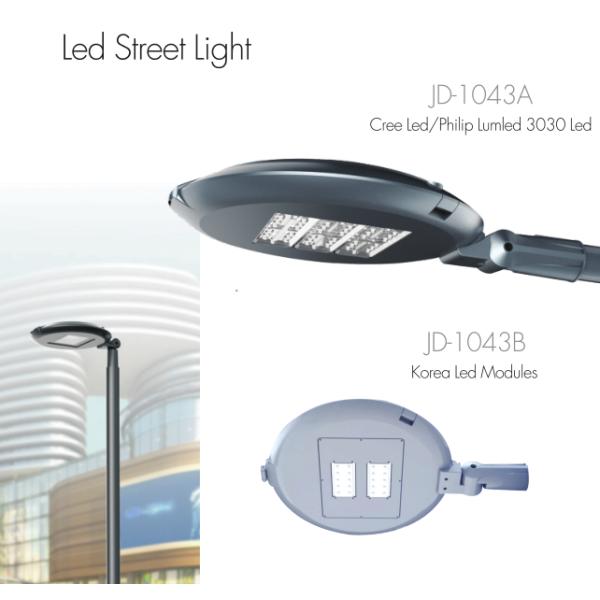

Product Details :
EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing

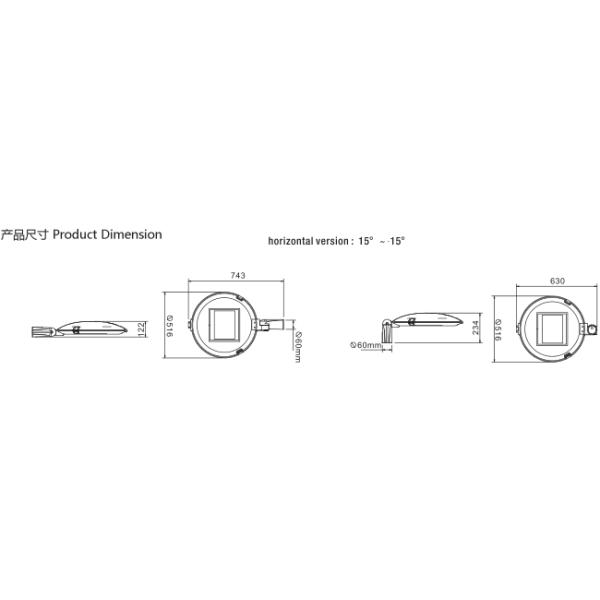

Product dimension:

EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing

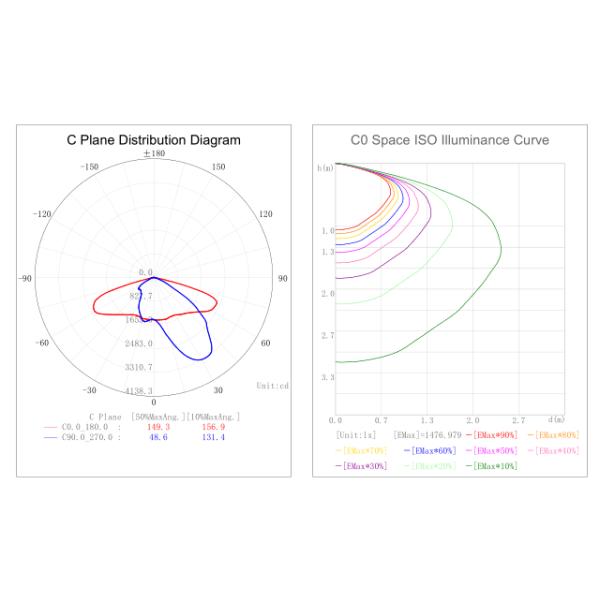

Product distribution curve :

EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing

EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing

​
