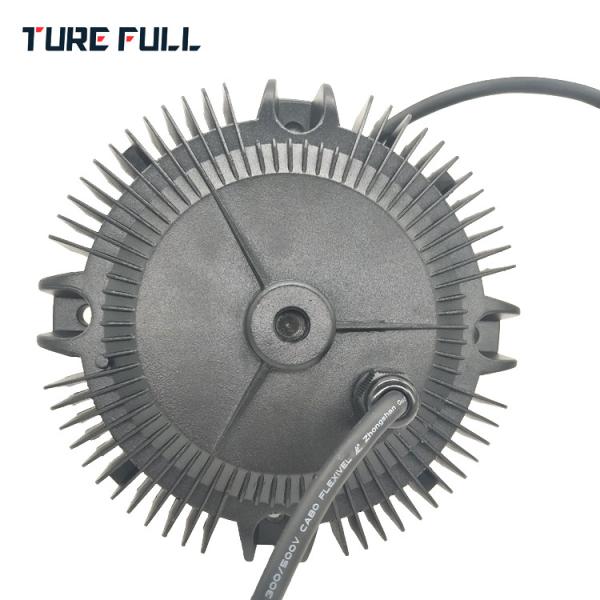

Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing
Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing
Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing
Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HBG-240
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
Use carton box,if you required,we could use wooden case
MOQ :
1 Pieces
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-10 work days
Output Power :
240W
Input Voltage :
Other
Output Voltage :
36V
Output Frequency :
47-63HZ
Output Current :
5.5A
Application :
LED Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
90%
Housing :
Full Aluminum
Capacitor :
Rubycon/king-box
Size :
191.15*69mm
Description
5 years warranty good quality round shape 240W LED power supply

Features


1. constant current Mode

2. Efficiency could be 90%,PFC>.95

3. IP67 waterproof grade,can be used indoor or outdoor soloution

4. protection design:short-circuit protection,over-current protection,over-voltage protection.

5. can be sued on highbay lighting,street lighting

6. 5 years warraty

Parameters

Model No. ZF-HBG-240-36 ZF-HBG-240-48 ZF-HBG-240-60 ZF-HBG-240-72
DC voltage 28-36V 36-48V 48-60V 60-72V
DC current 8.8-6.6A 6.6-5A 5-4A 4-3.30A
Rated power 240W 240W 240W 240W
Ripple current 600mA Max 500mA Max 400mAx 300mAx
Current Accuracy +/-3%
AC voltage 90-277V
Frequency 47-63HZ
PFC PF>0.99 at 100Vac & full load PF>0.97 at 230Vac & full load
Efficiency 91% 92% 92% 93%
input current 2.8A Max @100-277Vac &full load
surge current 277Vac input MAX 160A
output over-voltage protection >45V >60V >80V >110
OTP when TC reach to 90 degree +/-5 degree, output current decline and protect model.when solution is relieve,the product recover output
working temperature -40 degree --+60 degree
working humidity 0-95% RH
IP grage IP67
MTPF at least 50,000hours @45 degree
Certificate CE,ROHS,TUV,SAA,FCC
Size 191*71.5mm

Product

Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing

production process

Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing

Packing

Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing

Packaging & Shipping

Portable Round LED Driver 240W LED Power Supply Full Aluminum Housing

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

3. What's the lead time for regular order?

3-5 days for order quantity lower than 100pc; For more quantity, usually 10 days.

4. Can I get a discount?

Yes, for the order quantity more than 500 pcs, please contact us to get the best price.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
