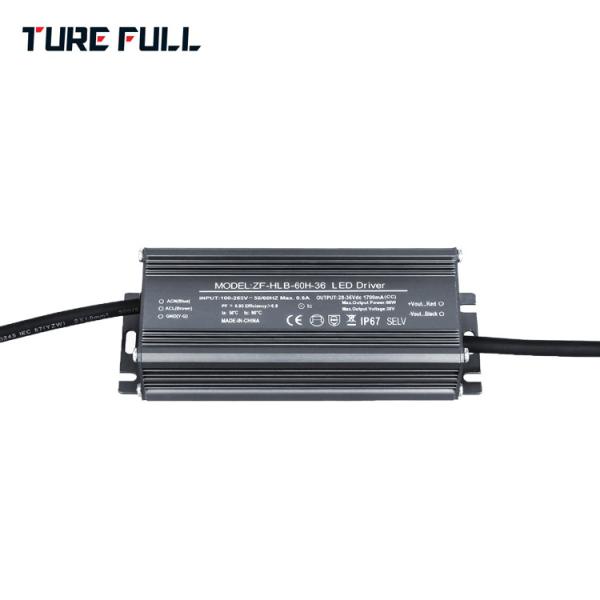

Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-60W-XL
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,50 piece in one carton box
MOQ :
1 Pieces
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-10 work days
Output Power :
60W
Output Type :
Single
Output Voltage :
36V
Output Current :
1.6
Application :
LED Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Housing :
Full Aluminum
Capacitor :
Rubycon/king-box
Size :
130*45*33mm
Description
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver

Features

1. Universal input voltage(90-277V)

2. Output current and voltage can be customized

3. Support(1-10V/Pwm/resistance three-in-one online dimming

4. high PFC,low ripple

5. high efficiency(up to 93%)

6. protection design:OVP/OCP/SCP/OTP)

7. 5 years warranty

Parameters

ModelZF-HLB-60-36ZF-HLB-60-42ZF-HLB-60-48ZF-HLB-60-54Customized

output

No load voltage37VDC43VDC49VDC55VDC/
output current1.68A1.45A1.28A1.12A/
output power62W62W62W62W62W
Ripple&noise300mV300mV300mV300mV300mV
Output voltage range25-36VDC25-42VDC25-48VDC38-54VDC/
Efficiency≥86%≥86%≥87%≥88%≥88%
Current Error±2%±2%±2%±2%±2%
Line regulation±2%±2%±2%±2%±2%
Load regulation±2%±2%±2%±2%±2%
Setup,rise time500ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time16ms / 115VAC, 230VAC

Input

Input voltage90-277V
Frequency range47-63HZ
Power factoryPF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortionTHD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current0.8A / 115VAC 0.45A / 230VAC 0.35A / 277VAC
Inrush currentCOLD START 55A(t width=265μs measured at 50% I peak) at 230VAC; Per NEMA 410
Leakage current<0.75mA / 277VAC

Protection

Over currentConstant current limiting, recovers automatically after fault condition is removed
Short circuitHiccup mode, recovers automatically after fault condition is removed
Over temperatureShut down o/p voltage, re-power on to recover

Environmental

Working Temp.T case= -40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp.T case= +80℃
Working Humidity20 ~ 95% RH non-condensing
Temp.coefficient±0.03%/℃(0 ~ 60℃)
Vibration10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Product Dimensions

Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
Adjustable led driver 60W constant current 36v led converter 1800mA high power driver

production processing

Adjustable led driver 60W constant current 36v led converter 1800mA high power driver

Packaging & Shipping

Adjustable led driver 60W constant current 36v led converter 1800mA high power driver
