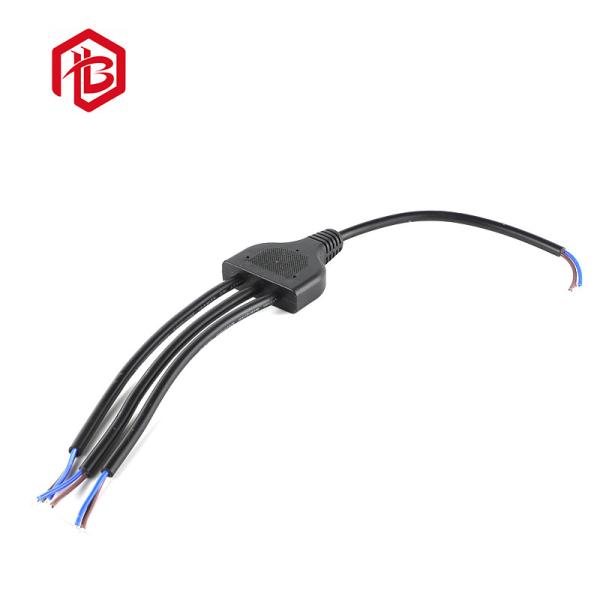

Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
Specifications
Brand Name :
BETT
Model Number :
Y type connecctor
Certification :
UL，CCC，ROHS，CE，
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, L/C
Supply Ability :
1000/Day
Delivery Time :
3-7 Work days
Packaging Details :
Standard Export Carton
Pin :
2pin-4pin
Connector type :
Y Shape Led Strip Cable Connector
Current rating :
20A
Voltage rating :
220Volt
Protection level :
IP67
Keywords :
Led Strip lighting Cable Connector
Description

Male Female Y Shaped 20AWG Watertight Cable Connector 1 In 3 Out

Y Shaped Outdoor Waterproof Connectors With 1 In 3 Out Male Female Connector

Detailed Product Description

Protection Level: IP67 Product detail: Y Shaped Outdoor Waterproof Connectors
Pin: 2 to 4 pole Fuction: Outdoor Power Connection
cable lenght: customized Voltage Rating: 220V

Features

1. Y shaped waterproof connectors

2. Multicore: 2,3,4 pin available

3. Connection method: push locking

4. Dustproof cover available under off-working condition.

5. Certification: UL,RoHS,CE

6. Multi-branches are options, such as 1 to 2, 1 to 3, 1 to 4 ... 1 to 12.

Technical Spec

Connector Model: Y shaped waterproof connector
Waterproof level: IP68
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm(18AWG-12AWG)
Core number: 2 pin,3pin,4pin
Rated current (A): 10A
Service Cable length could be customized

Operation Parameters
waterproof level ip67/ip68
Current Rating 20 A max
Min Wire Size OD 3.5mm ~ 7.0mm
Max Wire Size OD 4.0mm2 ~ 9.5mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


Main characteristics

  • Sealed against dust and fluid (IP67)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


FAQ

1. Q:Is the sample avaliable and free?

A: Yes, we can produce by your samples or technical drawings. We can build the molds andfixtures.

2. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

3. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

4.Q: How to buy your products?

You need to do as followings:

Confirm Current Rating and Number of Contacts

Confirm Assembly style

Confirm Cable Wire guage

Confirm Cable Length and Material.

5.Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once

Product Display
Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out
