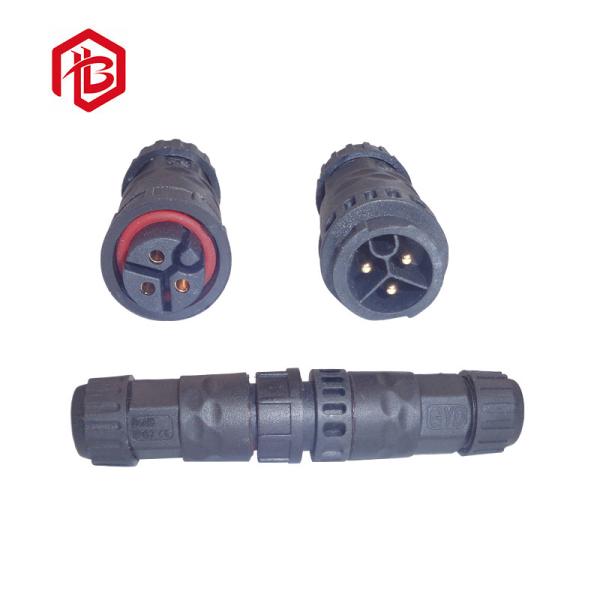

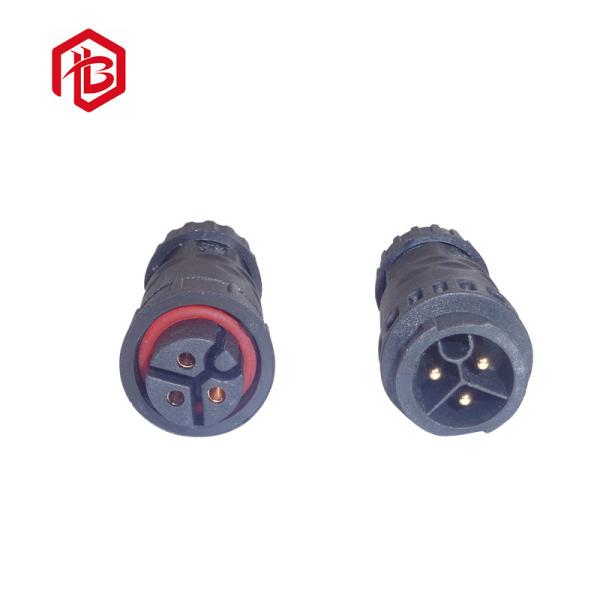

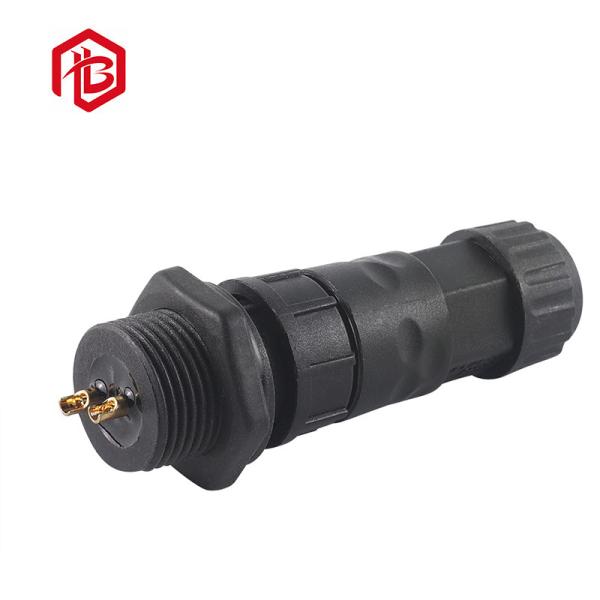

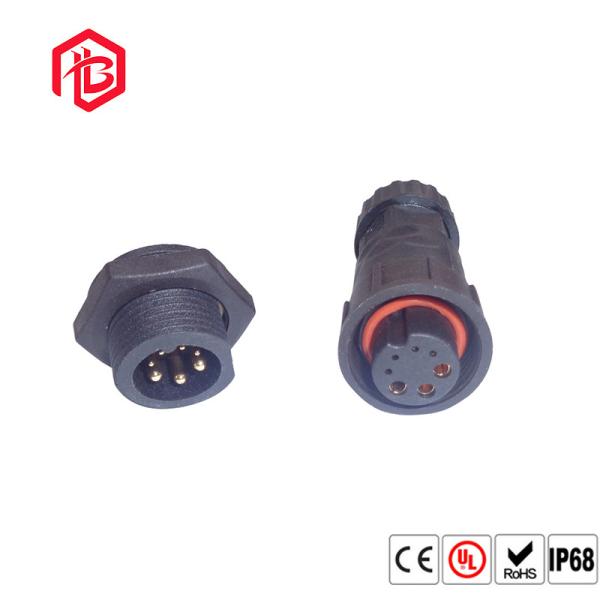

UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
UL TUV Impact Resistance K19 Waterproof Male Female Connector
Specifications
Brand Name :
Bett
Model Number :
K19
Certification :
UL，CCC，ROHS，CE，TUV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union，Paypal, L/C
Supply Ability :
100000 sets/ week
Delivery Time :
3-7 days
Packaging Details :
Standard Export Carton
Material :
Nylon/ PVC
Color :
Black
Connector Type :
waterproof connector
Warranty :
2 Yeras
IP Rating :
IP67
Connector type :
Underground Cable Connector
Description

Bett Waterproof Male Female Connector IP 68 Waterproof Grade K19 Panel Mount


Detailed Product Description

Protection Level:IP68Connecting Model:Screw Locking
Pin:2 to 5 pin Current Rating:20A
Model:Assembled K19Voltage Rating:300V


Description of 4Pole Connector

It is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, K19 waterproof connectors will be a perfet option. it is widely used in many application.

Operation Parameters
Voltage Rating300VAC max
Current Rating20A max
Min Wire Size OD3.0mm ~ 6.5mm
Max Wire Size OD6.5mm ~ 10mm
Max.Cable Cross Section Area0.3mm2 ~ 2.5mm2


Features:​

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett K19 Connectors

  • inventory product coding
  • Solar System
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Heavy machinery


FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

Product Display


UL TUV Impact Resistance K19 Waterproof Male Female ConnectorUL TUV Impact Resistance K19 Waterproof Male Female ConnectorUL TUV Impact Resistance K19 Waterproof Male Female Connector
