Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature
Specifications
Brand Name :
Hoonsun
Model Number :
M12 To M63
Certification :
RoHS, ISO, CE, IP68
Place of Origin :
Zhejiang,China
MOQ :
20-100 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30000 Pieces/Day
Delivery Time :
3-30 Day
Packaging Details :
38*25*17mm
Material :
Nickel Plated Brass
Seal :
Modified Rubber
Heat Dissipation Permeability :
2400ml/s/㎡
Working Temperature :
-40℃ to 100℃
Item :
M40*1.5
Range :
25-33mm cable & wire
Description

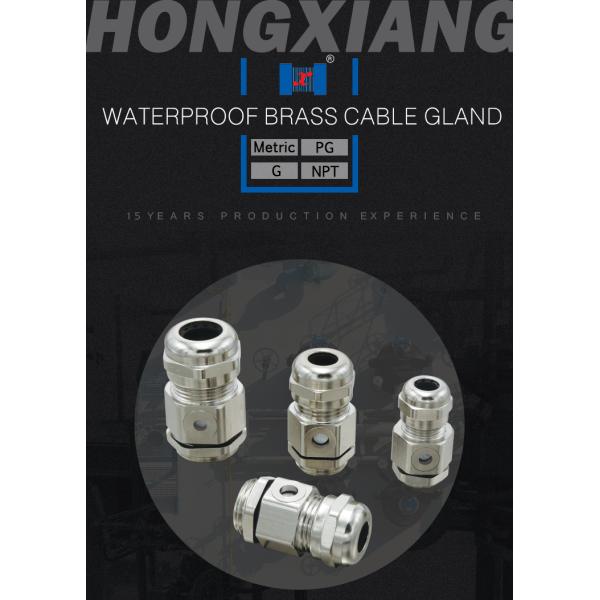

Modified Rubber Air Permeable Type Breathable Cable Gland

Material

sealing nut: nickel plated brass

plastic claw: Nylon V2

Seal: modified rubber

protection degree: in the specified cable outer diameter and the appropriate

Temperature Range

-40°C to 100°C, short time to120°C

Advantage

All membrane materials of plastic waterproof breathable valve products are imported from the United States.

The imported PC material is die casting. Special technology of membrane-shell bonding.

The utility model has the advantages of stable performance, simple installation, long service time, high waterproof and air permeability. Durability design should deal with all kinds of harsh environmental requirements.

The balance design of permeability and waterproofing is more diversified and extensive.

The screw precision design and good sealing have solved the common loosening defect of the cap of the sea lock structure in the market, and solved the problem of using pressure sensitive adhesive to paste the life.

Contact with chemical spatters such as water and oil quickly restores air permeability.

The new hot-melt composite design integrates the permeable film and plastic material without damaging the film body, and achieves the perfect scientific design of product combination.

The new PC cover design can prevent the top cover from falling off, with better heat dissipation performance, longer service life and better weather resistance.

Modified Rubber Permeable Type Air Breather Valve Cable Gland -40 - 100 Working Temperature

Item Range GL Thread O.D. Joint Length Spanner size Code
M12×1.5 3-6.5 6.5 12.0 27 16 HX-NFM12
4-8 8 12.0 27 16/14 HX-NFM12-8
M16×1.5 3-6 8 16.0 27 18 HX-NFM16-6
4-8 8 16.0 27 18 HX-NFM16
5-10 8 16.0 27 20/18 HX-NFM16-10
M18×1.5 5-10 8 18.0 29 20 HX-NFM18
M20×1.5 5-10 8 20.0 32 22 HX-NFM20-10
6-12 8 20.0 32 22 HX-NFM20
10-14 8 20.0 32 24/22 HX-NFM20-12
M25×1.5 8-12 9 25.0 35 24/27 HX-NFM25-12
10-14 9 25.0 35 24/27 HX-NFM25-14
12-16 9 25.0 35 27 HX-NFM25-16
13-18 9 25.0 35 30/27 HX-NFM25-18
M32×1.5 13-18 10 32.0 54 35 HX-NFM32-18
15-22 10 32.0 54 35 HX-NFM32
18-25 10 32.0 54 40/35 HX-NFM32-25
M40×1.5 18-25 11 40.0 46 40/45 HX-NFM40-25
22-30 11 40.0 50 45 HX-NFM40-30
25-33 11 40.0 52 50/45 HX-NFM40-33
M50×1.5 32-38 13 50.0 55 57/55 HX-NFM50
M63×1.5 37-44 14 63.0 55 64/68 HX-NFM63
42-52 14 63.0 55 78/68 HX-NFM63-52
Customizable PG/G/NPT thread


Application scope

Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.

Our service

We welcome customers to provide us with suggestions related to products.

Any question can be told to us by email or telephone, and we will handle it for you in a timely manner.

Quick and accurate deliveryWe ensure the quality of our products is excellent.

Products can be customized according to specific requirements

Company advantages

specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.

automatic production of numerical control equipment, accurate and safe

2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
