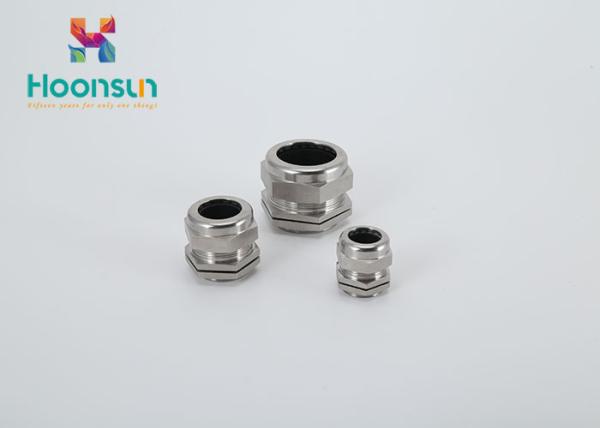

Salt Resist Watertight Metallic Cable Gland IP68 Protection Rating For Industry

Material: nickel-plated, PA66,UL94-V2,NBR,Silicone rubber

Composition: sealing nut, claw, seal, body, O-ring, lock nut.

Characteristics: the line range is larger than the conventional one

Nickel Plated Brass Metal PG cable gland Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Special clamping claw and the design of the clamping ring is concave and convex clasped with forced tight head assembly time-savers, cable clamping range is big, strong tensile resistance, can waterproof, dustproof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent.

Function: Extremely easy installation, simply insert cable through the assembled gland and tighten gland locknut until cable is secured.

Usage: Waterproof brass cable gland is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access according to the import and export for internal thread electric devices.

Usage method

• Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
• The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
• Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
• Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
• The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.

Product Introduction

Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.
