A full range of IP67 rated environmentally sealed circular power connectors designed to provide secure, robust and watertight connections in heavy-duty, industrial & harsh environment applications.

Data Sheet

Parameters

Questions & Answers

Q1 : Can I have a sample for test ?

Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

Q2 : How about the lead time ?

Sample order need 3-5 working days , mess order need 15-20 working days .

Q3 : Do you have certificates about the waterproof connectors ?

Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

Q4 : What payment can you accept ?

We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

Q5 : Is that OK to print our Logo on your product and package ?

Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

Q6 : Are you a factory ? Where is your factory ?

Yes , we are a factory , we located in Shenzhen .

Q7 : Do you accept OEM & ODM service ?

Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

Q8 : How much does it cost to my country ?

The freight will be given by fright company based on your Gross weight and CBM .

Q9 : Can I order 100m cable for 1pc waterproof connector ?

Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .

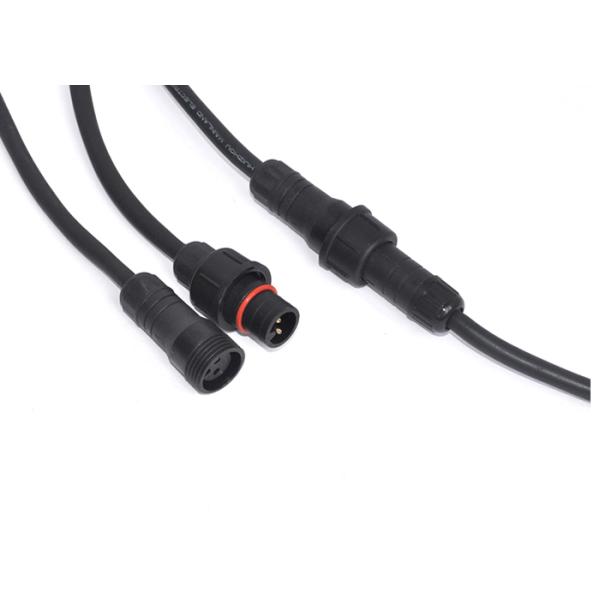

Product Details

Male Size : Φ15.5*45mm

Female Size : Φ18.3*45.8mm

Contact Cores : 2pin / 3pin

Male Pin Diameter : Φ2.35mm

Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

Over-Mold Material : PA66

Insulator Material : Nylon, Temperature-resistance 260℃

Wire Specifications : 20AWG---14AWG

Wire Diameter : Φ4.0-Φ9.0

Protective Level : IP68

Working temperature : -40℃~ 125℃

Rated Current : 10-12A

Rated Voltage : 250V

Test Voltage : 1000V~1500V

Contact Resistance : 10 MΩ

Insulation Resistance : 200 MΩ
