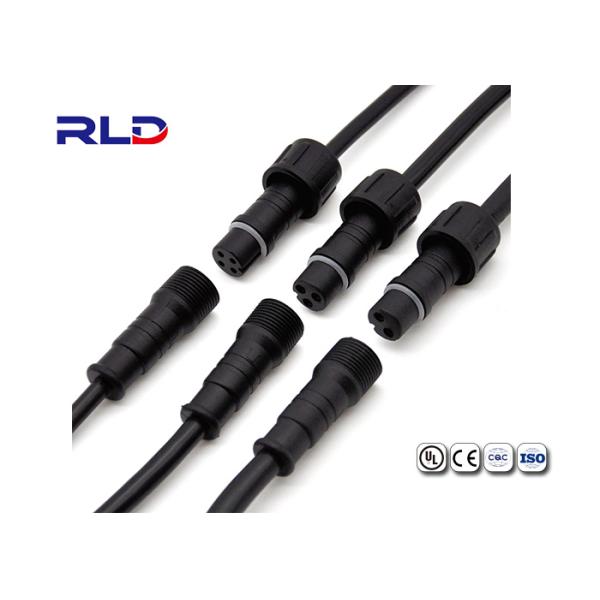

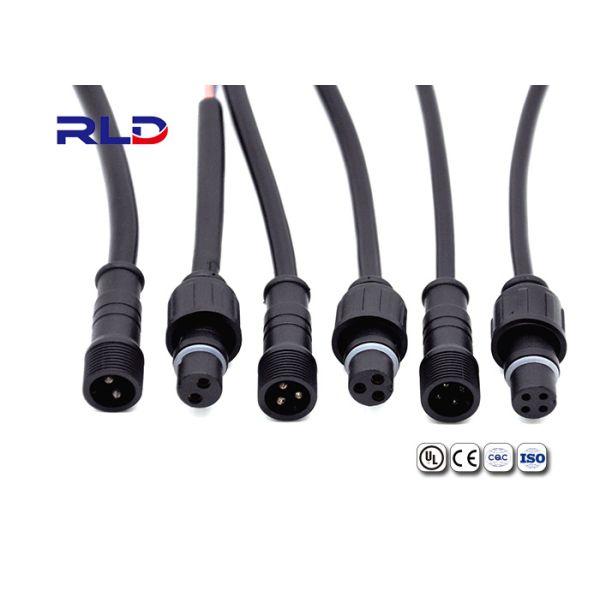

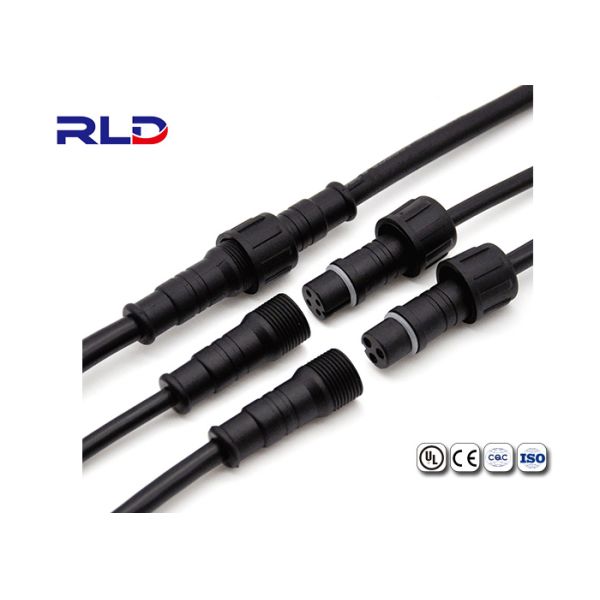

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female
Specifications
Brand Name :
Realeader
Model Number :
DR-D04
Certification :
UL/CE/CQC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T,, MoneyGram,Paypal,, L/C
Supply Ability :
100000pcs/month
Packaging Details :
cartons
Product Name :
Waterproof Cable Connectors
Contact Cores :
2pin/3pin/4pin
IP Level :
IP67
Gender :
Male / Female
Application :
Automotive
Rated Voltage :
60V AC
Description

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

Quick Detail Of Waterproof Cable Connectors

1) Advanced structure: Screw threaded

2) Mutiple pin: 2pin/3pin/4pin

3) Connector type : Male / Female

4) Colours:Black

1. Screw threaded locking system, simple in using, convenient in installation;
2. Specially designed for low-voltage, weak-current products;
3. Gold-plated pins are used to ensure lasting and stable conductivity, safe and reliable;
4. With compact structure, small and exquisite shape, the plug is more suitable for product needs;

Mechnical Property

Pins Number 2Pin 3Pin 4Pin
Male / Female Contact Material Copper/ Copper Alloy (Gold Plating /Nickel Plating)
Over-Mold Material PVC
Cable Range 0-7.2mm
Cable Specifications 1.0mm²,0.75mm²
Connection Mode Screw threaded
Protection Degree IP67
Operating Temperature PVC : 0℃-80℃
Plug/ Plug Durability 1500

Electrical Property

Rated Current 8A
Rated Voltage 60V
Test Voltage 1000V
Contact Resistance 10mΩ
Insulation Resistance 100MΩ


Application Of Waterproof Cable Connectors

1. Electric Bicycles

2. Ebike Motor

3. E-Scooter

4. LED Street Light

Our Advantages

1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.

Application of Waterproof Cable Connectors

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

D04 Specification.pdf
