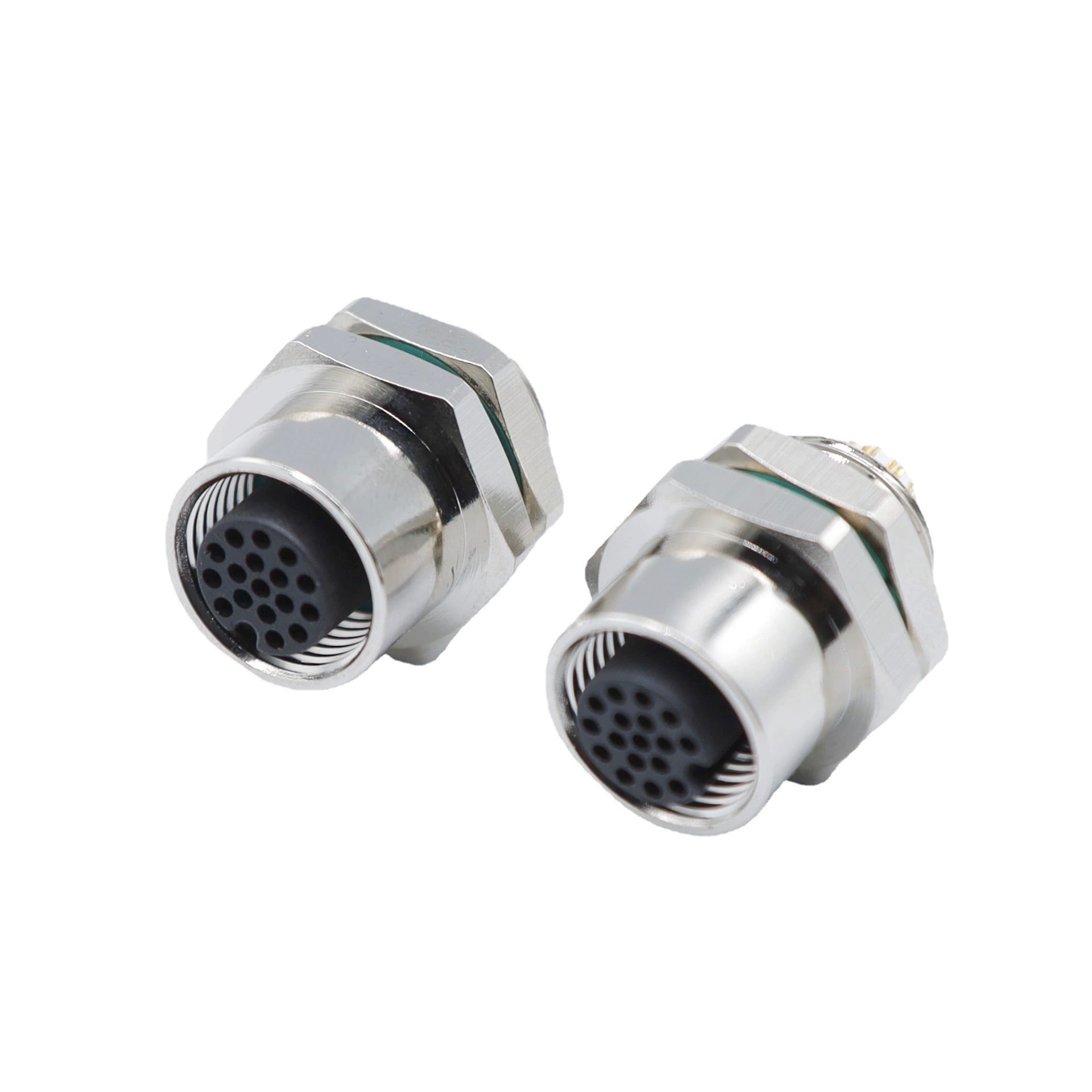

M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
Specifications
Supply Ability :
Can produce 10 million sets of wire harnesses annually
Model Number :
M12 waterproof plug
Contact Material :
Phosphor Bronze, Gold Plated
Price :
2 USD -3 USD
Contact Resistance :
≤5mΩ
Certification :
UL,CE certification
IP Protection Rating :
IP68
MOQ :
100 sets
Delivery Time :
7-15 days
Housing Material :
Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
kenhon
Withstand Voltage :
≥1000V AC (1 minute duration)
Place of Origin :
Shenzhen, Guangdong, China
Rated voltage :
250V
Packaging Details :
10*10*10
Description
M12 Connector - Waterproof IP67 Panel Mount Female Receptacle Screw Lock Industrial Circular Connector
Product Overview

The M12 Board-End Waterproof Plug is the device-side counterpart of a standard M12 field cable plug, designed for mounting on control cabinets, sensor boxes, PLC modules, or edge gateways. This panel-mount receptacle provides a sealed, keyed, vibration-proof panel penetration for industrial applications.

Following IEC 61076-2-101/2-104 dimensional standards, it intermates with major brand M12 cordsets and serves as the default connector for distributed I/O, industrial cameras, and charging-pile control boards.

Key Benefits
  • Single sealed board landing point eliminates internal splices
  • Coding prevents field mis-mating with exclusive keyways
  • Current ratings: 4A (2-5 pin), 2A (6-8 pin), 1.5A (12-17 pin)
  • Flexible mounting options: front/rear panel, straight/90° PCB
  • Gold-plated phosphor-bronze contacts with ≤5 mΩ resistance
  • Reduces BOM complexity compared to gland + terminal block solutions
  • Repairable design - board can be replaced without cutting external harness
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101 / 2-104
Coupling M12 × 1.0 threaded
Mounting Front / rear panel, PCB DIP 180°/90°
Pin Configurations 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17
Rated Current 4A (2-5 pin), 2A (6-8 pin), 1.5A (12-17 pin)
Rated Voltage 250V (2-4 pin A), 60V (5 pin), 30V (6-17 pin)
Contact Resistance ≤ 5 mΩ
Protection Rating IP67 mated (IP68/IP69K optional)
Operating Temperature -40°C to +85°C / +105°C
Mating Cycles ≥ 500 (plastic), ≥ 1000 (metal)
Certifications CE, RoHS, REACH, UL/CCC options
Feature Details
Coding Options
A / B / D / X / T / L (2-17 pin)
Termination
PCB straight DIP, 90° DIP, solder cup, or fly-wire
Shell Material
PA66+GF (black/grey) or Ni-plated brass
Wire Size
0.14-0.75 mm² (26-18 AWG)
Applications
  • PLC / DCS / distributed I/O cabinets
  • Industrial communication networks (PROFINET, EtherNet/IP, PROFIBUS)
  • Edge gateways & IoT boxes
  • Machine vision & robotics systems
  • Charging pile / BMS boards
  • Outdoor LED, solar, and transport systems
