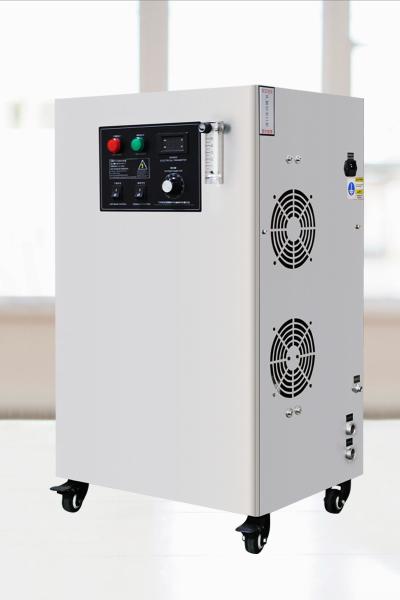

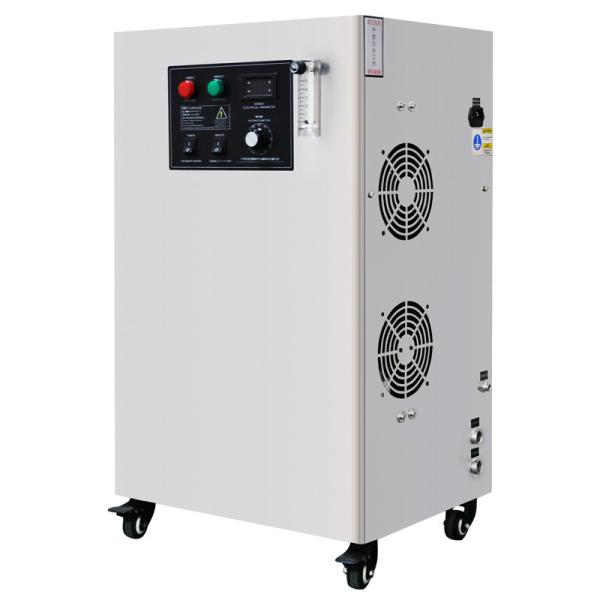

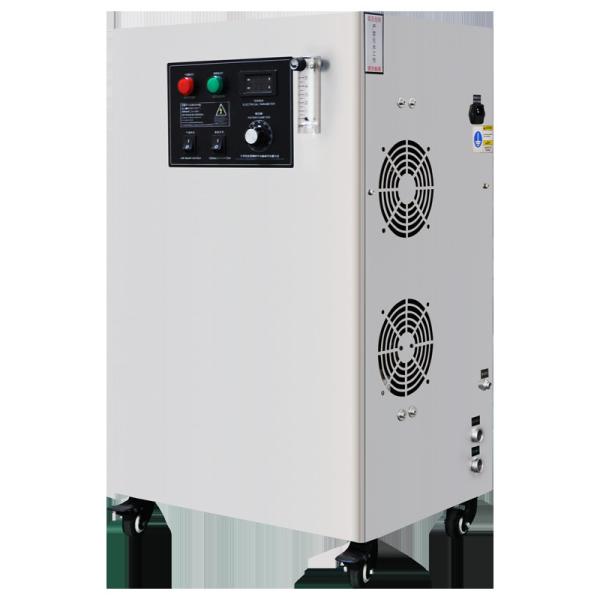

5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
Specifications
Brand Name :
Leader-t/OEM
Model Number :
LD
Certification :
CE,ISO9001,ISO 14001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000sets/month
Delivery Time :
7-15 Days
Packaging Details :
Wooden /Box
Name :
10-100g ozone generator
Power Source :
Battery, Electric, Vehicle Power Supply, electrical
Function :
Remove Odor
Application :
Hotels, Food & Beverage Factory, Restaurant, Home Use,
Usage :
Home . Office . Hospital
Purification area :
60-6000m2
Warranty :
1 Year
Description

Large Ozone Generator With 100G 200G 300G For Water Treatment

Specification

Model NO. LD-5G LD-7G LD-10G LD-15G LD-20G LD-30G LD-40G
Ozone production(g/h) 5 7 10 15 20 30 40
Ozone concentration(mg/L) 10-15mg/L 15-20mg/L
Cooling type Air cooling
Power(W) 80 100 200 250 320 450 500
Power supply AC 220V/50HZ (60hz can be customized)
Length X Width X Height(mm) 320*250*520 380*260*718 420*300*800 450*320*800
Intake air Temp.(℃) ≤20
Air source dew point(℃) ≤45
Working environment

Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
Applicable space(m³) 150-250 210-350 300-500 450-800 600-900 1000-1800

Ozone Generator Functions

  • Complete machine PSA oxygen source, with built-in oxygen concentrator with high concentration of ozone and ultra-low rate of ozone decay.
  • High ozone concentration output: assemble air/water cooled quartz ozone tube for larger models.
  • With refrigerant dryer for cooling air which can protect the oxygen & ozone unit for long service life in good working condition.
  • Inner temperature controller to prevent heat generating.
  • Inner muffler:silence operation.
  • Inner double ultra-filters and electric drain valves.

Products Description

The powerful air-cooled ozone generator adopts a high temperature resistant HQG non-glass structure discharge unit. The structure is extremely stable, has a long service life, has high discharge efficiency, and is not easily damaged by returning water;

Composition:

  • generator unit, stainless steel casing, ammeter, Taiwan-made 150 fan, gas flow meter, ozone adjustment knob, etc.

Features:

  • No ozone alarm, no automatic shutdown, return to normal after ozone, this function indicates whether the discharge unit is working normally.
  • Backwater alarm. Stop using oxygen or dry air to dry and turn on the machine. Stop the alarm for 3 seconds after starting up.
  • Over-temperature alarm and shutdown protection, when the temperature is below 50 degrees, it will automatically resume work and stop the alarm.

Pictures

5g/H 7g/H Portable Ozone Generator For Water Treatment Plant 5g/H 7g/H Portable Ozone Generator For Water Treatment Plant 5g/H 7g/H Portable Ozone Generator For Water Treatment Plant
