Specifications
Brand Name :
YICHENG
Model Number :
WDQ series
Certification :
CE
Place of Origin :
Guangzhou, China
MOQ :
one piece
Price :
negotiation
Payment Terms :
T/T, western union, L/C
Supply Ability :
1000000pcs/month
Delivery Time :
within one week
Packaging Details :
carton
Power :
0.18 - 1.1KW
Connection :
1.2 inch and 2 inch
Type :
submerge
pump body :
cast rion
Impeller :
plastic
Bearing :
NSK & China
Description

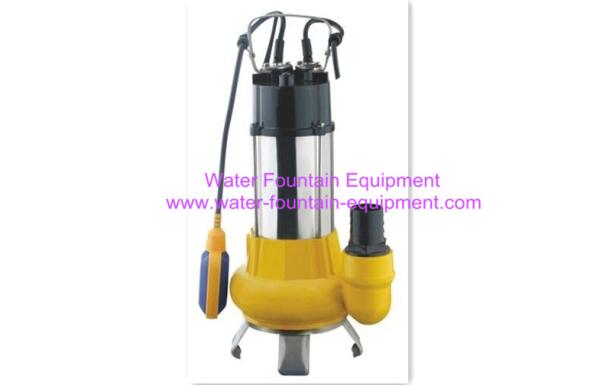

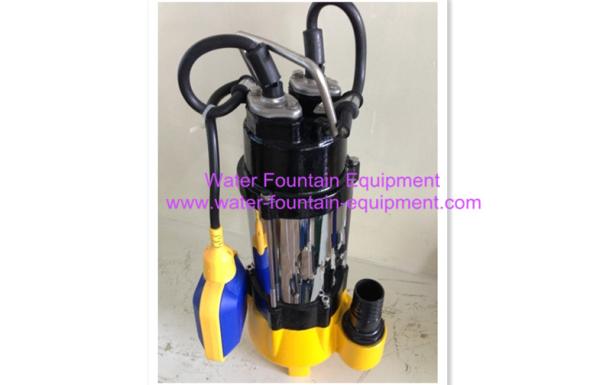

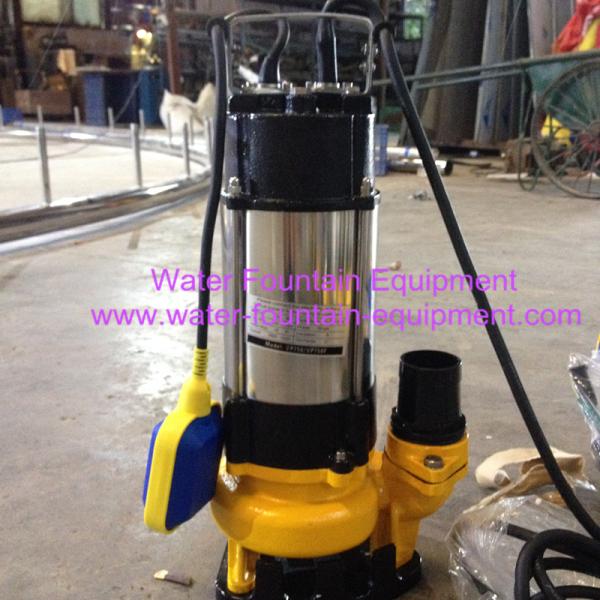

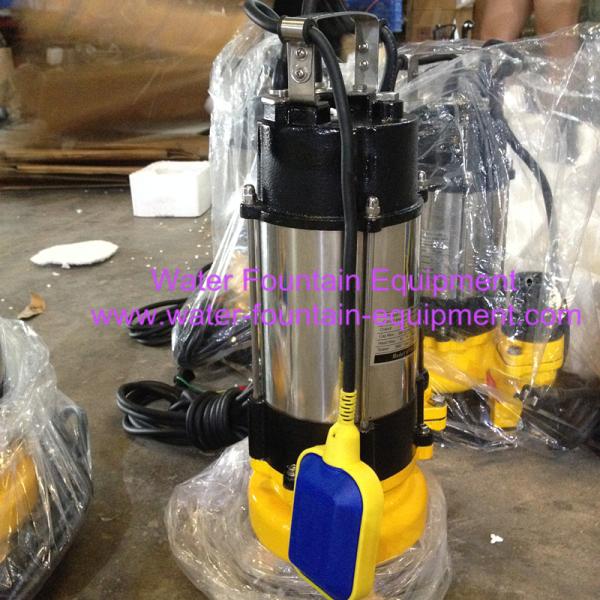

Automatic Stainless Steel Sewage Submersible Fountain Pumps With Floating Ball



Description:

WDQ series single-phase sewage submersible pump is currently the most advanced and ideal machine that USES suction under the structure of vortex flow, with non clogging, corrosion resistance, drain thoroughly, convenient and reliable, widely applicable, etc.

With a floating ball can switch when unattended, realize automatic start-stop control, the power distribution motivation for single-phase capacitor running asynchronous motor (or three-phase asynchronous motor), in which thermal protector, met overtemperature and overpressure automatically cut off power supply, under bad environment to ensure the operation safety and reliability.

Application:

Applied to pumping such liquid which is not clean , with solid matter or long fibre matter.

It can be used:

1.for water supply from wells or reservoirs.

2.for domestic use.

3.for civil and industrial application.

4.for garden use and irrigation.

5.for draining slurry or waste water.

Material:

Pump body Cast iron
Impeller plastic
Motor housing Stainless steel
Motor wire Copper 100%
Mechanical Seal Ceramic & graphite
Shaft 2Gr13(AISI420)
Bearing NSK & China

Model Outlet Motor Power Voltage

Flow

rate

Max.

flow

 Head

Max

Head

 Flow section diameter Weight
　 (mm) (kw) (V) (m3/h) (m3/h) (m) (m) (mm) (kg)
WQD5-5-0.18F 40, 32 0.18 220 5 6 5 7.0 18 6.5
WQD5-5-0.25F 40, 32 0.25 220 5 9 5 7.5 　 9.0
WQD5-7-0.37F 40, 32 0.37 220 5 12 7 8.5 　 15.5
WQD5-7-0.45F 50, 40 0.45 220 5 12.5 7 10.0 25 17.5
WQD5-10-0.55F 50, 40 0.55 220 / 380 5 15 10 11.0 25 18.5
WQD10-10-0.75F 50, 40 0.75 220 / 380 10 18 10 12.0 30 19.5
WQD16-5-1.1F 50, 40 1.10 220 / 380 16 20 5 9.0 50 20.5
