Grundfos Circulating Pump
UPSD 65-120 F 340
Number 96402284

Applicable for
Heating
The UPSD is a double-head model of the UPS three-speed pump, which is used in heating and air conditioning systems. The UPSD is installed in positions where both working and standby operations are required to achieve higher reliability.

UPSD 65-120 F 340 The pump is of the canned rotor type. For example, the pump and the motor form an integrated device without a shaft seal, but with only two gaskets for sealing. The bearings are lubricated by the conveyed liquid. In order to avoid problems related to handling, the most important thing is to limit the amount of pump materials as much as possible. The pump can have the following characteristics: 1.A three-speed electric motor. 2.Ceramic radial bearings. 3.Graphite axial bearings. 4.A stainless steel rotor can, backing plate and rotor cladding. 5.An aluminum alloy stator housing. 6.A cast iron pump casing. 7.A stator equipped with a built-in thermal control switch.

This motor is a three-phase motor.

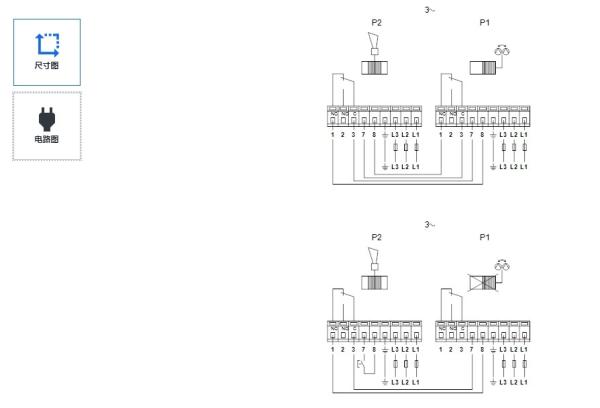

The double-headed pump is equipped with a relay assembly in the terminal box. Therefore, the pump can be directly connected to the power supply. The relay assembly can have three different operation modes:

Interactive operation.
Standby operation.
Single-pump operation.

Controller
Relay: with relay
Liquid:
Transported liquid: water
Liquid temperature range: -10.. 120 °C
Liquid temperature during operation: 60 °C
Density: 983.2 kg/m³

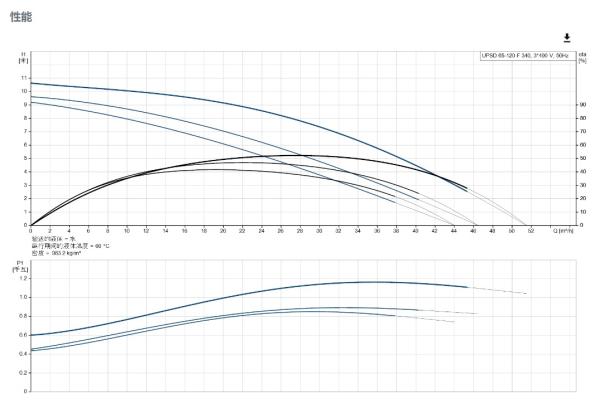

Technology
Rated flow rate: 27.6 m³/h
Rated head: 7.89 meters
Approvals: EAC

Material
Pump casing: cast iron
Pump housing: EN 1561 EN-GJL-250
Pump casing: ASTM 35 B - 40 B

Impeller: Stainless steel
EN 1.4301
AISI 304

Installation
Ambient temperature range: 0.. 80 °C
Maximum operating pressure: 10 bar
Pipe connection standard: EN 1092-2
Connection type: DIN
Connection size: DN 65
Pressure rating for pipe connection: PN 6/10

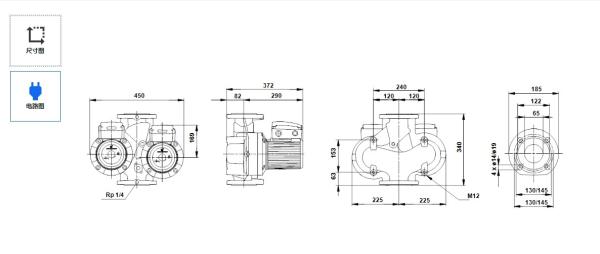

Port-to-port length: 340 mm

Electrical data
Input power at speed 1: 850 watts
Input power at speed 2: 900 watts
Maximum input power: 1150 watts
Power frequency: 50 Hz
Rated voltage: 3 x 400-415 V
Current at speed 1: 1.35 amps
Current at speed 2: 1.45 amps
Current at speed 3: 2.15 amps
Cos phi at speed 1: 0.91
Cos phi at speed 2: 0.9
Cos phi: 0.77
Insulation class (IEC 85): H
Enclosure class (IEC 60529): X4D
Built-in motor protection: CONTACT

Others
Terminal box position: 12H
Net weight: 63.1 kilograms
Gross weight: 70.7 kilograms
Shipping volume: 0.125 cubic meters.
