Specifications
Brand Name :
Grundfos
Model Number :
SP 18-53
Place of Origin :
ID
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Liquids to be conveyed :
Water
Liquid temperature range :
-15 .. 40 °C
Liquid temperature during operation :
20 °C
Density :
998.2 kg/m³
Power frequency :
50 Hz
Rated voltage :
3 x 380-400-415 V
Net weight :
195 kg
Gross weight :
263 kg
Rated flow :
18 m³/h
Rated head :
406 m
Maximum ambient pressure :
60 bar
Maximum operating pressure :
60 bar
Description

Deep Well Pump
SP 18-53
Serial Number: 92952132


Applicable for:


  • Extraction of groundwater for domestic use
  • Pressure boosting for domestic water supply
  • Groundwater extraction
  • Irrigation
  • Water supply for residential communities and buildings


Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater, irrigation, mining, fountains, offshore operations, etc.


SP 18-53
It is a submersible deep well pump, suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4301 (AISI 304), ensuring high corrosion resistance. This pump has drinking water approval.

The pump is equipped with a 30kW MS6000 motor, featuring a sand shield, mechanical shaft seal, water-lubricated sliding bearings, and a volume compensation diaphragm. The motor is a hermetically sealed submersible motor, providing good mechanical stability and high efficiency. It is suitable for temperatures up to 40 °C.

The motor is equipped with a Grundfos Tempcon sensor, which enables temperature monitoring through power line carrier communication and the MP204 control panel. The motor is designed for direct online (DOL) starting.

Grundfos 3-Inch 30KW Stainless Steel Electric Deep Well Pump For Irrgation Mining


Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Maximum fluid temperature at 0.15 m/sec: 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

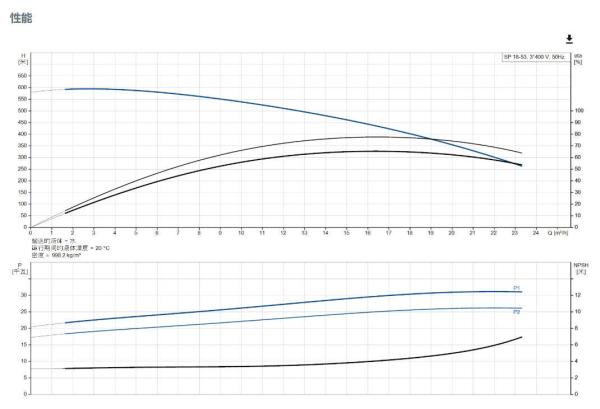

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 18 m³/h
Rated head: 406 meters
Motor shaft seal: CER/CARNBR
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Drinking water certification: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES


Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
DIN W.-Nr. 1.4301
AISI 304


Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 58.5 bar
Interface type: R

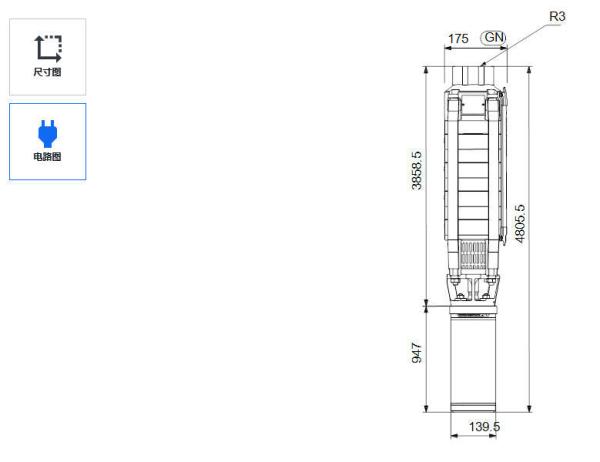

Connection size: 3 inch
Motor diameter: 6 inch
Minimum borehole diameter: 190 mm

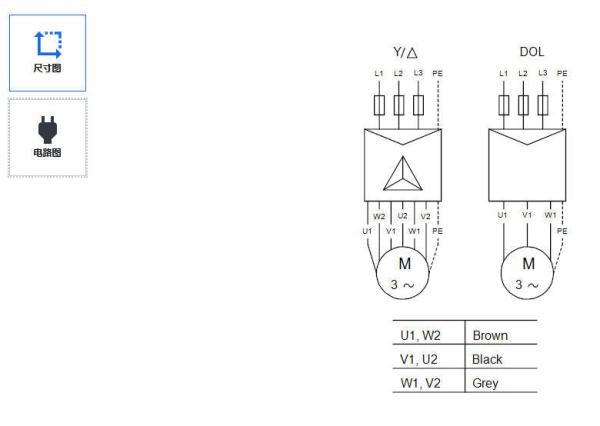

Electrical data:
Motor model: MS6000
Motor flange design: Grundfos
Rated power - P2: 30 kW
Power required by the pump (P2): 30 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 66.5-64.0-63.0 A
Starting current: 450-500-530 %
Cos phi - Power factor: 0.87-0.85-0.82
Rated speed: 2850-2870-2880 revolutions per minute
Starting method: Direct start
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Built-in temperature conductor: Yes
Cable length: 8 meters
Cable type: FLAT
Motor number: 78195520
Windings: Enamelled


Others:
Minimum energy efficiency index, MEI ≥: 0.70
Net weight: 195 kg
Gross weight: 263 kg
Transport volume: 0.581 m³
Place of origin: ID
