Specifications
Brand Name :
Grundfos
Model Number :
SP 14-31
Place of Origin :
SG
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Liquids to be conveyed :
Water
Liquid temperature range :
-15 .. 40 °C
Liquid temperature during operation :
20 °C
Density :
998.2 kg/m³
Power frequency :
50 Hz
Rated voltage :
3 x 380-400-415 V
Net weight :
60 kg
Gross weight :
106 kg
Rated flow :
14 m³/h
Rated head :
135.5 m
Maximum ambient pressure :
60 bar
Maximum operating pressure :
60 bar
Description
Deep Well Pump
SP 14-31
Serial Number: 98901320

Applicable for:

  • Extraction of groundwater for domestic use
  • Pressure boosting for domestic water supply
  • Groundwater extraction
  • Irrigation
  • Water supply for residential communities and buildings

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

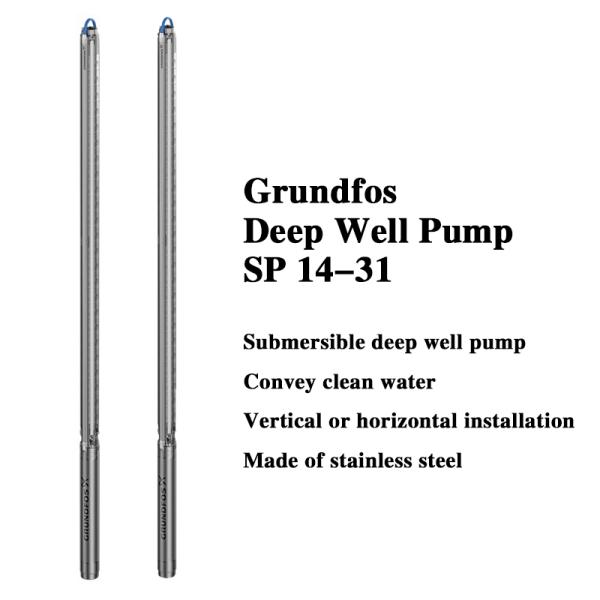

SP 14-31
It is a submersible deep well pump, suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4301 (AISI 304), which ensures high corrosion resistance. This pump has drinking water approval.

 Grundfos Sp Series 4 Inch Diameter Water Submersible Deep Well Pumps



Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 14 m³/h
Rated head: 135.5 meters
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Motor certifications: CE, EAC, C_UL_US_NSF372MOROCCO, UKCA, SEPRO
Drinking water certifications: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES

Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
EN 1.4301
Shaft seal: HM/Ceramics

Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 19 bar
Interface type: Rp
Connection size: 2 inch
Motor diameter: 4 inch
Minimum borehole diameter: 105 mm

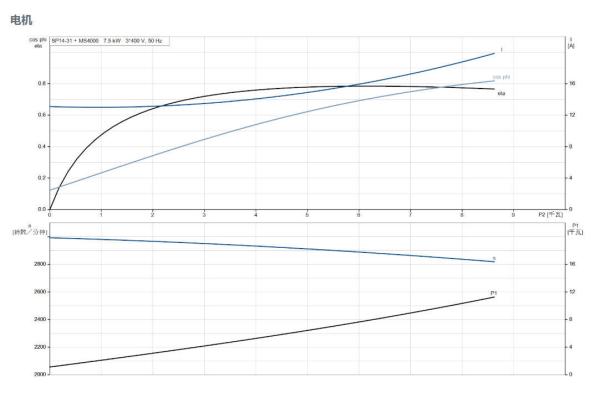

Electrical data:
Motor type: MS4000
Motor flange design: NEMA
Rated power - P2: 7.5 kW
Power required by the pump (P2): 7.5 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 18.4-19.3-19.6 A
Starting current: 470-480-490 %
Cos phi - Power factor: 0.83-0.77-0.72
Rated speed: 2830-2850-2860 revolutions per minute
Starting method: Direct-on-line (DOL)
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Self-protection standard: NONE
Thermal protection: External
Built-in temperature conductor: Yes
Cable length: 5 meters
Cable type: FLAT
Motor number: 7C193512
Windings: Enameled

Others:
Minimum energy efficiency index, MEI ≥: 0.50
Net weight: 60 kg
Gross weight: 106 kg
Transport volume: 0.412 m³
Place of origin: SG
