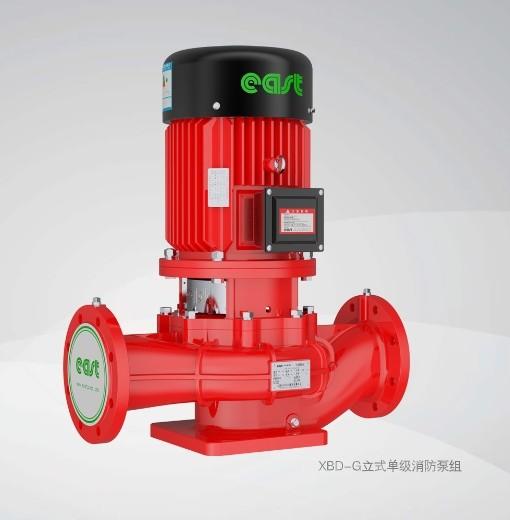

East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
East Xbd-G Fire Pump Vertical Single-Stage Fire Pump Set
Specifications
Brand Name :
East
Model Number :
XBD-G
Place of Origin :
China
MOQ :
1
Price :
Negotiable price
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
15--60 workdays
Packaging Details :
Wooden box
Flow Rate Range :
5 - 200 L/S
Pressure Range :
0.3 - 1.7 MPa
Medium Temperature :
≤ 80°c
Inlet and Outlet Diameter :
50 - 300 mm
Number of Motor Poles :
2 - Pole/4 - Pole
Maximum Allowable Inlet Pressure :
0.4 MPa
Inlet and Outlet Flange Pressure Rating :
1.6 MPa or 2.5 MPa
Description

Product Overview


  • The XBD - G vertical motor fire pump unit (vertical single - stage fire pump unit) series is a new - generation pipeline fire pump unit developed by our company in accordance with the latest fire pump standards and the mandatory certification requirements for fire - fighting products. Its performance and technical conditions comply with the relevant requirements of the national standards GB 6245 Fire Pumps and GB 55036 General Code for Fire - Fighting Facilities.

Product Features


  • Direct - connection type with a compact structure; the pump body adopts a streamlined design; the arrangement of reinforcing ribs is simple and the appearance is beautiful.
  • The hydraulic model adopts CFD optimization design. Through the three - dimensional design theory, model optimization design, and pump dynamic characteristic analysis methods, the pump efficiency is maximally improved, and the high - efficiency operation range of the pump is broadened. The molds for the parts of the flow - through components are formed by numerical control, and the castings are made by resin sand molding, ensuring the dimensional accuracy and surface finish of the parts.
  • The main structural components adopt FEM optimization design to review the rationality of the structural design of the parts and the load - bearing requirements.
  • High - efficiency three - phase asynchronous motors are selected. The efficiency index complies with the energy - efficiency standard of GB18613 Energy - efficiency Limitation Values and Energy - efficiency Grades for Small and Medium - sized Three - phase Asynchronous Motors. The motor protection level is IP55, and the insulation class is F - class.

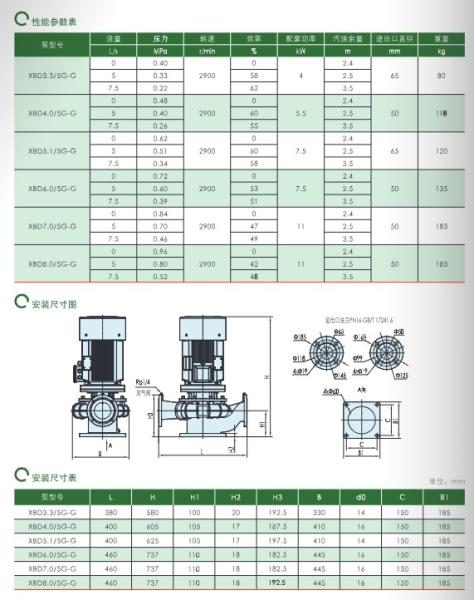

Operating Conditions and Performance Parameter Range


  • Flow rate range: 5 - 200 L/s
  • Pressure range: 0.3 - 1.7 MPa
  • Medium temperature: ≤ 80°C
  • Inlet and outlet diameter: 50mm - 300mm
  • Number of motor poles: 2 - pole/4 - pole
  • Maximum allowable inlet pressure: 0.4 MPa
  • Inlet and outlet flange pressure rating: 1.6 MPa or 2.5 MPa

If users have special requirements, they should be specified at the time of ordering, and production will be customized accordingly.

Electric Motor


Squirrel - cage three - phase asynchronous motor is adopted.

  • Rated voltage: 380V
  • Frequency: 50Hz (can be made into 60Hz according to user requirements)
  • Protection level: IP55
  • Insulation class: F
  • Installation type: V1
  • Cooling type: IC411
  • Ambient temperature: Not exceeding 40°C at the highest, and not lower than - 15°C at the lowest
  • Connection method: Y - connection for 3kW and below, Δ - connection for 4kW and above

Product Applications


It can be widely used for water supply in fire - fighting systems (fire hydrant extinguishing systems, automatic sprinkler systems) of industrial and civil buildings.
