Specifications
Brand Name :
Grundfos
Model Number :
Cre
Price :
Negotiable
Supply Ability :
Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months
Delivery Time :
within 15 workdays
Packaging Details :
Wooden Box
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Liquid Temperature Range :
-20 .. 120 °c
Net Weight :
147 Kg
Gross Weight :
270 Kg
Liquid Temperature During Operation :
60 °c
Density :
983.2 Kg/M³
Rated Flow Rate :
114 M³/H
Maximum Pressure at Specified Temperatur :
16 Bar / 120 °c
Power Supply Frequency :
50 / 60 Hz
Description
CRE 95-1-1 V-F-A-E-HQQE

Applications


  • Commercial heating
  • Commercial air - conditioning
  • Commercial water pressure boosting
  • District heating
  • District cooling
  • Machining
  • Industrial cleaning processes
  • Process water distribution
  • Heating
  • Refrigeration
  • Industrial water supply and transportation
  • Industrial wastewater
  • Process water treatment
  • Seawater desalination
  • Surface water intake
  • Drinking water treatment
  • Municipal water distribution
  • Irrigation
  • Solar water solutions
  • Water supply for residential communities and buildings


Close


A vertical multi - stage centrifugal pump integrated with a frequency converter. The pump head and base are made of cast iron, and all other wetted components are made of stainless steel (EN 1.4301).

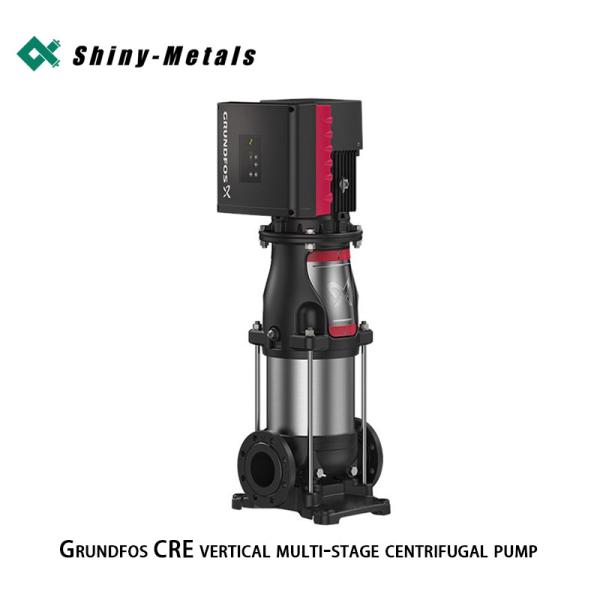

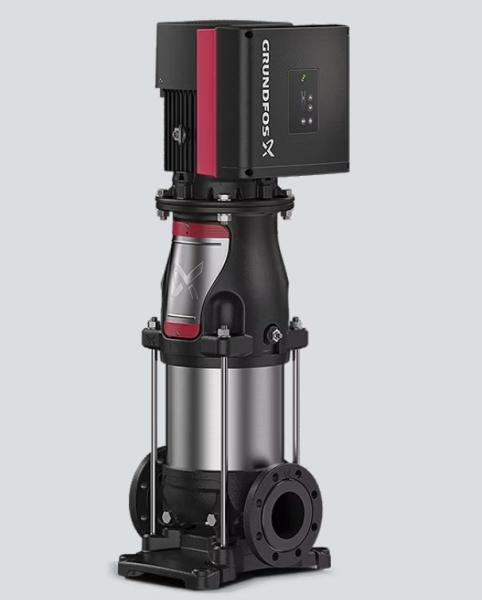

CRE Vertical Multistage Centrifugal Pump: Variable - Frequency Control
The CRE is a multi - purpose vertical multistage centrifugal pump, manufactured from AISI 304 - grade stainless steel / cast iron. It is equipped with a built - in frequency converter, enabling it to adapt to various flow rate and pressure requirements. The variable - frequency drive can continuously adjust the pump's performance to meet the requirements of current, pressure, temperature, or flow rate. This makes the CRE highly suitable for a wide range of applications, including water supply, washing and cleaning, water treatment, boiler feedwater, chemical industry, temperature control, and mining.
Grundfos Cre Pipeline Pump Centrifugal Water Pump Vertical Booster Pump Industrial High-Temperature Circulation Multi-Stage Pump
Grundfos Cre Pipeline Pump Centrifugal Water Pump Vertical Booster Pump Industrial High-Temperature Circulation Multi-Stage Pump


CRE Vertical Multistage Centrifugal Pump: Variable - Frequency Control
The CRE is a multi - purpose vertical multistage centrifugal pump, manufactured from AISI 304 - grade stainless steel / cast iron. It is equipped with a built - in frequency converter, enabling it to adapt to various flow rate and pressure requirements. The variable - frequency drive can continuously adjust the pump's performance to meet the requirements of current, pressure, temperature, or flow rate. This makes the CRE highly suitable for a wide range of applications, including water supply, washing and cleaning, water treatment, boiler feedwater, chemical industry, temperature control, and mining.



 Grundfos Cre Pipeline Pump Centrifugal Water Pump Vertical Booster Pump Industrial High-Temperature Circulation Multi-Stage Pump

Liquid

  • Transported liquid: Water
  • Liquid temperature range: -20 .. 120 °C
  • Liquid temperature during operation: 60 °C
  • Density: 983.2 kg/m³

Technology

  • Pump speed on which pump data is based: 3555 revolutions per minute
  • Rated flow rate: 114 m³/h
  • Rated head: 23.6 meters
  • Pump orientation: Vertical
  • Shaft seal configuration: Single
  • Main shaft seal: HQQE
  • Shaft seal code: HQQE
  • Approvals: CE, UKCA, SEPRO
  • Approvals for drinking water: ACS, WRAS
  • Curve tolerance: ISO9906:2012 3B

Materials

  • Base: Ductile cast iron
    • EN 1563 EN - GJS - 500 - 7
    • ASTM A536 - 84 65 - 45 - 12
  • Impeller: Stainless steel
    • EN 1.4301
    • AISI 304
  • Bearing: WC/WC
  • Support bearing: Graflon
  • Material certified according to: European standards

Installation

  • Maximum ambient temperature: 50 °C
  • Maximum operating pressure: 16 bar
  • Maximum pressure at specified temperature: 16 bar / 120 °C
  • Interface type: DIN
  • Inlet size: DN 100
  • Outlet size: DN 100
  • Pressure rating for pipe connection: PN 16
  • Flange size for motor: FF300

Electrical Data

  • Motor standard: IEC
  • Motor model: 160MH
  • Rated power-P2: 11 kW
  • Power required by the pump (P2): 11 kW
  • Over/undersize motor: Standard motor size
  • Power supply frequency: 50 / 60 Hz
  • Rated voltage: 3 x 380 - 500 V
  • Safety factor: 0.00
  • Rated current: 20.3 - 16.0 A
  • Cos phi-Power factor: 0.93 - 0.90
  • Rated speed: 360 - 4000 revolutions per minute
  • IE efficiency class: IE5
  • Motor full - load efficiency: 93.1 %
  • Encapsulation class (IEC 34 - 5): IP55
  • Insulation class (IEC 85): F
  • Motor number: 93079532

Controller

  • Frequency converter: Built - in
  • Pressure sensor: N

Others

  • Terminal box position: 6
  • Minimum efficiency index, MEI ≥: 0.70
  • Net weight: 147 kg
  • Gross weight: 270 kg
  • Transport volume: 1.25 m³
