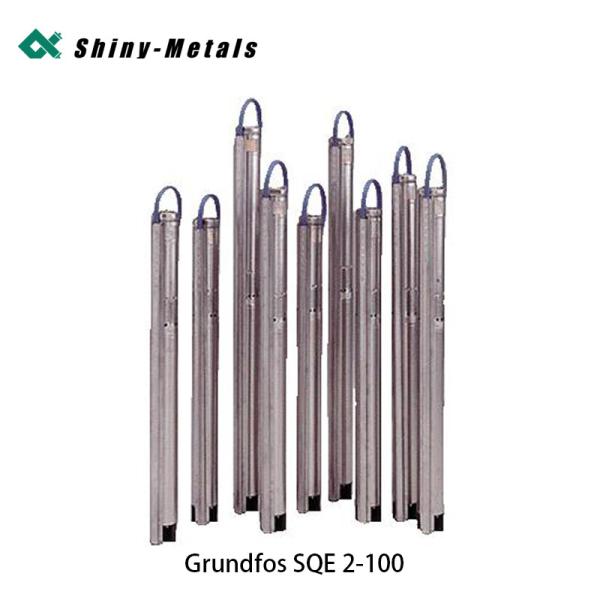

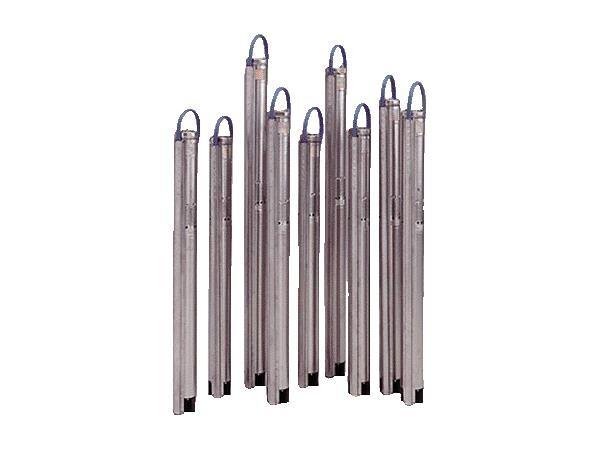

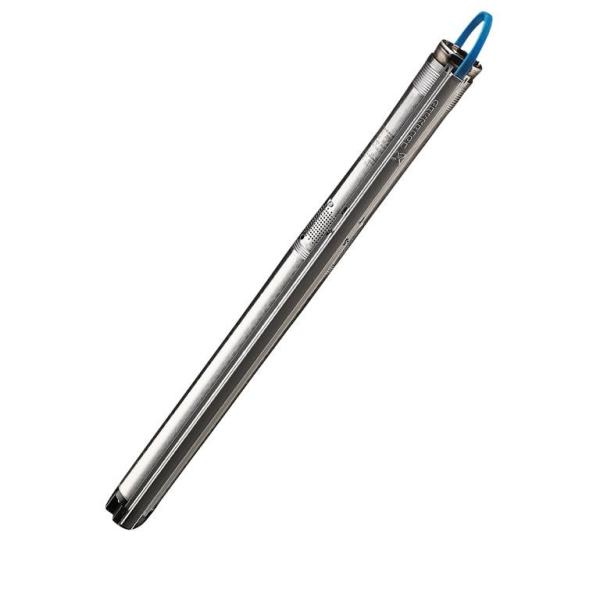

Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor
Specifications
Brand Name :
Grundfos
Model Number :
Sqe 2-100
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Maximum Head :
132 M
Maximum Flow :
3 M³/H
Description

SQE 2-100

Applicable to
1.Domestic groundwater intake
2.Boosting of domestic water supply
3.Groundwater intake



SQE 2-100

3 "multi-stage submersible pumps are used for domestic water supply, liquid transportation in water tanks, irrigation, and environmental applications. The pump is equipped with "floating" impellers, each with its own tungsten carbide/ceramic bearings.

The pump is equipped with soft start and idle operation protection, including push up, overvoltage, undervoltage, overload, and overheating.

This motor is a permanent magnet rotor single-phase motor that ensures optimal efficiency within various pressure ranges. The motor is equipped with replaceable end caps and comes with sockets.


 Grundfos Sqe 2-100 Submersible Pump with Variable Speed Motor


Liquid

Transported liquid: water
Liquid temperature range: 0-35 ° C
Liquid temperature during operation: 20 ° C
Density: 998.2 kg/m³

Technology

The pump data is based on the pump speed on it: 10700 revolutions per minute
Rated flow: 2 m³/h
Rated head: 108 m
Approvals: CE,PCBC,RCM,EAC,CN Rohs
Exempt,Morocco,UKCA,SEPRO
Curve tolerance: ISO9906:2012 3B

Installation

Maximum operating pressure: 15 bar
Pump outlet: RP1 1/4
Minimum wellbore diameter: 76 mm

Electrical data

Motor model: MSE3
Input power - P1: 2.05 kW
Rated power - P2: 1.55 kW
Pump required power (P2): 1.35 kW
Power frequency: 50 Hz
Rated voltage: 1 x 200-240 V
Rated current: 11.2 amperes
Power factor: 1.00
Rated speed: 10700 revolutions per minute
Starting method: Directly start
Encapsulation level (IEC 34-5): IP68
Insulation Class (IEC 85): F
Cable length: 1.5 meters
Motor Number: 96160856
