SQ 5-70 Applicable to

1.Domestic groundwater intake
2.Boosting of domestic water supply
3.Groundwater intake

SQ 5-70 3 "multi-stage submersible pumps are used for domestic water supply, liquid transportation in water tanks, irrigation, and environmental applications. The pump is equipped with "floating" impellers, each with its own tungsten carbide/ceramic bearings. The pump is equipped with soft start and idle operation protection, including push up, overvoltage, undervoltage, overload, and overheating. This motor is a permanent magnet rotor single-phase motor that ensures optimal efficiency within various pressure ranges. The motor is equipped with replaceable end caps and comes with sockets.

Liquid

Transported liquid: water
Liquid temperature range: 0-35 ° C
Liquid temperature during operation: 20 ° C
Density: 998.2 kg/m³

Technology

The pump data is based on the pump speed on it: 10700 revolutions per minute
Rated flow: 5 m³/h
Rated head: 73 meters
Approvals: CE,PCBC,RCM,EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO
Curve tolerance: ISO9906:2012 3B

Installation

Maximum operating pressure: 15 bar
Pump outlet: RP1 1/2
Minimum wellbore diameter: 76 millimeters

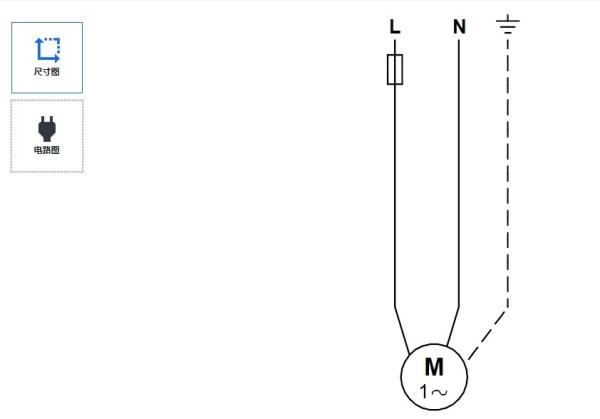

Electrical data

Motor model: MS3
Input power - P1: 2.46 kW
Rated power - P2: 1.85 kW
Pump required power (P2): 1.81 kW
Power frequency: 50 Hz
Rated voltage: 1 x 200-240 V
Rated current: 12.3A
Power factor: 1.00
Rated speed: 10700 revolutions per minute
Starting method: Directly start
Encapsulation level (IEC 34-5): IP68
Insulation Class (IEC 85): F
Cable length: 1.5 meters
Motor Number: 96160853

other

Net weight: 6.17 kg
Gross weight: 6.89 kg
Transport volume: 0.011 m3


Material Science

pump Stainless steel
EN 1.4301
AISI 304
impeller Composite
ZYTEL 70G30 HSLR PA6.6-GF30
electric machinery stainless steel
DIN W.-Nr. 1.4301
AISI 304
