Specifications
Brand Name :
Grundfos
Model Number :
TP 40-630/2
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months
Delivery Time :
within 15 workdays
Packaging Details :
Wooden Box
Liquid Temperature :
-40 .. 150 °c
Transferred Liquid :
Water
Liquid Temperature Range :
-25 .. 120 °c
Liquid Temperature During Operation :
20 °c
Density :
998.2 Kg/M³
Rated flow :
44.6 m³/h
Rated head :
49.9 m
Maximum Pressure at Specified Temperatur :
16 Bar / 120 °c
Description
TP 40 - 630/2 A - F - B - BQQE - NW1


A close - coupled single - stage volute pump with coaxial suction and discharge ports of the same diameter. This water pump is of an overhung design. For example, the power end (motor, pump head, and impeller) can be disassembled for maintenance while the pump casing remains connected to the pipeline. This water pump is equipped with a non - balanced rubber bellows seal. The shaft seal conforms to the DIN EN 12756 standard. The connection of the pipeline is achieved through a PN 16 DIN flange (conforming to EN 1092 - 2 and ISO 7005 - 2 standards). An asynchronous motor with a cooling fan is installed on the water pump.


Add to Compare Share
Single-stage In-line Pump
TP 40-630/2 A-F-B-BQQE-NW1
No. 99122937

Applicable to
Commercial Air Conditioning
Single-stage In-line Pump


 Grundfos TP 40-630/2 Single-stage volute pump Main Circulating Pumps for Large Commercial Air Conditioning Systems
Controller:
Frequency converter: None
Liquid:
Liquid conveyed: Water
Liquid temperature range: -25 .. 120 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³
Technology:
Pump speed on which pump data is based: 2930 revolutions per minute
Rated flow rate: 44.6 m³/h
Rated head: 49.9 meters
Actual diameter of impeller: 219 mm
Main shaft seal: BQQE
Shaft seal code: BQQE
Curve tolerance: ISO9906:2012 3B
Materials:
Pump casing: Cast iron
Pump housing: EN - GJL - 250
Pump casing: ASTM class 35
Impeller: Brass
CuZn37Pb
Installation:
Ambient temperature range: -30 .. 60 °C
Maximum operating pressure: 16 bar
Maximum pressure at specified temperature: 16 bar / 120 °C
Pipe connection standard: EN 1092 - 2
Interface type: DIN
Connection size: DN 40
Pressure rating for pipe connection: PN 16
Port spacing: 440 mm
Motor flange size: FF300

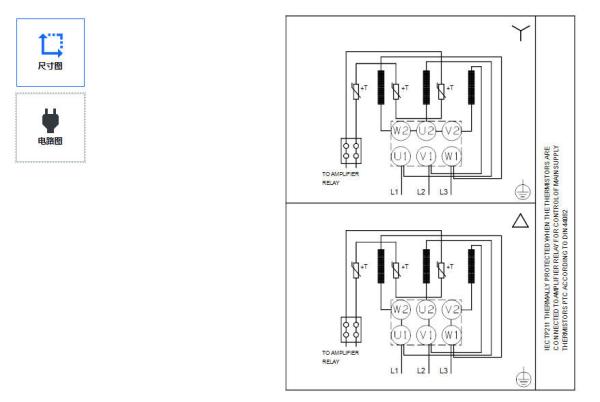

Electrical data:
Motor model: 160MA
Rated power - P2: 11 kW
Power supply frequency: 50 Hz
Rated voltage: 3 x 380 - 420D/660 - 725Y V
Rated current: 20.4 - 18.4/11.6 - 10.6 A
Starting current: 760 %
Cos phi - Power factor: 0.89
Rated speed: 2940 revolutions per minute
Efficiency: IE3 91.2%
IE efficiency class: IE3
Motor full - load efficiency: 91.2 %
Motor efficiency at 3/4 load: 91.2 %
Motor efficiency at 1/2 load: 90.2 %
Number of motor poles: 2
Enclosure class (IEC 34 - 5): 55 (Protect. water jets/dust)
Insulation class (IEC 85): F
Motor number: 92534902
Others:
Minimum Energy Performance Index, MEI ≥: 0.70
Net weight: 153 kg
Gross weight: 178 kg
Transport volume: 0.56 m³
