Specifications
Brand Name :
Grundfos
Model Number :
Crn
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Rated Flow Rate :
3 M³/H
Rated Head :
23.4 Meters
Pump Orientation :
Vertical
Maximum Ambient Temperature :
60 °C
Maximum Operating Pressure :
25 Bar
Liquid :
Water
Liquid Temperature Range :
-20 .. 90 °C
Liquid Temperature During Operation :
20 °C
Density :
998.2 Kg/M³
Description

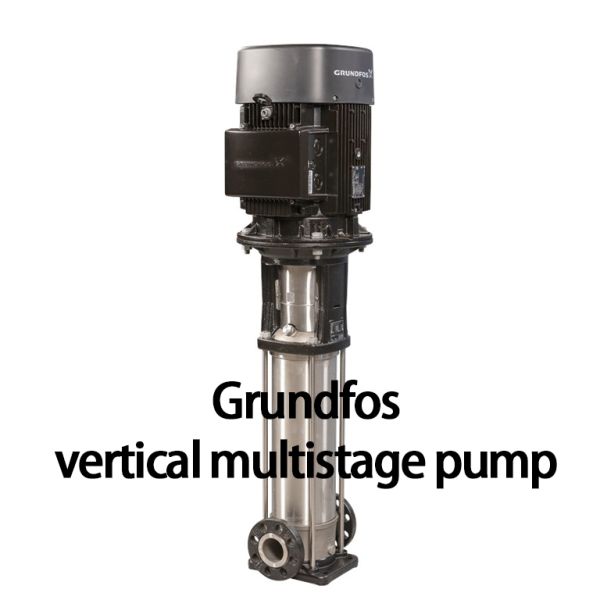

Grundfos CRN Water Pressure Booster Pump - Vertical Multistage Pump
CRN 3-5 A-FGJ-A-V-HQQV
Vertical multistage centrifugal pump with suction and discharge ports on the same horizontal level (in-line). The pump wetted parts are made of high-grade stainless steel. The cartridge shaft seal enhances machine reliability and operational safety while simplifying maintenance. Power is transmitted via a sleeve coupling. Pipe connections are realized through combined DIN-ANSI-JIS flanges. The pump is equipped with a 3-phase asynchronous motor with a cooling fan and a foot-mounted frame.
Grundfos Crn Water Pressure Booster Pump Vertical Multistage Pump
Liquid Specifications
  • Medium: Water
  • Liquid temperature range: -20 … 90 °C
  • Operating liquid temperature: 20 °C
  • Density: 998.2 kg/m³

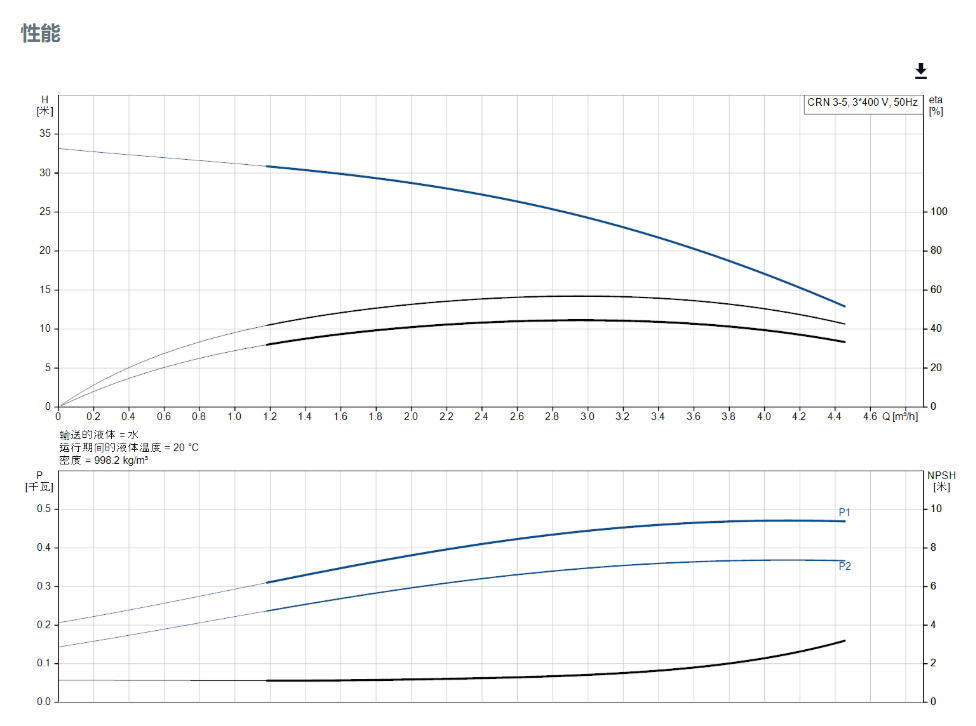

Technical Data
Pump speed for rated data 2873 rpm
Rated flow rate 3 m³/h
Rated head 23.4 m
Pump orientation Vertical
Shaft seal arrangement Single
Primary shaft seal HQQV
Shaft seal code HQQV
Approvals CE, EAC, UKCA, SEPRO, RCM
Drinking water approvals WRAS, ACS
Curve tolerance ISO9906:2012 3B
Materials
Type key, material code A
Type, rubber parts code (E=EPDM, V=FKM) V
Base material Stainless steel EN 1.4408 / AISI 316
Impeller material Stainless steel EN 1.4401 / AISI 316
Bearing material SIC
Installation Specifications
Maximum ambient temperature 60 °C
Maximum operating pressure 25 bar
Maximum pressure at rated temperature 25 bar / 90 °C, 25 bar / -20 °C
Connection standard DIN / ANSI / JIS
Inlet size DN 25/32
Suction port size 1 1/4 inch
Outlet size DN 25/32 / 1 1/4 inch
Pressure rating for pipe connection PN 25
Flange inlet rating 300 lb
Motor flange size FT85
Terminal box position 6

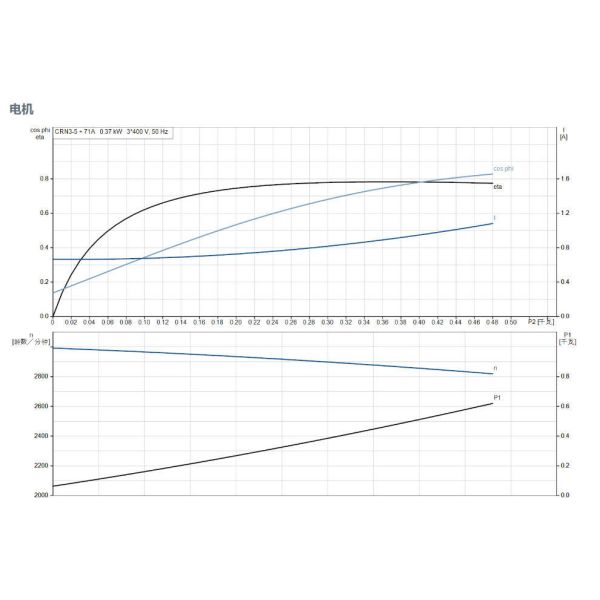

Electrical Data
Motor standard IEC
Motor type 71A
Rated power - P2 0.37 kW
Power required by pump (P2) 0.37 kW
Mains frequency 50 Hz

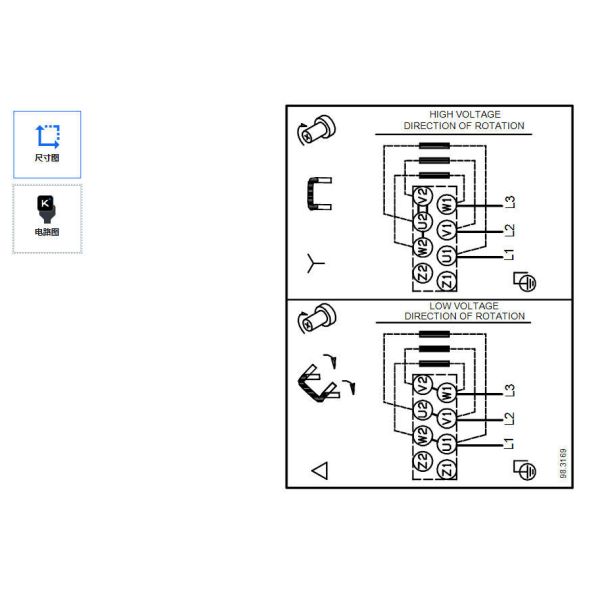

Rated voltage 3 x 220-240D/380-415Y V
Rated current 1.74/1.00 A
Starting current 490-530 %
Cos phi - Power factor 0.80-0.70
Rated speed 2850-2880 rpm
IE efficiency class IE3
Motor efficiency at full load 73.8 %
Motor efficiency at 3/4 load 79.0-76.5 %
Motor efficiency at 1/2 load 75.5-71.5 %
Number of motor poles 2
Protection class (IEC 34-5) IP55 Dust/Jetting
Insulation class (IEC 85) F
Motor number 85806102
Controller
Terminal box position 6
Frequency converter None
Other Specifications
Minimum Efficiency Index (MEI ≥) 0.70
Net weight 21.6 kg
Gross weight 24.2 kg
Shipping volume 0.054 m³
