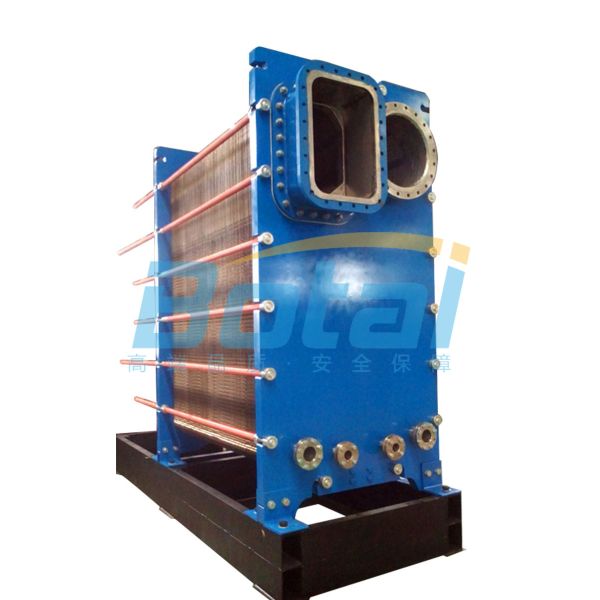

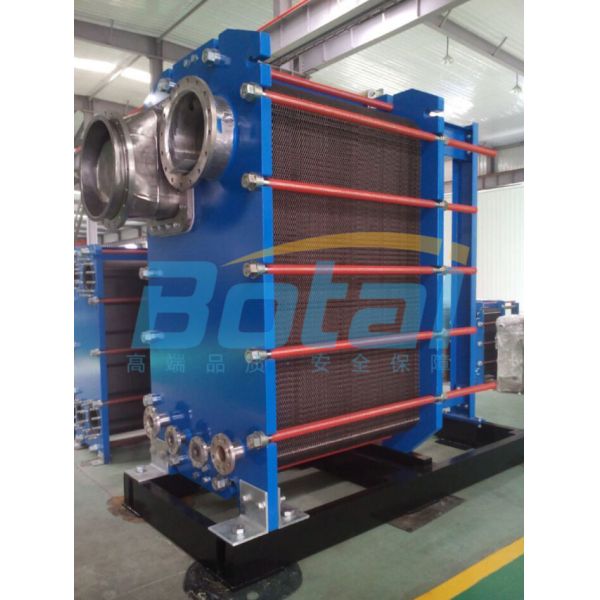

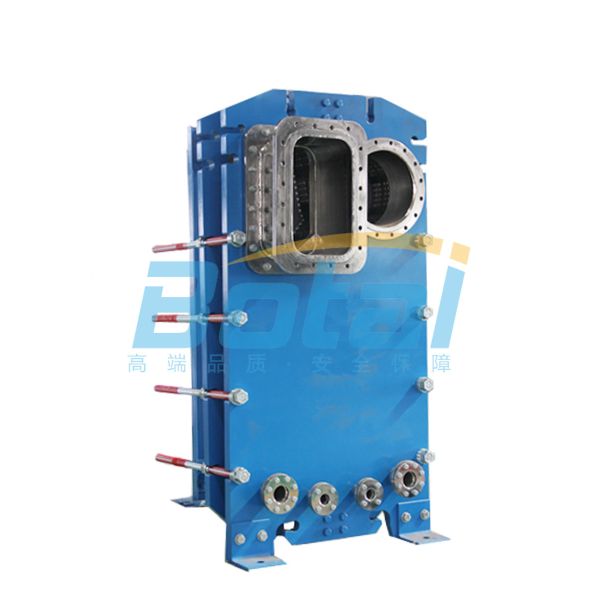

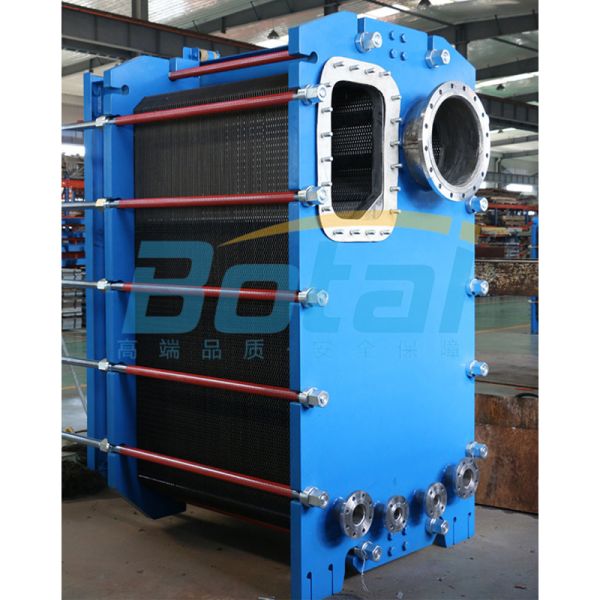

Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Specifications
Brand Name :
Botai
Model Number :
PRODUCT SERIES-1
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100
Delivery Time :
10 Working Days
Packaging Details :
Wooden box
Origio :
Tian Jin, China
Productioncapacity :
100000pieces/Year
Design Pressure :
2.2m/PA
Material Type :
SS304/SS316L
Description
Detachable Gasket Plate Heat Exchanger
Our company specializes in heat exchange equipment manufacturing, offering comprehensive services including production, sales, design, processing, and maintenance of heat exchange systems and related components. As a professional manufacturer of plate heat exchangers and heat exchanger plates, we deliver superior quality and performance.
With a 25,000 square meter facility featuring 18,000 square meters of building space, we maintain robust production capabilities. Our advanced equipment portfolio includes over 10 large-scale presses, multiple punching and shearing machines, and precision CNC, laser cutting, and laser welding systems, ensuring high-quality, large-scale production capacity.
We have developed more than 500 specialized molds, and our products serve diverse industries including chemical processing, power generation, heating, refrigeration, petroleum, shipping, and metallurgy. Our innovative heat exchangers, plates, and accessories have gained significant domestic market share and are exported to over 100 countries worldwide.
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
How Detachable Plate Heat Exchangers Work
Detachable plate heat exchangers consist of multiple heat exchange plates—thin metal sheets with corrugated grooves. These plates are sealed with gaskets around the edges and compressed by clamping studs at specific intervals. Corner holes form continuous channels where media enters and distributes between plates. Each plate features sealing gaskets and alternates in arrangement, allowing two separate fluids to flow counter-currently in their respective channels. Heat transfers from the hot medium through the plates to the cold medium, effectively cooling the hot fluid while heating the cold fluid.
Key Features and Benefits
  • High heat transfer coefficient for efficient thermal performance
  • Easy maintenance and cleaning capabilities
  • Low fouling factor for reduced maintenance requirements
  • Compact design with small footprint and lightweight construction
  • Flexible heat exchange area adjustment and process combination changes
  • Minimal terminal temperature difference
Performance Comparison
While detachable heat exchangers offer excellent versatility, they have lower temperature and pressure tolerance compared to semi-welded plate heat exchangers (SWPHE), fully-welded plate heat exchangers (WPHE), and brazed heat exchangers (CBE). They also demonstrate reduced corrosion resistance in certain applications.
Application Fields
Plate heat exchangers are extensively used across multiple industries for heating, cooling, evaporation, condensation, sterilization, and waste heat recovery applications.
Solar Energy Utilization
Chemical Industry
Steel Industry
Metallurgy Industry
Central Heating
Shipping
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
Detachable Gasket Plate Heat Exchanger
