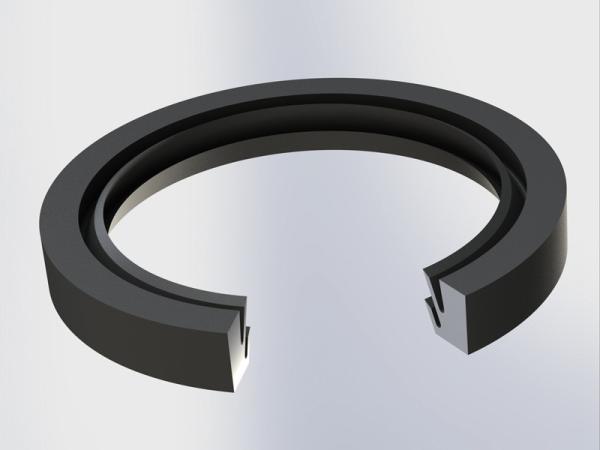

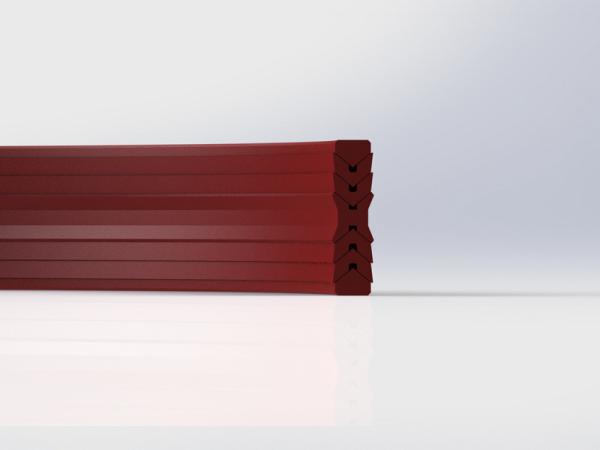

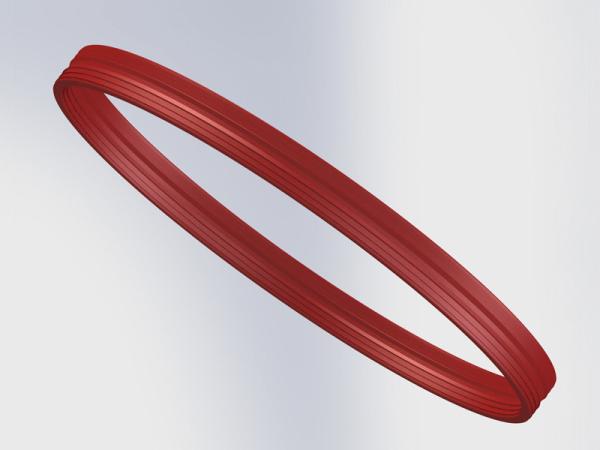

Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Elastomeric Polymer Two Way Rod Seals For High Pressure Industrial Hydraulic Cylinders
Specifications
Certification :
GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY
Place of Origin :
China
MOQ :
1
Price :
USD, CNY
Payment Terms :
T/T
Delivery Time :
15working days
Packaging Details :
Cartoon
Description
INDRON® seals and gaskets are more durable than ordinary bearing materials under various operation medium conditions, such as dry friction, water lubrication (clear water or water containing sand and shale), oil lubrication and grease lubrication, etc. and even the operation condition of impulsive loads. INDRON® oil and gas sealing material has excellent mechanical properties, good rigidity, toughness, hardness, wear resistance, small permanent compression set, excellent high and low temperature resistance, and excellent aging resistance. It is mainly used to prevent lubricating oil from leaking out or oil mist overflowing in the oil tank.
Various materials are available, including ELASTOMERIC POLYMER, PTFE, UPE, PU, LAMINATED COMPOSITES, FRP, CARBON, GRAPHITE, RUBBER, NBR, FKM, , TPE.

Performance Parameters
Density (1.90~2.00)g/cm³
Shore D Hardness 67.0~75.0
Glass Transition Temperature ≥250ºC
Tensile Strength ≥38Mpa
Bending Strength ≥80Mpa
Compressive Strength ≥70Mpa
Impact Strength ≥7.0KJ/m²
Coefficent of Friction 0.12~0.18
Volume Resistivity ≤50
Bearing(lining) INDRON®TSTN INDRON®HRBR INDRON®HAWF INDRON®UNIV INDRON®PLAT
Material Synthetic Engineering Elastomers Synthetic Engineering Elastomers Synthetic Engineering Elastomers Synthetic Engineering Elastomers Synthetic Engineering Elastomers
Recommended
Workplace		 Guide
Bearings &
Seals		 Guide
Bearings&
Seals		 Guide
Bearings &
Seals		 Guide vane.
connecting
rod bushing		 Guide vane,
connecting
rod bushing
Temperature Limit 70℃ 70℃ 70℃ 70℃ 70℃
Dry Rub Yes low speed low speed Yes Yes
Acid Resistance limit limit limit limit limit
Alkaline Resistant limit limit limit limit limit
Hydrocarbon Suitability Yes Yes Yes Yes Yes
Abrasion Resistance good excellent excellent good good
Friction Pair(bushing) bronze HRC40 HRC40 HRC40 HRC40
Stainless recommend recommend recommend recommend
Typical Application water, sea
water		 water, sea
water		 water, sea
water		 water, sea
water		 water, sea
water
Most fluids
(pH 5-10)		 Most fluids
(pH5-10)		 Most fluids
(pH5-10)		 Most fluids
(pH 5-10)		 Most fluids
(pH5-10)
Note

Lowest coefficient of friction,

suitable for dry running applications, good wear resistance

 Use silt water under moderate grinding conditions Use ofsilt-containing water under high grinding conditions. Contains abrasion resistant high load capacity high load capacity
