Specifications
Place of Origin :
china
MOQ :
1
Price :
USD 3000~2000000
Payment Terms :
L/C, T/T
Delivery Time :
15 working days to 180 workings days
Packaging Details :
wooden box or pallet
Supply Ability :
30 lines per yea
Product Name :
Bottle Blowing Machine
Automation :
Fully automatic
Cap Type :
plastic screw cap
Customize :
Available
Color :
sliver
Weight :
2000kg
Description

Customizable and Durable Beverage Industry PET Bottle Blowing Machine for Consistent Results

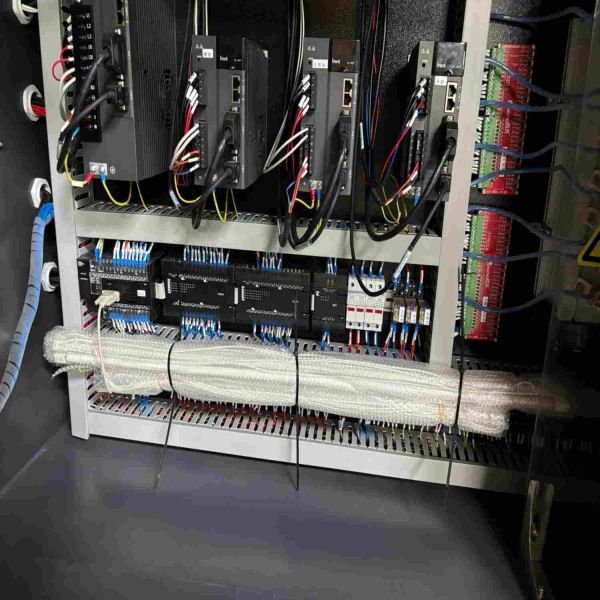

Our bottle blowing machine is equipped with an intelligent PLC touchscreen control system—a feature not only simplifies operation for new users (with one-click startup and preset production modes) but also allows real-time monitoring of key metrics like temperature, pressure, and output. This system seamlessly connects to your factory’s MES platform, enabling remote troubleshooting and production data analysis to optimize workflow efficiency.

It also excels in multi-material compatibility, handling not just common PET and HDPE but also eco-friendly PLA and heat-resistant PP for specialized needs (e.g., hot-fill juice bottles or biodegradable cosmetic containers). Certified by CE and FDA, it meets global safety and hygiene standards, making it suitable for food, pharmaceutical, and daily chemical industries alike. The compact footprint design further saves workshop space, a practical advantage for small-to-medium factories or production lines with limited area.

Top-Tier Performance: Large Production Volume, Reduced Power Usage, Superior QualityEnhanced Operational Confidence: Minimal Breakdowns, Easy Upkeep, Longer Service LifeStronger Market Edge: Proprietary Patented Design + Premium Industrial Components = Uninterrupted Steady Output

Extended Track for Consistent PerformanceGuaranteed Non-Stop High-Speed Production: An extra-long sorting track eliminates preform jams entirely, keeping operations smooth and productive.

Precise Preform Handling

100% Reliable Pickup: Smart preform extraction technology avoids missed picks, cutting down on material waste and equipment idle time.

Ultra-Durable Precision Rails: Fitted with industry-leading guide rails that handle heavier loads, maintain accuracy, and resist deformation over time.

Energy-Saving, Stable Transport: Intelligent preform detection—no activity when no preforms are present—lowers unnecessary power use and mechanical wear.

Dual Servo Clamping System

Servo Clamping with Integrated Base-Mold Linkage: Delivers threefold improvements in efficiency, energy savings, and dependability.

Easier Maintenance: Innovative pressurized baseplate support simplifies and speeds up upkeep tasks.

Digital Servo Stretching

High-Speed, High-Precision Stretching: Gear-rack construction enables industry-leading stretching speeds while ensuring product accuracy; standardized design makes maintenance quicker and simpler.

Bottle Ejection System (Longsun’s Patent): Faster mold changes—no need to disassemble bottle discharge parts.

Automatic Lubrication:

Dramatically extends equipment life.

Lowers yearly maintenance expenses.

Removes risks linked to manual lubrication.

Series/Model Gseries LXG-6-40 LXG-7-40 LXG-9-40 LXG-6/2-40 LXG-8/2-40 LXG-4/5-60 LXG-2/10-60 LXG-1/15-80 LXG-2/15-80 LXG-1/20-90

Technical parameter

 (L)Maximum bottle capacity 0.75 0.75 0.75 2 2 6 12 15 15 20
(MM)Maximum bottle diameter Φ72 Φ72 Φ72 Φ110 Φ110 Φ185 Φ215 Φ250 Φ250 Φ290
(MM)Maximum bottle height 250/350(1.5L) 250/350(1.5L) 250/350(1.5L) 350 350 380 420 450 460 500
Number of heating units* 4 4 8 4 4 6 6 4 6 4
Designed production capacity(bph) 14000(0.5L) 15000(0.5L) 20000(0.5L) 9000(1.5L) 12000(1.5L) 4000(5L) 1800(10L) 1000(15L) 1500(15L) 800(20L)
Number of mold cavities 6 7 9 6 8 4 2 1 2 1
(m³/min)HP air consumption 6 8 10 9 12 12 10 5 13 8
(KW)Installation power 85 85 156 85 85 116 116 145 205 145
(KW)Service power 32 32 45 40 40 45 45 35 50 50
