Specifications
Price :
2000~300000USD
Capacity :
165-300 Bottles
Delivery Time :
30 working days to 180 workings days
Color :
Customized
Payment Terms :
T/T,L/C
Type :
Self Adhesive Labeling Machine
MOQ :
1
Material :
SUS304
Packaging Details :
wooden box or pallet
PLC :
German Beckhoff
Supply Ability :
50 units per year
Weight :
Approx. 6000kg
Description
Fully Automatic Self-Adhesive Labeling Machine with Beckhoff PLC Vision System
Overview

This medium-speed rotary automatic labeling machine serves as a balanced entry-level solution for continuous bottle labeling, built on over a decade of internal R&D and integrated premium German automation technologies.

Fitted with eighteen labeling stations, it delivers a steady output ranging from 18,000 to 22,000 bottles per hour, with actual throughput fluctuating based on workpiece outlines, physical dimensions and label widths.

Key Features
  • Exclusive dual active pressure roller feeding structure for consistent tension control
  • Proprietary design eliminates die-cut induced label breakage
  • Beckhoff PLC core control system with ABB servo motors
  • Schneider dual interlocked human-machine touchscreens
  • Secondary movable touchscreen for simplified mold and label switching
  • Independent servo unwinding and feeding rollers with servo edge correction
  • Premium components including SICK sensors, Leuze detectors, and Festo pneumatic modules
  • Rotary encoders synchronize labeling movements with line speed
  • SUS304 stainless steel contact surfaces with carbon steel frame
  • Quick-release bottom molds eliminate repeated calibration
  • Independent air-conditioned electrical cabinet with complete protection
  • Korean automatic central lubrication system
Technical Specifications
Stations 18 stations
Power Supply 380V 50Hz 13KW
Production Speed 18,000-22,000 BPH (Varies by workpiece shape, size & label width)
Speed Regulation Stepless speed control
Labeling Accuracy ±1mm (Depends on workpiece profile)
Label Dispensing Accuracy ±0.2 mm
Core Inner Diameter φ76.2 mm
Maximum Roll Diameter φ500 mm
Label Height 35-140 mm
Applicable Workpiece Diameter ≤108 mm
Operating Air Pressure 5 kg
Conveying Height 1100mm (Customizable per layout requirements)
Overall Dimensions L3000 × W2070 × H2300 mm
Machine Weight 4000kg
Applications

Ideal for mid-volume beverage, daily chemical and pharmaceutical production lines that prioritize stable efficiency and space-saving layout.

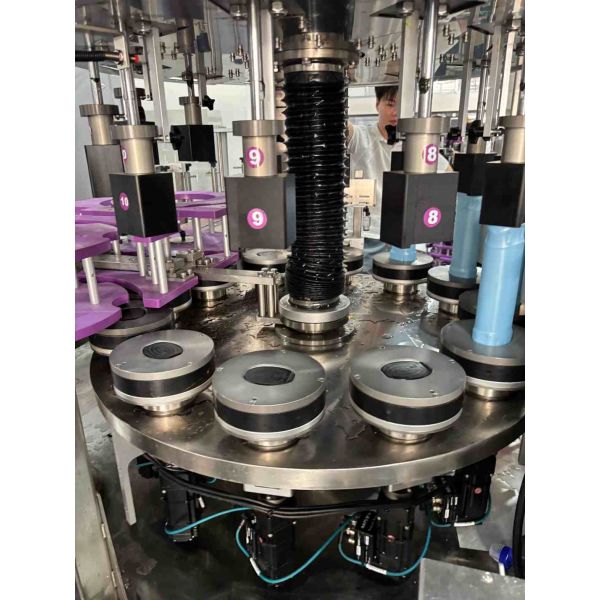

Product Images
Fully Automatic Self-Adhesive Labeling Machine with Beckhoff PLC and 18 Labeling Stations in SUS304 Stainless Steel Fully Automatic Self-Adhesive Labeling Machine with Beckhoff PLC and 18 Labeling Stations in SUS304 Stainless Steel Fully Automatic Self-Adhesive Labeling Machine with Beckhoff PLC and 18 Labeling Stations in SUS304 Stainless Steel Fully Automatic Self-Adhesive Labeling Machine with Beckhoff PLC and 18 Labeling Stations in SUS304 Stainless Steel
