Specifications
Brand Name :
AFC
Model Number :
A2A5
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1
Price :
USD RMB
Payment Terms :
L/C, T/T
Supply Ability :
Based on order
Delivery Time :
15-60 days
Packaging Details :
Plywood cases
Material :
Ductile iron GJS500-7
Pilot Material :
SS304
standard :
EN1074-5
Color :
Blue
Diaphragm :
Nylon Reinforcement with EPDM
Rubber :
EPDM
Description

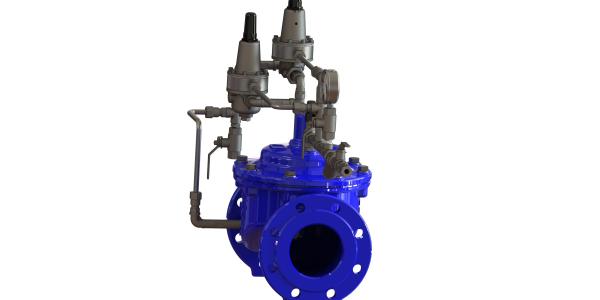

Nylon reinforced Surge Anticipating Relief Valve , Ductile Iron Water Hammer Valve

A2A5 is a surge anticipation valve which consists of

1. Main valve

2. Needle valve

3. Anticaipating pilot

4. Relief pilot

5. Preaction of open valve when system pressure drop down to certain pressure

Features:

• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems

Service Fields:


For water system, irrigation system.

Technical Data:

Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Nylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water HammerNylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water Hammer

Nylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water Hammer

DN400-DN800

Nylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water HammerNylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water Hammer

Nylon Reinforced Surge Anticipating Relief Valve Ductile Iron Water Hammer
