Specifications
Brand Name :
AFC
Model Number :
A400
Place of Origin :
China
Payment Terms :
L/C, T/T
Supply Ability :
based on order
Delivery Time :
15-60 days
Packaging Details :
Plywood cases
Certification :
EN1074-5
MOQ :
1
Price :
USD RMB
Material :
Ductile iron - GJS500-7
Pilot Material :
SS304
Standard :
EN1074-5
Diaphragm :
Nylon Reinforcement With EPDM
Color :
Blue Ral5010
Control pipe :
Stainless Steel 304
Description

Constant Flow Rate Control Flow control valve Ductile Iron Portable Water Nylon Reinforcement Stainless Steel Pilot​

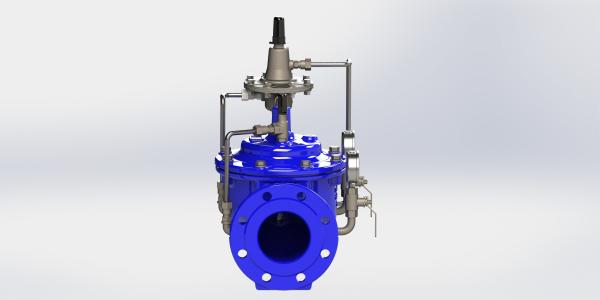

A400 is a flow control valve which consists of

1.Main valve

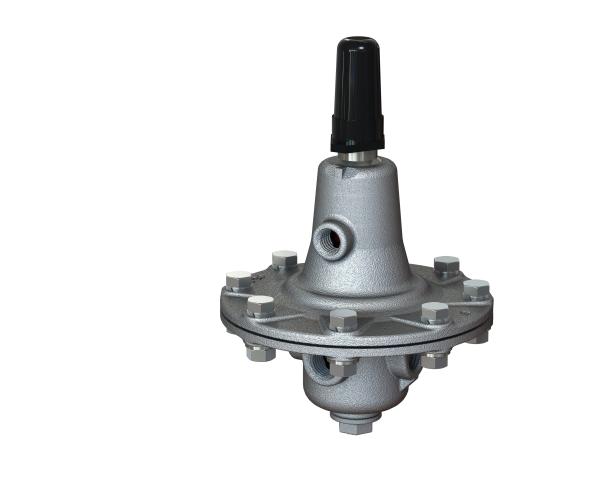

2.Plus an orifice plate kit and flow pilot-P400

3.Pre-selected max. flow rate

4.Regardless of changing line pressure

5.Responds to the differential pressure across the orifice

6.Flow rate can be adjusted thru pilot screw

Service Fields:


For water system, irrigation system.

Technical Data:

Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Ductile Iron Flow control valve Nylon Reinforcement Stainless Steel PilotDuctile Iron Flow control valve Nylon Reinforcement Stainless Steel Pilot

Ductile Iron Flow control valve Nylon Reinforcement Stainless Steel Pilot

DN400-DN800

Ductile Iron Flow control valve Nylon Reinforcement Stainless Steel PilotDuctile Iron Flow control valve Nylon Reinforcement Stainless Steel Pilot

Ductile Iron Flow control valve Nylon Reinforcement Stainless Steel Pilot
