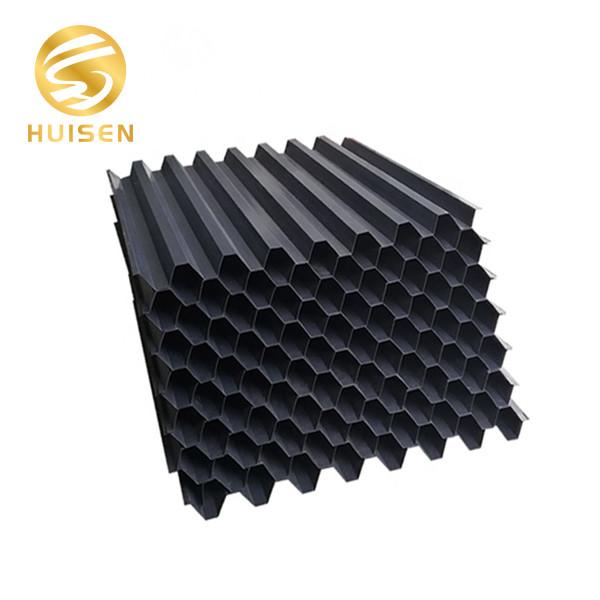

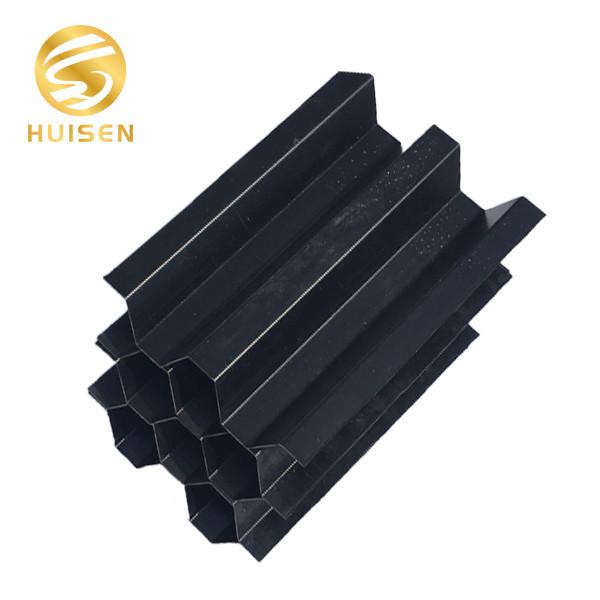

Black PVC Tube Settler Lamella UV Protection For Clarifier Tank

The Tube settler media is a sedimentation device developed in the theory of shallow pond, which is very suitable in different clarifiers and removing sand equipments.

Tube settler media can made of two materials, PP and PVC. Different material has different install method, PP tube settlers is sticked by hot melt and PVC material is sticked by PVC glue.

PVC tube settler is UV protection because of PVC material's characteristics. PP material don't have this characteristics, but if customers want UV protection, we can add other materials inside to create this characteristics.

Tube settler media is most widely used and mature water treatment equipment in water supply, drainage engineering and water treatment sedimentation tank and precipitation equipment.

It has a wide application, high handling efficiency, small area, etc. And tuber settler media has below features:

1. Small laminar flow state, the particle settlement isn’t disturbed by turbulence;

2. When the pipe chute length is 1m, the effective load is designed according to 3-5 tons/m².h,VO is controlled within the range of 2.5-3.0 mm/s, and the water quality is the best;

3. Glass steel honeycomb tube is used at the intake port, the pipe length is 2.0-3.0m, and it can be safely run in the high turbidimetric content of 50-100kg/m³;

4. Using the pipe chute sedimentation tank, the processing capacity is 3-5 times of the horizontal flow sedimentation tank,and 2-3 times of the acceleration clarifying tank and the pulse clarifying pool .

Technology Parameter

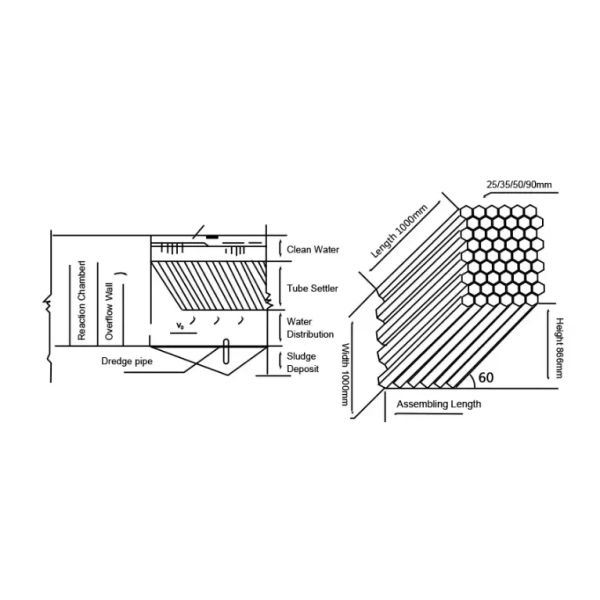

Working Principle

It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.
The modular and cubical self-supporting settler design of honeycombed inclined tube settler aids handling during installation and any subsequent maintenance.
