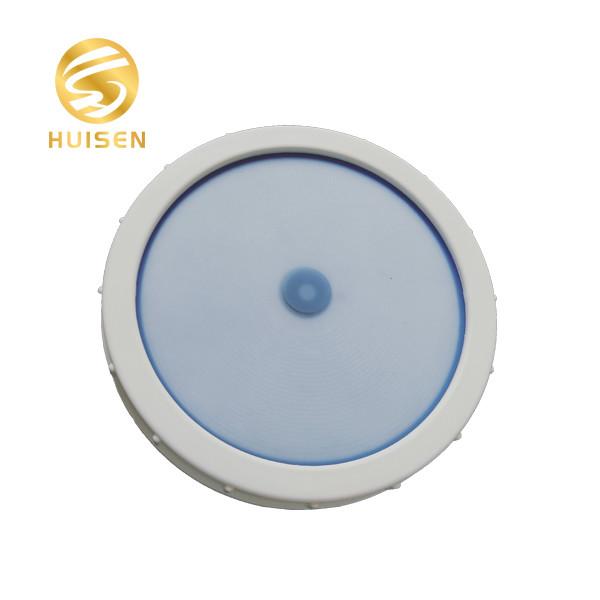

350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
350mm 13 Silicone Membrane Aeration Disc For Pond Aeration System
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HUISEN
MOQ :
100 Pieces
Price :
$9.98
Payment Terms :
T/T, Western Union
Delivery Time :
According to the quantity
Packaging Details :
Carton
Material :
Silicone + ABS
Weight :
1.141kg
Size :
350mm
Warranty :
1 YEAR
Application :
Aeration system
Air flow :
5-6m3/h
Service area :
0.5-0.75m2
Product name :
350mm 13" Silicone membrane pond aeration system diffuser air fine bubble aerator
Description
350mm 13
Fine bubble disc diffused aeration system, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.
350mm 13
1. Membrane is imported material (Silicone) ;
2. Low-resistance membrane opens easily ;
3. Large aeration service area;
4. The sludge comes off smoothly;
5. The aeration diaphragm has sufficient extension;
6. Good sealing performance around mechanized assembly;
7. Strong overall strength and long service life.
350mm 13
Model
HSPD215
HSPD260
HSPD350
Type
Plate Type
Size
8 inch
10 inch
13 inch
MOC
EPDM membrane
ABS carrier plate
Connector
3/4"NPT male thread
Bubble Size
1-2mm
Flow Range(m³/h)
1-6
1-8
1-15
Design Flow(m³/h)
1.5-2.5
3-4
7-8
STOE
≥38%(6m submerged)
STOR(kg O2/h)
≥0.31
≥0.42
≥0.90
SAE
≥8.9kg O2/kw.h
Headloss
2000-4500pa
Service Aera(m2)
0.2-0.64
0.25-1.0
0.5-0.75
Service Life
>2 years

350mm 13
350mm 13
