Anthracite Coal Mining 4 Teeth Roller Crusher
Anthracite Coal Mining 4 Teeth Roller Crusher
Anthracite Coal Mining 4 Teeth Roller Crusher
Anthracite Coal Mining 4 Teeth Roller Crusher
Specifications
Brand Name :
Hengyang
Model Number :
HC-470
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
57000-356400
Payment Terms :
T/T
Supply Ability :
270 sets/month
Delivery Time :
20-40 days
Packaging Details :
negociated
Name :
anthracite coal mining 4 teeth roller crusher
Application :
coal mining
Function :
crushing
Capacity :
3000kg/h-550000kg/h
Condition :
New
Color :
customize
Description

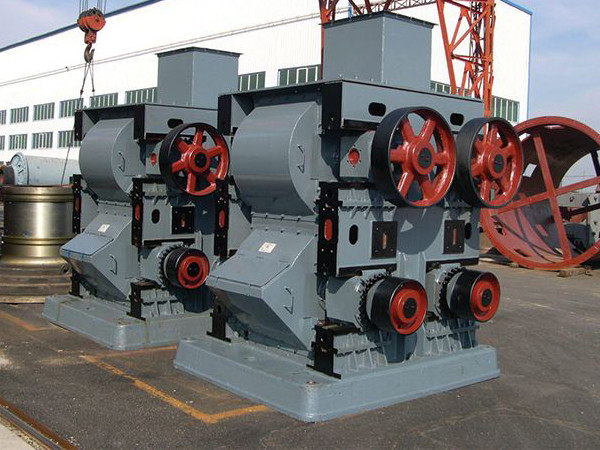

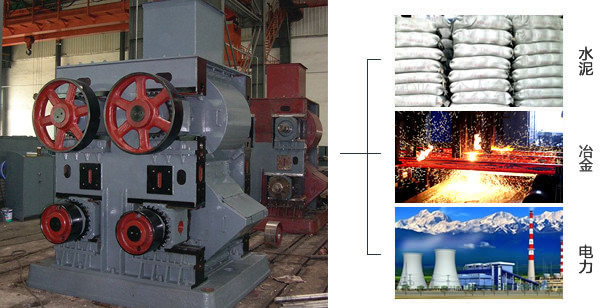

Hengyang Four Roller coal crusher machine,Teeth roller coal crusher machine with 100% non gluing and plugging is a new type crusher Which mainly used to crush medium and low hardness brittlematerials, for example coal, soft coal, coal gangue, lignite, sinter, shale, coke limestone and etc.

Anthracite Coal Mining 4 Teeth Roller Crusher

Four roll crusher crush material by high extrusion pressure and shear force generated four high-strength wear-resistant rollers relative rotation, after the material into the top two rollers (V-type crushing chamber),the materials bear the squeeze pressure generated relative rotation of the upper two rollers, after the first time the materials is crushed (coarse broken), then into the middle of two counter-rotating rolls, after the scond time the materials is crushed (fine broken), the last into the next two rolls, the materials is crushed again (super fine broken),after broken to the desired size, then sent by the transport equipment.
(only applies to the four roll three step broken model)
Model
Feed siz(≤mm)
Discharge size (≤mm)
Processing capacity
(t/h)
Motor power (kW)
4PG0404
≤25
0.1-5
3-30
11
11
4PG0605
≤40
0.1-5
5-70
15
15
4PG0608
≤40
0.1-5
8-90
18.5
18.5
4PG0809
≤60
0.1-5
12-120
22
22
4PG0812
≤60
0.1-5
20-180
37
37
4PG1012
≤80
0.1-5
30-220
45
45
4PG1212
≤90
0.1-5
45-320
75
75
4PG1216
≤90
0.1-5
55-400
90
90
4PG1218
≤90
0.1-5
70-500
110
132
