Plastic Mill
Plastic Mill
Plastic Mill
Plastic Mill
Specifications
Brand Name :
Hengyang
Model Number :
HC-633
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
3000-150000
Payment Terms :
T/T
Supply Ability :
270 sets/month
Delivery Time :
20-40 days
Packaging Details :
negociated
Name :
Plastic Mill
Materials :
SS Steel
Condition :
New
OEM :
Accept
Application :
materials grinding
Description

Working Principle

MKL-CFB Plastic mill forms a complete set of crushing system with an air compressor, cyclone separator, dust collector and induced draft fan. After being filtered and dried, the compressed air is sprayed at high speed through the De Laval Nozzle into the crushing chamber, where the materials are crushed by repeatedly colliding, grinding and shearing at the intersection of multiple high-pressure air streams. Later the crushed materials move with the rising air stream to the grading area under the force of the fan, where the strong centrifugal force generated by the high-speed rotating grading turbine separates the coarse and fine materials. The fine particles that meet the particle size requirements pass through the grading wheel and are collected in the cyclone separator and dust collector, while the coarse particles descend to the crushing area for further crushing, so that the crushed powder reaches a micron or submicron state.

Grinding equipment Models and Parameters

Models / Parameters MKL-CFB350 MKL-CFB450 MKL-CFB650
Air Consumption (m3/min) 6.5—10.0 12.0—18.0 28—42
Production Capacity(kg/h) 250 500 1200
Product Particle Size(μm) 0.5-8.0 0.5-8.0 0.5-8.0
System Power (KW) 110 180 320
Crushing Pressure (MPa) 0.65—1.0 0.65—1.0 0.65—1.0
Mass of Main Machine, kg 270 530 1050
Size of Main Machine, mm 920×850×1620 1190×1150×2030 1420×1300×2825

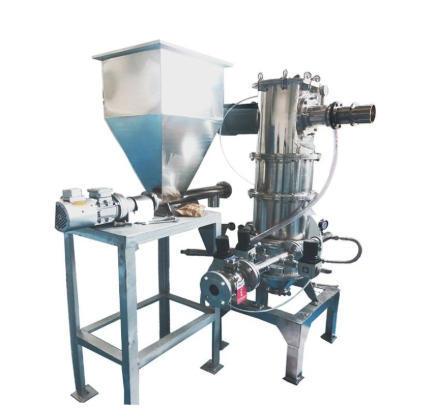

Complete set diagram:

Plastic Mill
