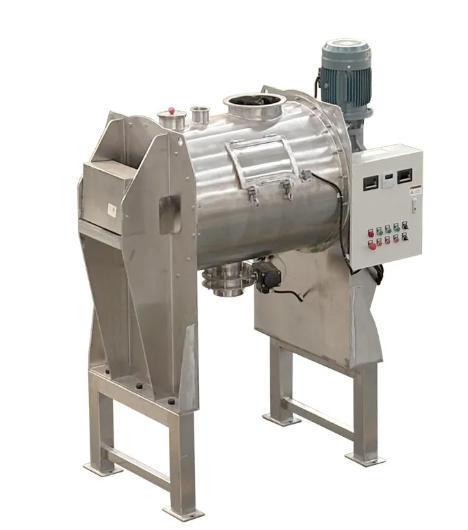

Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Specifications
Brand Name :
Hengyang
Model Number :
HC404
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
5600-76000
Payment Terms :
T/T
Supply Ability :
300sets/month
Delivery Time :
20-30 days
Packaging Details :
Negociated
Name :
Plow Mixer
Power :
1-50kw
Application :
Food, Chemical, Pharmaceutical Industries
Material :
SS304,SS310,SS904
Temeperature Control :
Thermostat
Function :
Mixing
OEM :
Accept
Description
Plow Mixer for Uniform Mixing of Powder Materials
High-efficiency mixing equipment for chemical, food, pharmaceutical, and building materials industries.
Product Specifications
Name Plow Mixer
Power 1-50kw
Application Food, Chemical, Pharmaceutical Industries
Material SS304, SS310, SS904
Temperature Control Thermostat
Function Mixing
OEM Accept
Product Overview
The plough knife mixer is an efficient powder mixing equipment featuring a plough knife type mixer inside its cylinder. During operation, high-speed rotating plough knives create a fluidized material state while axial blades ensure circumferential movement along the cylinder wall. Combined with fly knife groups for shearing and dispersion, it achieves uniform mixing of various powders and granular materials quickly.
Working Principle
The plough mixer operates through multi-dimensional mechanical movements. Plough blades rotate at 60-100 RPM to create fluidized material ejection while axial blades ensure circumferential circulation. Scrapers guide vertical material flow, and flying blades (2000-3000 RPM) shear agglomerates, achieving over 99% mixing precision through turbulent diffusion and convection.
Structural Features
Designed with a U-shaped or trough-shaped stainless steel cylinder featuring polished inner walls to reduce adhesion. Includes top flange feeding, bottom butterfly valve discharging, and features multiple wear-resistant plough blades. The system incorporates adjustable flying blades, high-strength alloy steel main shaft, variable-frequency transmission, and advanced sealing systems with dust collection interfaces for clean production compliance.
Key Advantages
  • High mixing efficiency: Achieves 99% uniformity in 10-15 minutes, 50% more efficient than traditional equipment
  • Superior dispersion: Flying knives operate at 2000-3000 RPM for effective aggregate breaking
  • Material versatility: Handles powders, particles, fibers, and viscous materials with large density differences
  • Optimized design: U-shaped wear-resistant cylinder with polished interior and <0.1% dust leakage
  • Modular functionality: Supports integration of heating/cooling jackets and liquid spray systems
  • Scalable production: Capacity from 50kg to 20 tons with PLC automation support
Technical Specifications
Model LDH-300 LDH-1000 LDH-2000 LDH-3000 LDH-4000
Working volume (L) 300 1000 150 200 4000
Stirring speed (rpm) 60 60 60 60 60
Stirring motor (kw) 5.5 11 22 30 37
External dimensions (mm) 1200×500×950 2300×980×1500 2900×1030×1750 3300×1150×1950 4000×1250×2200
Weight (kg) 520 1350 1910 2450 3020
Production Line Configurations
Configuration A: Continuous vacuum feeder suction feeding → mixing → silo
Configuration B: Ton bag hoisting feeding → mixing → straight ton bag packaging
