High-intelligence Unmanned Unltra-fine Powder Production Line
High-intelligence Unmanned Unltra-fine Powder Production Line
Specifications
Supply Ability :
30sets/month
Place of Origin :
China
Model Number :
batch ball mill
Delivery Time :
25-40 days
MOQ :
1
Packaging Details :
Negociated
output size :
2500-3000mesh
Payment Terms :
T/T
Voltage :
up to buyer
Price :
12000-55700USD/set
Capacity :
1-20t/h
Automatic :
full-auto
Brand Name :
hengyang
Certification :
ISO9001
OEM :
Accept
Description

The high-inteligent unmanned batch grinding technology is an advanced grinding process that combines the characteristics of automation, intlli-
product quality.
Intermittent operation: It is suitable forsmall-batch and multi-variety production,with low energy consumption.
The raw materials are transported into the intermittent grinder for grinding through a quantitative metering and automatic conveying
device. After the grinding is completed. the grinding door of the grinder is automaticaly replaced with a material throwing grate plate formaterial throwing. The thrown materials are sent to the finished product storage bin for storage through the conveying system.

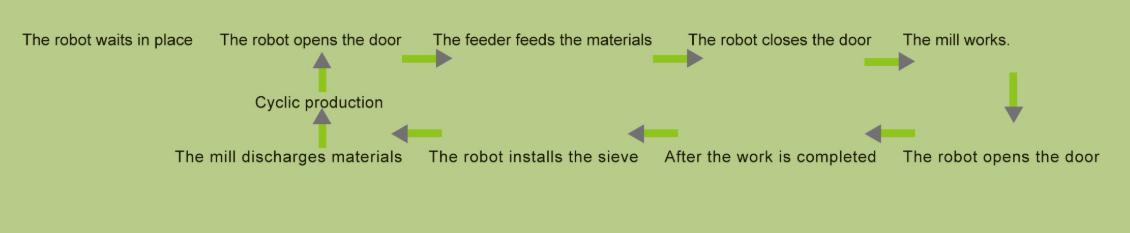

The automatic process of the mill and the mill door sieve:
The grinding door opens automatically--It is replaced with a grinding door screen and tightened automatically--The
grinding mill discharges materials--After the material discharge is completed--The grinding door screen is automaticallyremoved--Automatic feeding is carried out After the feeding is completed, the grinding door is automatically replaced and tightened automatically -- It enters the grinding state.High-intelligence Unmanned Unltra-fine Powder Production Line

Application

High-intelligence Unmanned Unltra-fine Powder Production Line

Technical Details

Model

1000

2000

3000

5000

8000

10000

15000

20000

Loading Capacity (t)

1-2

2-3

3-5

3-6

5-8

8-13

11-18

15-24

Rotary Speed (r/min)

22.6

21.4

20.6

19.8

19.1

17.9

16.8

16.4

Motor Power (kw)

75

90

132

185

220

320

630

800

Fineness (um)

1-5

1-5

1-5

1-5

1-5

1-5

1-5

1-5

Reference Dimensions

JXM2021

JXM2225

JXM2431

JXM2635

JXM2840

JXM3245

JXM3650

JXM3860

High-intelligence Unmanned Unltra-fine Powder Production Line
