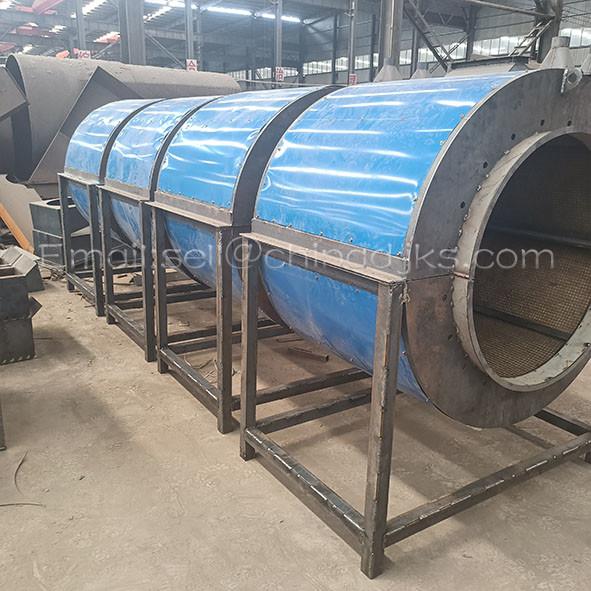

Electric Heat Rotary Drying Equipmen Indirect Heating
Electric Heat Rotary Drying Equipmen Indirect Heating
Electric Heat Rotary Drying Equipmen Indirect Heating
Electric Heat Rotary Drying Equipmen Indirect Heating
Specifications
Brand Name :
Hengyang
Model Number :
HC-245
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
5200-69120USD/set
Payment Terms :
T/T
Supply Ability :
300Sets/month
Delivery Time :
20-40 days
Packaging Details :
Negotiated
Condition :
New
Warranty :
TWO YEARS
After-sales service provided :
Engineer oversea service
Application :
INDIRECT HEATING
Color :
Customized
Usage :
Drying
Heating source :
ELECTRIC
Description

Zhengzhou Hengyang Industry has been active in drying technology for more than 40 years. The Hengyang drum dryers are globally recognized as state-of-the-art drying technology.

Feeding /discharge

Automatic and continuous. Vibrators, screw feeders, rotary airlocks, double flap valves, gravity chutes

Feed Characteristics

Powders, granules, non friable agglomerates, large solid particles. Low to high feed rates

Heat Source

Electricity

Exposure

Mostly Direct. Flow is co-current or countercurrent. Flow is a combination of through the bed, cross, co-current or countercurrent for rotation. Residence time Controllable.

Extraction

Normally induced. Systems can have combustion, forced and induced draft fans for operation.

Dust Collection

Cyclones, bag houses, scrubbers, Electrostatic precipitators. Systems require dust collection.

Control

PLC, infrequently solid state controllers. System controls on discharge temperature. Can modulate energy and feed.

Electric Heat Rotary Drying Equipmen Indirect Heating


Benefits

  • High throughput
  • Forgiving Operation
  • Low cost - Higher for louvre
  • Gentle handling for louvre dryer
  • Very intimate product contact for louvre dryer
  • Robust
  • Can handle variations in feed although the product may be inconsistent
  • High temperature operation - can be refractory lined.
  • Unit can have integral cooling section.

Electricity-Heating Sources Rotary Drum Dryer Technical Details

Type Spec Dia of Roll Length of roll Gradient Speed(rpm) Weight(t) Motor Power(kw) Heating Power (KW)
HY600 φ 0.6× 8 φ 600 8m 3-5 8 5.1 4/6p 45
HY800 φ 0.8× 10 φ 800 10 m 3-5 7.2 6.9 4/6p 60
HY1000 φ 1.0× 10 φ 1000 10m 3-5 6.73 7.5 5.5/6p 90
HY1200 φ 1.2× 12 φ 1200 12m 3-5 5.8 13.1 11/6p 120
HY1500 φ 1.5× 12 φ 1500 12m 3-5 4.8 22.3 15/6p 150
HY2200 φ 2.2× 14 φ 2200 14m 3-5 3.2 52.8 30 200
HY2400 φ 2.4× 18 φ 2400 18m 3-5 3 73.3 37 300
HY2800 φ 2.8× 24 φ 2800 24m 3-5 2.59 97 75 400
