Specifications
Brand Name :
Bioclean
Model Number :
XGH5100TSLD6NGD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
6680-7800usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
XGH5100TSLD6NGD
Energy type :
Diesel
Dimension(L x W x H) :
9850,9880,9905,8920,8950,8975,9800×2550×3400,3450,3350,3270,3300(mm)
Chassis :
DFH1180EX8
Engine :
D6.7NS6B260
Curb Weight :
14080,14500,13700(Kg)
Rated Loading :
3790,3725,3370,3305,4170,4105(Kg)
Total Mass :
18000(Kg)
Max.Speed :
89,98(km/h)
Sweeping Width :
2.5m
Sweeping Efficiency :
93%
Maximum Sweeping Speed :
20km/h
Maximum Inhaled Particles :
110mm
Description

ZBJ5181TSLD6 18ton diesel street road sweeper truck

1. Core Functions and Parameters

This vehicle is mainly used for road cleaning. It is equipped with core devices such as a box, a cleaning device assembly and an anti-collision buffer device, which can efficiently clean road garbage.
Only 5300mm wheelbase is used, and there are multiple corresponding combinations of overall dimensions:
9850/5300/1400/3150(mm)
9880/5300/1430/3150(mm)
9905/5300/1455/3150(mm)
8920/5300/1400/2220(mm)
8950/5300/1430/2220(mm)
8975/5300/1455/2220(mm)
9800/5300/1400/3100(mm)

2. Safety Configuration

(1) Protection Devices

The side protection is made of aluminum alloy, connected by bolts, which is stable and reliable.
The lower rear protection is made of Q235B, connected by bolts and welding. Its cross-sectional size is 120×60mm, and the height from the ground is 480mm, which effectively improves operation safety.

(2) Braking System

It is equipped with a variety of optional ABS systems, including 3631010-C2000 and ABS 8 from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., ABS-E 4S/4M from ZF Commercial Vehicle System (Qingdao) Co., Ltd., and J ABS from Jiaozuo Boruike Control Technology Co., Ltd., which can effectively improve braking stability.

3. Optional Configurations

A speed limiting device can be optionally installed, with a speed limit of 89km/h, which conforms to road driving regulations.
The upper installation style can be optionally selected, which can be flexibly chosen according to actual needs to meet the appearance and functional requirements of different operation scenarios.

4. Application Scenarios

With professional cleaning devices, stable performance and various size options, this vehicle is suitable for cleaning operations on various roads. It can efficiently deal with different road environments and provide reliable guarantee for road cleaning.
parameters:
Item ZBJ5181TSLD6
Energy type Diesel
Dimension(L x W x H) 9850,9880,9905,8920,8950,8975,9800×2550×3400,3450,3350,3270,3300(mm)
Chassis DFH1180EX8
Engine D6.7NS6B260
Curb Weight 14080,14500,13700(Kg)
Rated Loading 3790,3725,3370,3305,4170,4105(Kg)
Total Mass 18000(Kg)
Max.Speed 89,98(km/h)
Sweeping Width 2.5m
Sweeping Efficiency 93%
Maximum Sweeping Speed 20kmh
Maximum Inhaled Particles 110mm

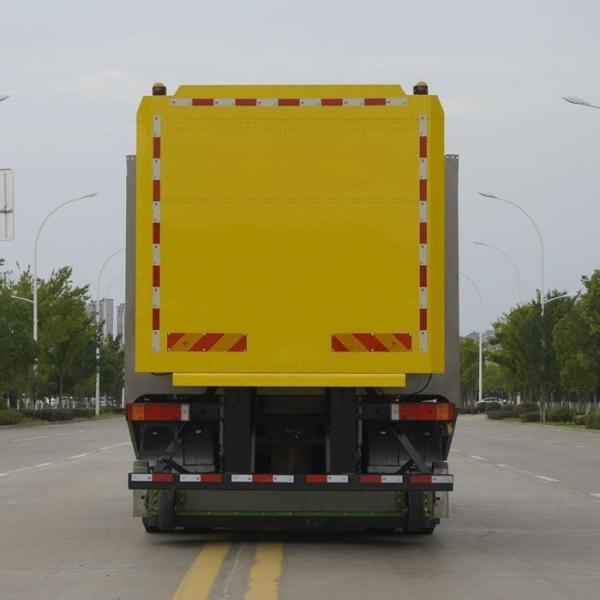

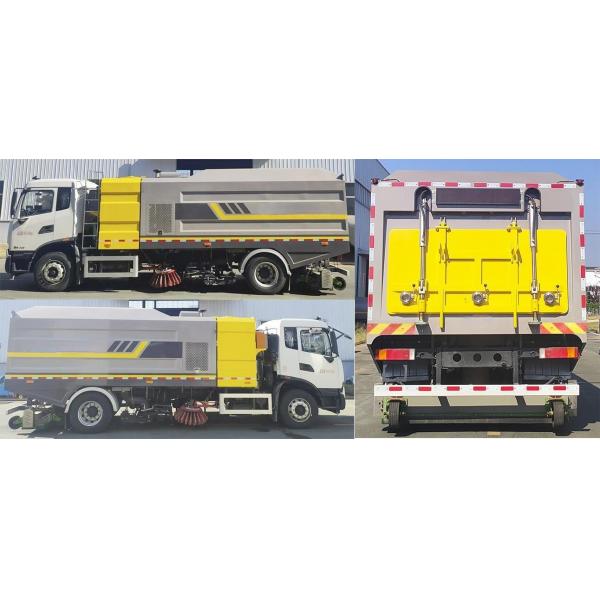

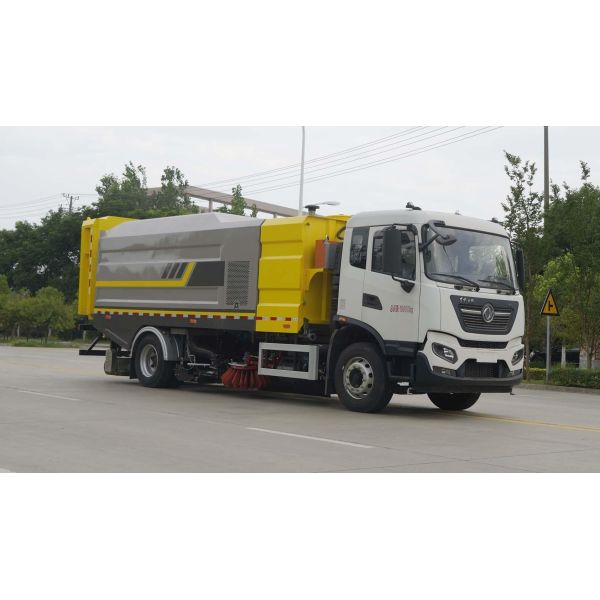

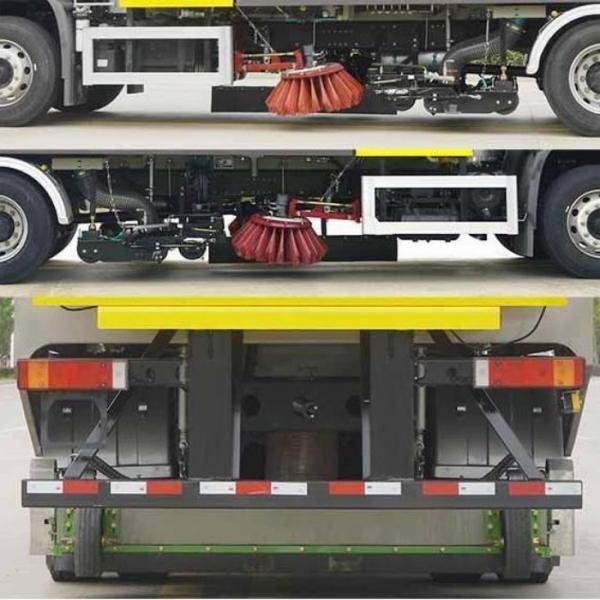

Actual photos
Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6
Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6
Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6

Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6

Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6Diesel Engine 18 Ton Road Sweeper Truck Sweeper Lorry ZBJ5181TSLD6
