Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5031CTYC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
2895-5690 usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
5700×1900×2020mm
Chassis :
EQ1035SJ16QC
Engine :
DAM16KLQ
Weight :
1825kg
Load Capacity :
1540kg
Chassis Total Capacity :
3495kg
Maximum Speed :
100km/h
Approaching/Departure Angle :
21°/17°
Front/Rear Overhang :
1190mm/1510mm
Axle Load :
1300kg/2195kg
Carriage volume :
18 standard 240L trash cans
Description

Open Type High Speed Trash Bin Truck Economic Customized Waste Collection Truck

Total Weight: 3495kg

Loading Capacity: 1540kg

Curb Weight: Includes fire extinguisher, tools, etc. Does not include spare tire.

Cargo Bed & Rails:

- Standard rail weight: 383.4kg; Optional rail

-free weight: 373.4kg. - Material: Q235.

- Thickness: Bottom and rear side plates 2mm; front and main side plates 1.5mm.

Use: Collects and transports barreled garbage with the carriage and hydraulic lift tailgate.

Tailgate: Stowed horizontal length 185mm; weight 195kg.

Cargo Bed Height: 600mm with optional rails; 360mm without rails.

Engine: Comes with DAM16KLQ and LJ4A15Q6 engines (with chassis).

Fuel consumption: 9.1L/100km for both. ABS System: Model APG3550500A;

Optional Features:

- Cab appearance (with chassis).

- ETC on-board device.

parameters

Item ZBJ5031CTYC
Energy Type Gasoline (92#)
Dimension 5700x1900x2020
Carriage Internal Dim. 3750X1840X360
Chassis EO1035SJ160C
Engine DAM16KLO
Curb Weight 1825 kg
Rated Loading 1540 kg
Total Mass 3495 kg
Max.Speed 100 km/h
App./Dep.Angle 21°/17°
Front/Rear Overhang 1190/1510 kg
Axle Load 1300/2195 kg
Rear Hyd.Tailboard Rated load 500kg,capable of loading 18,standard 240L trash cans

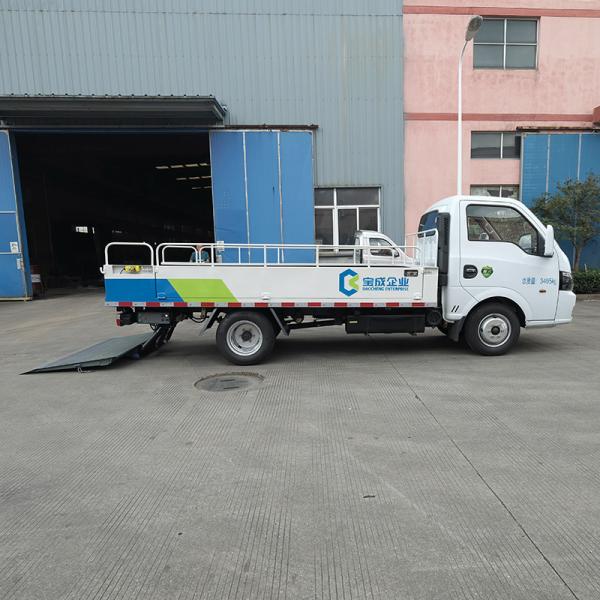

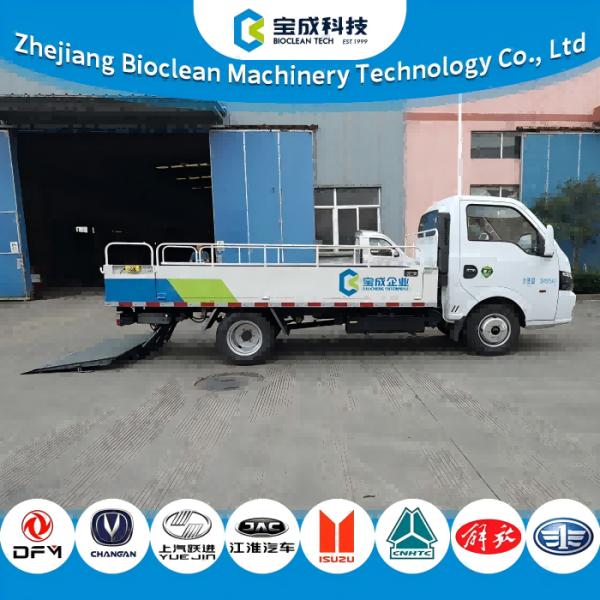

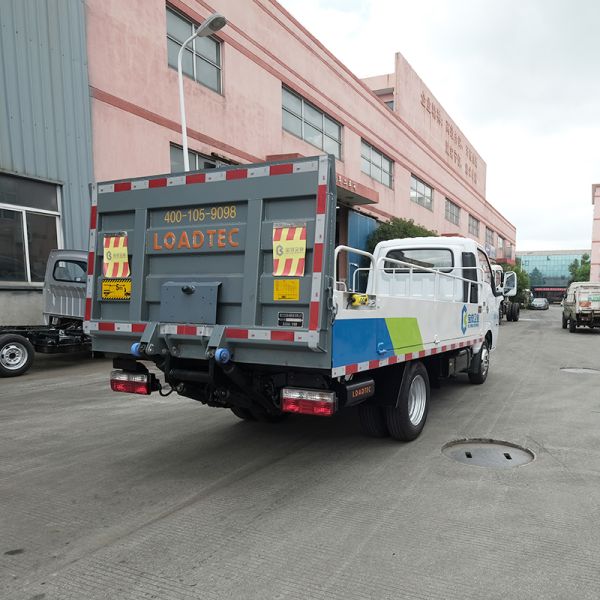

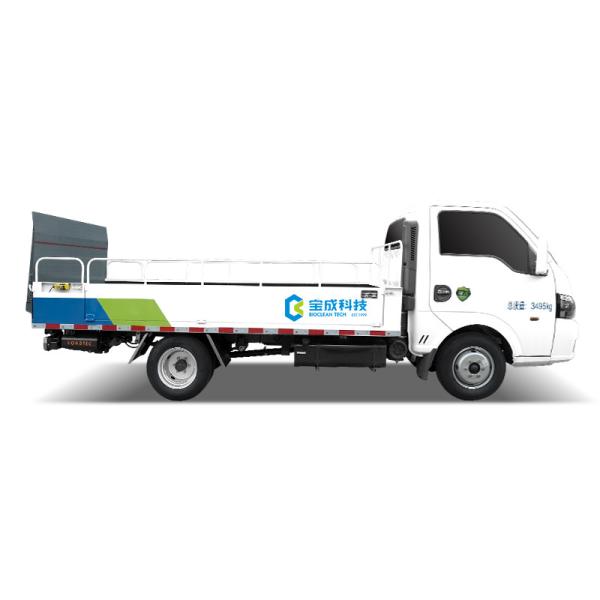

Actual photos

Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck

Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck

Open Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup TruckOpen Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
