9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5091GQX
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3170-6255usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5091GQX
Energy type :
Diesel
Dimension(L x W x H) :
6253,6493×2290×2940(mm)
Chassis :
EQ1095SJ8CD2
Driving Moto :
D2.5NS6B185H
Power :
184PS
Curb Weight :
5680(Kg)
Rated Loading :
3225(Kg)
Total Mass :
9100(Kg)
Max. Speed :
103(km/h)
App./Dep.Angle :
21/10,13/10(°)
Front/Rear Overhang :
1130/1815(mm)
Effective volume :
3.3m³
Description
ZBJ5091GQX 9.1TONS 3300L 3.3m³ diesel Fence guardrail cleaning truck
Core Parameters​

Weight: 9100Kg, stable for urban isolation guardrail cleaning.​

Size: 6253, 6493×2290×2940mm, fits urban road operations.​

Power: 184hp, strong for efficient cleaning.​

Load: 3225Kg, carries tools and water.

​

Devices & Use
​
Cleans urban isolation guardrails, with 3308mm wheelbase. Main device: guardrail cleaner (left/right telescoping, lifting). Tank: 3.3 total/3.2 effective m³, 2216×924×1714mm. Front has a (240mm extension), with optional front cleaner (for operation only).
​
Safety​

Side/rear protection: Q235A, bolted to frame. Rear: 120×60mm section, 345mm off ground.​

Has ABS/ASR-24V-4S/4M (Xiangyang Dongfeng) for stable braking. Rear arrow light (used during operation).​

Options​

No front pendant (approach angle 21°, length 6253mm; pendant weight error ≤3%).

Add liquid level gauge, direct power ETC. Chassis engine options: YCY30165-60, NV30-C6G, etc.

​

Uses​
Ideal for urban isolation guardrails. Adjustable cleaner, good power/size, cleans efficiently, keeps guardrails tidy, aids urban roads.
parameters:
Item ZBJ5091GQX
Energy type Diesel
Dimension(L x W x H) 6253,6493×2290×2940(mm)
Chassis EQ1095SJ8CD2
Driving Moto D2.5NS6B185H
Power 184ps
Curb Weight 5680(Kg)
Rated Loading 3225(Kg)
Total Mass 9100(Kg)
Max.Speed 103(km/h)
App./Dep.Angle 21/10,13/10(°)
Front/Rear Overhang 1130/1815(mm)
Effective volume 3.3m³

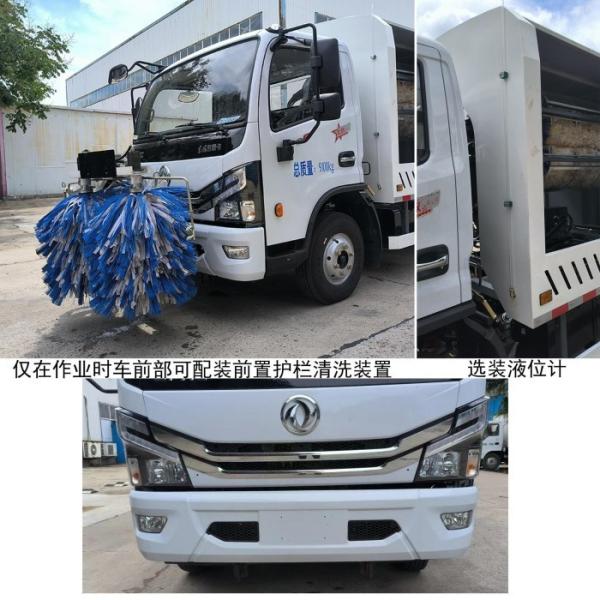

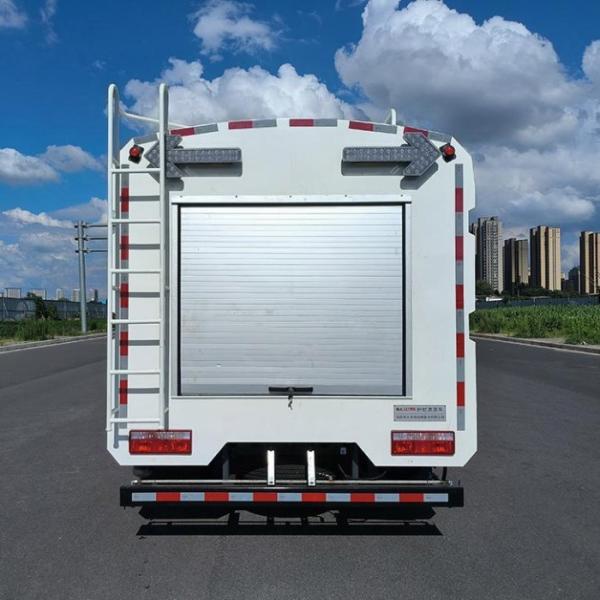

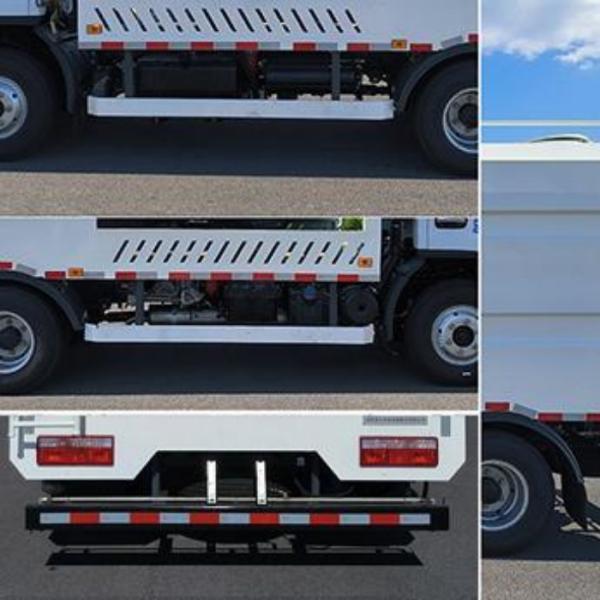

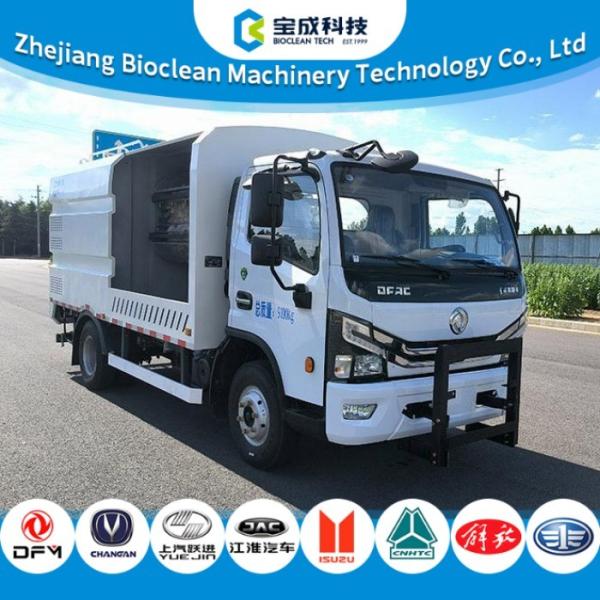

Actual photos
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
Product Advantages
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power

Two-way cleaning: The truck can clean guardrails on both sides of the road at the same time, no need to turn around. This makes work faster. It’s good for city roads and highways, saving time and labor.

Smart monitoring: It has clear cameras and a real-time system. Drivers can see how the cleaning parts work and the surroundings from the cab, keeping work safe. They can also change cleaning settings to get the best results.
Two-way cleaning and smart control make work faster, cutting down time. The truck can drive and clean together—no need for other tools. It’s easy to use.
Rotating brushes, high-pressure water, and a flexible arm clean guardrails deeply. They remove all dust and tough stains, making guardrails look new.
It meets car licensing rules and passes strict safety checks. The strong chassis, safety devices, and smart monitoring keep drivers and the truck safe during work.
 9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
Actual photos
9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power

9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power

9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power9.1TONS 3300L 3.3m3 Guardrail Cleaning Truck Diesel Powered High Power
