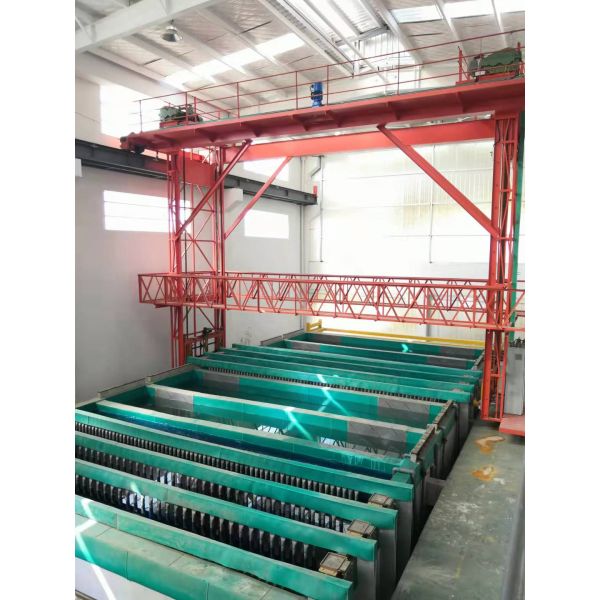

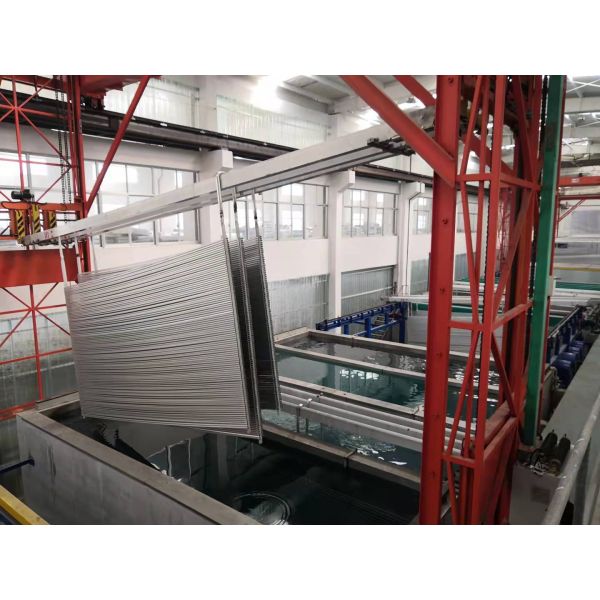

Aluminum Anodizing Machine for Aluminum Profile Production Line

Anodizing Machine for Aluminum Profile Production Line Content: 1 dregreasing tank, 1 alkali etching tank ,1 neutralization tank,4 anodic oxidation tank,2 anodizing flow tank,3 electrical coloring tank,1 Mid.Temperature sealing tank, 12 rinsing tanks,1 hot water rinsing tank.

Anodizing rectifier:

1, output current grade: 10000A

2,current precision:+-1%

3,soft start output: 0~180s

4, adjustable close time control: 0~99s

5, anodizing time: adjustable

Anodizing Coloring rectifier:

1, coloring time: adjustable

2, output AC current waveforms: asymmetric waveform

Spring loaded copper seat:

1, size: 210*230(+-2mm)

2,anti acid rubber sheet, stainless steel seat

Pure copper soft conencting:

1, size:500*47*10mm(+-2mm)

2,T2 copper, copper ratio more than 99.5%, electricity conductivity: more than 98%

Copper aluminum composite board:

1, size:150*100*25mm(+-2mm)

2,copper: 10mm, aluminum:15mm

3, pure purple copper, smooth surface,good electricity conductivity

Bubbles bag:

1, size: 170*2850mm

2, material: 750B

Aluminum conductive bar:

1, size: 10*200mm

2, material: pure aluminum

Aluminum beam and connection bar:

1, anode bar

2, size: 70*180*8800mm(with beam hoist

Anodizing conductive bar:

1, anodizing tank conductive bar

2, size: 140*10*3000mm

3,material:pure aluminum

Coloring conductive bar:

1, size:1.2*150*3000mm

2, material: 316L stainless

Cooling system:

1,550000Kcal

2, power: 127kw

3,size:4600*1500*1850mm

Cooling tower:200T

Circulation system:

Anodizing circulation system: 316L50 m2 heat exchanger

Coloring circulation system: 316L30 m2 heat exchanger

Sealing tank heating controlling system:

SUS316L temperature sensor

Tank holding rack:1set

Plant water drain pipeline: 1set

Anodizing air exhaust system:1set

Etching tank, air exhaust system:

flow:12000~22000m3/h

1+1 anodizing crane:1set
