Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Specifications
Brand Name :
Realkey
Model Number :
RKSORT-CBS
Certification :
CE/EAC/UL/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10000/Piece
Payment Terms :
L/C,T/T,D/P
Custom Order :
Accept
OEM/ODM :
Accept
Fatory :
Direct Factory With Own Exporting Platform
Feature :
Flexible sorting of multiple sizes and directions
Description
Easy Maintain Cross Belt Sorter Conveyor For Postal And Express Delivery
Custom Order: Accept
OEM/ODM: Accept
Factory: Direct Factory With Own Exporting Platform
Feature: Flexible sorting of multiple sizes and directions
Regional Distribution Centers Cross Belt Sorter Lower Operational Costs

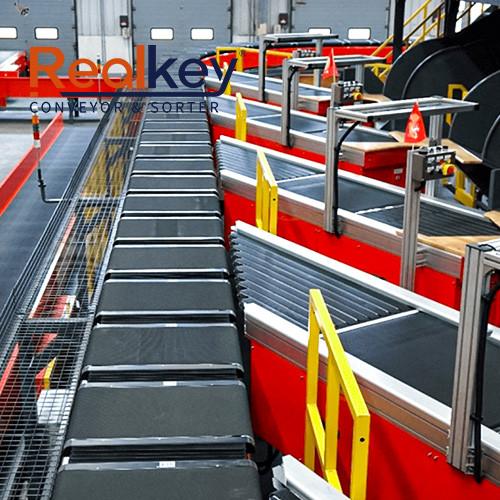

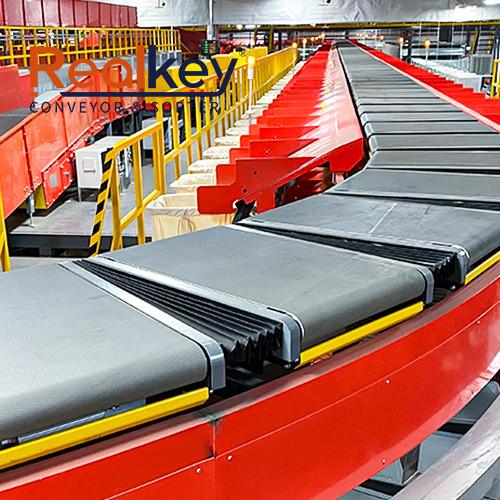

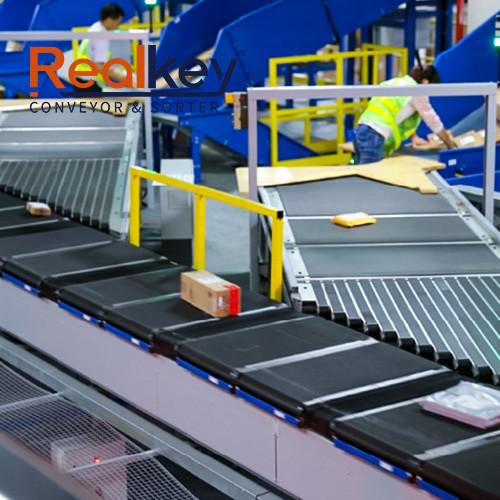

The Realkey Cross Belt Sorter is a high-performance system for efficient parcel and carton sorting. It integrates tracks, carts, cross-aligned belts, recognition, and communication systems into a seamless operation. Carts move along the track with perpendicular belts (hence "Cross Belt") to transport items, which can be loaded either manually or automatically. At sorting stations, the belts activate for precise item delivery.

Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Technical Parameters
Equipment Name Circular Cross Belt Sorter Linear Cross Belt Sorter Linear Cross Belt Sorter
Model CBS-600C CBS-500L CBS-300L
Sorted Items Various parcels, cartons, clothing, books, etc.
Cart Pitch 600mm 500mm 300mm
Sorting Accuracy 99.99%
Sorting Efficiency 22,000 pcs/hour 6,000 pcs/hour 8,000 pcs/hour
Feeding Method Manual loading / Automatic loading from feeding station
Sorted Goods Size MAX: 700×600×500mm
MIN: 150×150×8mm
Scanning Method Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight 0.03kg ≤ W ≤ 20kg 0.03kg ≤ W ≤ 20kg 0.1kg ≤ W ≤ 30kg
Operating Speed 2.0m/s 1.5m/s 1.5m/s
Operating Noise ≤72dB(A)
Efficient Intelligent Conveyor Line Sorting System Parcel Conveyor Systems
Applications
Postal and Express Delivery: Ideal for regional centers, transfer hubs, and major postal/courier branches with high-volume sorting requirements
E-Commerce and Global Trade: Perfect solution for peak season demands in fashion, tobacco, maternity products, grocery, and pharmaceutical industries
Key Advantages
  • Intelligent Vision Systems: Advanced tracking technology isolates faulty carts to prevent sorting errors with real-time alerts
  • Enhanced Cart Linkage Technology: Optimized algorithms for single or dual cart configurations handling items up to 1.2 meters
  • Automated Maintenance Management: Interface-controlled routing to maintenance zones minimizes manual intervention
  • Proven Durability: 18 years of logistics expertise ensures reliable, long-lasting sorting solutions
