Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Specifications
Brand Name :
Realkey
Model Number :
RKSORT-SWS
Certification :
CE/EAC/UL/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10000/Piece
Payment Terms :
L/C,T/T,D/P
Custom Order :
Accept
OEM/ODM :
Accept
Fatory :
Direct Factory With Own Exporting Platform
Feature :
Breaking the limitation of manual sorting of large and irregular items
Applicable Industries :
Manufacturing Plant, Warehouse, Logistics companies, Parcel sorting
Warranty :
1 Year
After-sales Service :
24-hour Customer Service Online
Application :
logistic,warehouse
Description
Logistic Sorted Machine Parcel Sorting Equipment DWS System Swivel Wheel Sorter
Custom Order
Accept
OEM/ODM
Accept
Factory
Direct Factory With Own Exporting Platform
Feature
Breaking the limitation of manual sorting of large and irregular items
Applicable Industries
Manufacturing Plant, Warehouse, Logistics companies, Parcel sorting
Warranty
1 Year
After-sales Service
24-hour Customer Service Online
Application
logistic, warehouse
Product Overview

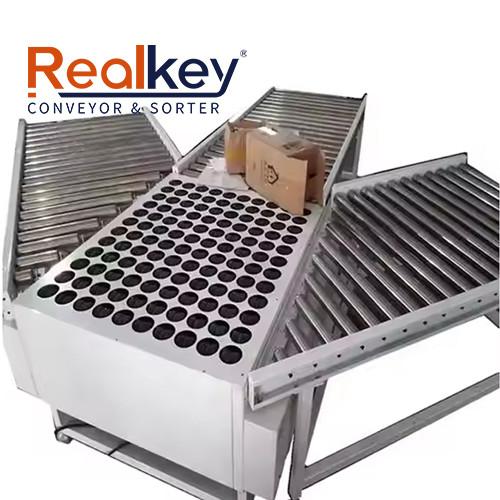

The Realkey Swivel Wheel Sorting Machine, also known as the Divert Wheel or Rotating Wheel Sorter, is a cutting-edge solution for sorting parcels and cartons in conveyor systems. Comprising an electric drum (wheel), a steering system, a control module, and a sturdy frame, it moves items through drum rotation. Servo motors and steering units adjust the drum's direction to divert items left or right.

Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Technical Parameters
Model SWS-10M SWS-12H
Sorted Items Medium to large parcels, woven bags, flexible packages, etc.
Weight Range 0.2kg≤M≤50kg 0.2kg≤M≤50kg
Sorting Capacity 4000 pieces per hour 6000 pieces per hour
Parcel Size Range MAX:1000*1000*700mm (Example for a 1-meter wide device)
MIN:150*150*30mm
Sorting Success Rate 99.99%
Sorting Modes Single-sided sorting / Double-sided sorting
Electric Drum Size Drum length 85mm * Drum diameter 70mm
Conveying Speed 1-1.5m/s 1.2-2m/s
Number of Swing Mechanisms Not less than 2 Not less than 5
Parcel Spacing 800mm 400mm
Operating Noise ≤72dB(A)
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Product Features
Versatility: With a flat surface of rubber-coated electric rollers, the sorter ensures wide, flexible contact, enabling precise sorting of varied items like apparel, books, cartons, and soft packages with efficiency.
Efficient Sorting: Powered by electric rollers, it offers high load capacity, quiet performance, and rapid operation. By simplifying traditional mechanisms, it boosts productivity, achieving 6,000 items per hour, ideal for high-demand logistics environments.
Compact Structure: Its straightforward, stable design reduces failure rates. Articulated bearings connect steering components, allowing fine-tuned angle adjustments. Servo motors provide swift, responsive steering, with independent modules requiring minimal sorting signals.
Quick Installation and Removal: The sorter's single-group swing wheel and single-row modules use a modular design, detaching easily from transmission parts for quick assembly and simple maintenance.
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
Applications

The swivel wheel sorter streamlines sorting for clothing, books, boxes, and soft packages, ensuring smooth workflows. It's a key asset in:

Express delivery and logistics hubs
Warehouses and distribution centers
E-commerce order processing
Manufacturing material organization
Healthcare, food processing, and renewable energy sectors
Key Advantages
Advanced Technology: Smart control system with sensors to manage start-stop functions based on package arrival, optimizing energy use. Servo-driven sorting delivers fast, accurate angle control.
Precision Manufacturing: CNC-machined parts and meticulous assembly guarantee high accuracy, durability, low noise, and reduced maintenance.
Safety and Stability: Designed for robustness with advanced industry standard safety features throughout.
Reliability: 18 years of logistics automation expertise ensures durable, dependable sorting solutions.
Compact Structure Dws Wheel Sorter Efficient Versatile For Warehouse
