Straddle Legs Electric Pallet Stacker 1200kg With Adjustable Forks Customized Color
Straddle Legs Electric Pallet Stacker 1200kg With Adjustable Forks Customized Color
Specifications
Brand Name :
REACH
Model Number :
CTD12R-E
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet
Capacity :
1200kg
Max. lifting height :
1600/2500/3000mm
Color :
Yellow or customized
Mast height lowered :
2145/1895/2145mm
Mast height extended :
2145/3100/3600mm
Width overall forks :
200-800mm
Lifting speed, laden/unladen :
0.12/0.22m/s
Lowering speed, laden/unladen :
0.14/0.14m/s
Description

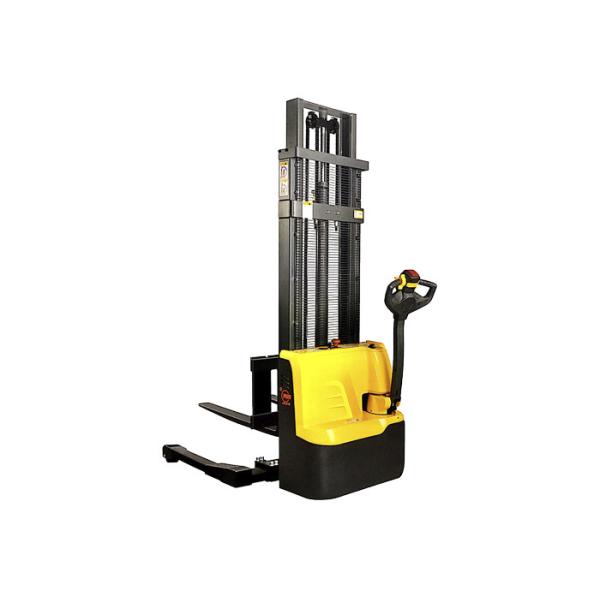

Walkie straddle legs electric pallet stacker 1200kg with adjustable forks


Quick Details:

Description: Straddle all-electric pallet stacker CTD12R-E
Capacity: 1200kg
Max. lifting height: 1600/2500/3000mm
Fork dimensions: 40/100/1070(1150)mm

Aisle width for pallets: 2280mm
Lifting speed, laden/unladen: 0.12/0.22m/s

Lowering speed, laden/unladen: 0.14/0.14m/s

Service weight: 499/555/575kg


Advantages:​​​​

  • Under rated load, it can be easily operated on the 5% ramp.
  • The electric pallet stacker is compact, flexible, and has good mobility. It can also work efficiently and freely in the narrow space.
  • The handle is equipped with a turtle speed switch, and when the handle at the upright position the electric stacker can walking too.
  • Equipped with built-in charger, easy to charge.
  • With the adjustable balance wheel, the electric pallet stacker runs smoothly and there is no shaking.
  • With good shockproof effect, the balance wheel assembly is removable, convenient for maintenance.
  • ​CURTIS tiller head
  • ​4 point design, improves the electric pallet stacker stability.
  • Floor type drive wheel.

Straddle Legs Electric Pallet Stacker 1200kg With Adjustable Forks Customized Color

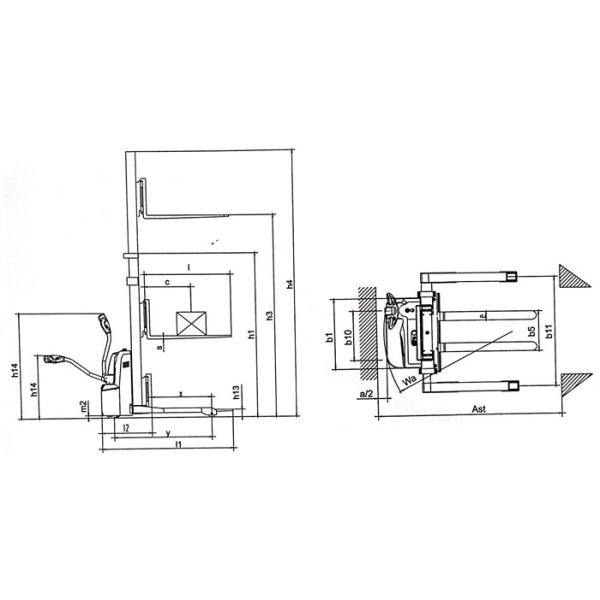

SPECIFICATIONS OF ELECTRIC WALKIE STRADDLE STACKER
Model CTD12R-E

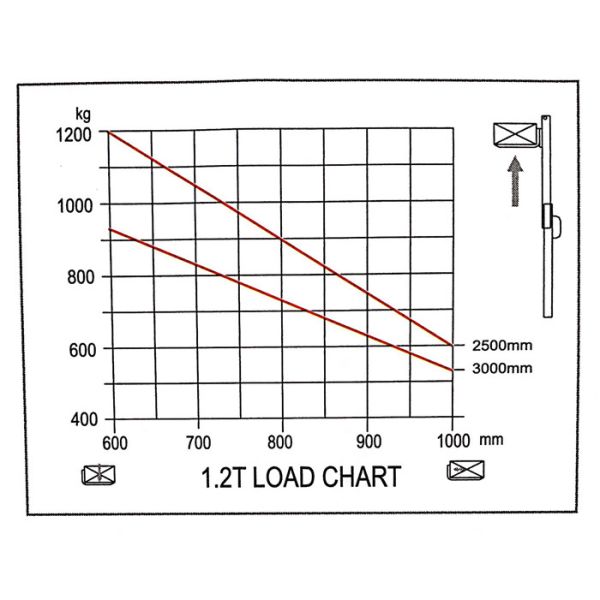

Load capacity kg 1200
Load center distance mm 600
Load distance, centre of drive axle to fork mm 770
Height, lowered mm 80
Tyre size, front mm 195*70
Tyre size, rear mm 98*82
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 2145/1895/2145
Max. lifting height mm 1600/2500/3000
Height, mast extended mm 2145/3100/3600
Height of tiller in drive position min./max. mm 670/1300
Overall length mm 1500
Length to face of forks mm 660
Overall width mm 1132-1532
Fork dimensions mm 40/100/1070(1150)
Width overall forks mm 200-800
Ground clearance, centre of wheelbase mm 35
Aisle width for pallets 1000*1200 crossways mm 2280
Aisle width for pallets 800*1200 lengthways mm 2280
Turning radius mm 1490
Travel speed, laden/unladen km/h 5/6
Lift speed, laden/unladen m/s 0.12/0.22
Lowering speed, laden/unladen m/s 0.14/0.14
Battery V/Ah 24/105
Service weight kg 490/555/575

Straddle Legs Electric Pallet Stacker 1200kg With Adjustable Forks Customized Color

Straddle Legs Electric Pallet Stacker 1200kg With Adjustable Forks Customized Color
