Stand On 1 Ton Narrow Aisle Truck 6200mm Height With Hydraulic Steering System
Stand On 1 Ton Narrow Aisle Truck 6200mm Height With Hydraulic Steering System
Stand On 1 Ton Narrow Aisle Truck 6200mm Height With Hydraulic Steering System
Stand On 1 Ton Narrow Aisle Truck 6200mm Height With Hydraulic Steering System
Specifications
Brand Name :
REACH
Model Number :
CQD10L
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
1000kg
Operate type :
Standing
Max. lifting height :
3000/5000/6200mm
Drive wheel :
280*100mm
Fork wheel :
250*80mm
Reach distance :
600mm
Travel speed, laden/unladen :
7/7.2km/h
Description

Stand on electric reach truck narrow aisle truck with 1ton capacity 6200mm height

Quick Details:

Product name: Stand on Narrow aisle truck mast reach type CQD10L

Capacity: 1000kg​

Max. Lifting height: 3000/5000/6200mm

Reach distance: 600mm

​Free lift: ~ /1700/2100mm

​Fork dimension: 35/100/1070mm

​Travel speed, load/unload: 7/7.2km/h​​

Lift speed, load/unload: 0.19/0.2m/s

​Lowering speed, load/unload: 0.5/0.4m/s

​Aisle width for pallets 1000*1200 crossways: 2740mm

Aisle width for pallets 800*1200 lengthways: 2850mm

Turning radius: 1700mm

Battery: 48V400AH

Advantages:

  • ​​​Equipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.

  • Full hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.

  • Integrated driving and turning systems.

  • Stand on operation type.

  • Capacity 1000kg.

  • ​Max. Lifting height 3000mm to 6200mm.

  • A fully hydraulic steering system ensures flexible turning, and requires less maintenance.

  • Optional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.

Option:

  • AC power system.

  • Joystick hydraulic controller.

  • LCD display and camera.

  • Height selection and height position system.

Stand On 1 Ton Narrow Aisle Truck 6200mm Height With Hydraulic Steering System

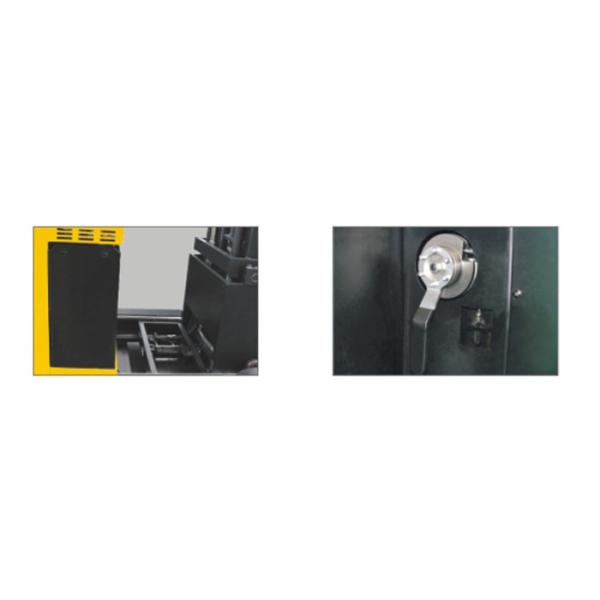

Oil tube inside of the mast with clean With battery handle controller can

wire communications. automatically remove out battery box.

SPECIFICATIONS OF STAND ON NARROW AISLE TRUCK
Model CQD10L
Power battery
Operate type standing
Capacity/rated load kg 1000
Lifting height mm 3000/5000/6200
Load center distance mm 500
Drive wheel mm 280*100
Fork wheel mm 285*80
Tilt of mast/fork carriage forward/backward Grad 3,5(mast)/3,5(forks)/3,5(forks)
Height, mast lowered mm 2086/2240/2640
Free lift mm ~ /1700/2100
Height, mast extended mm 3800/5800/7000
Height of overhead guard(cabin) mm 2200
Seat height/stand height mm 295
Height of crura mm 270
Overall length mm 2360
Length(barring fork) mm 1700
Overall width mm 1020
Fork dimensions mm 35/100/1070
Reach distance mm 600
Aisle width for pallets 1000*1200 crossways mm 2800
Aisle width for pallets 800*1200 lengthways mm 2850
Turning radius mm 1700
Travel speed, laden/unladen km/h 7/7.2
Lift speed, laden/unladen m/s 0.19/0.2
Lowering speed, laden/unladen m/s 0.5/0.4
Battery V/Ah 48/400
Service weight kg 2140/2540/2640
